Description
FA 20 STRAINER FOR TEA85TEAT85TEAV8

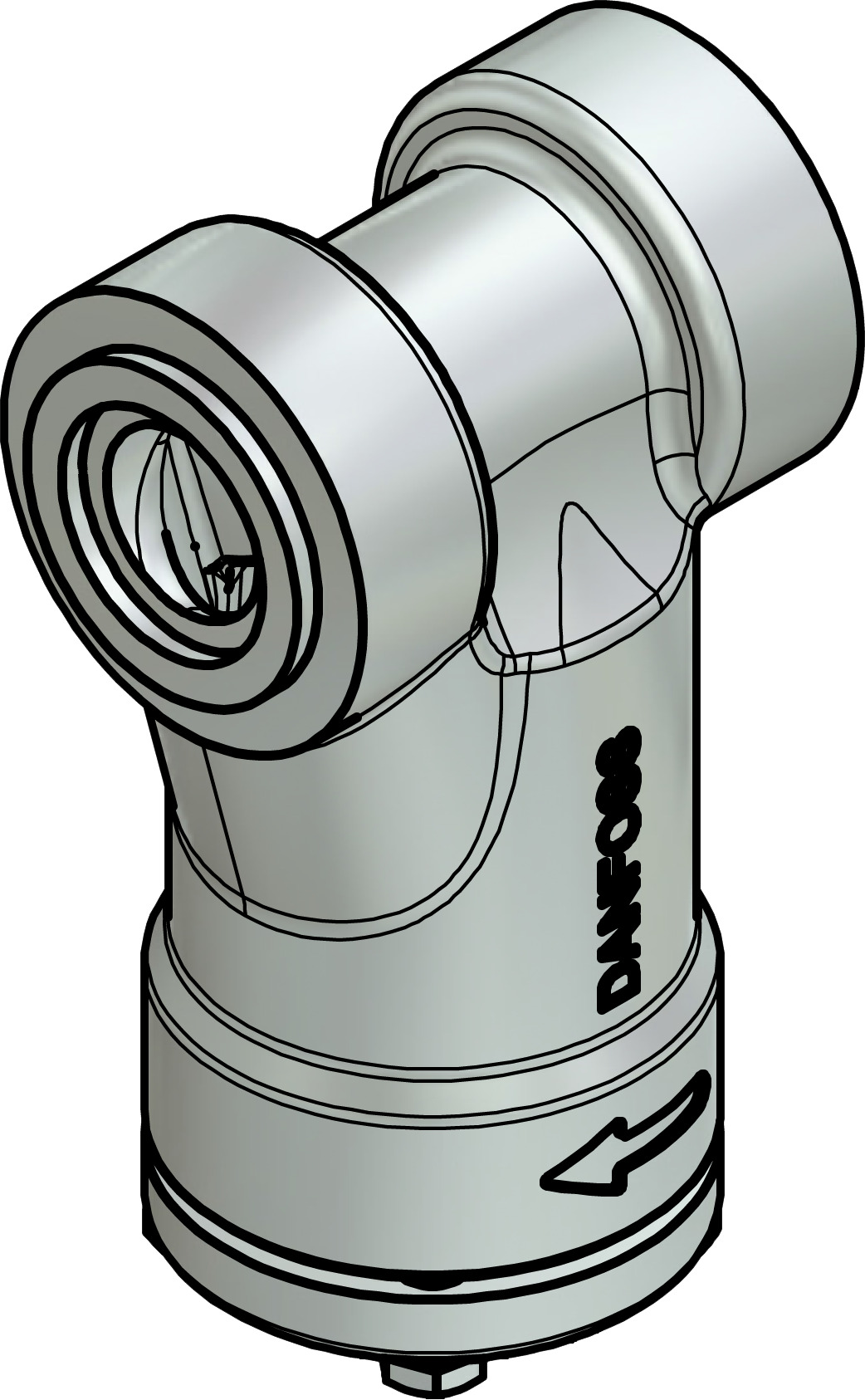

Danfoss FA 20 Strainer to suit TEA85,TEAT85,TEAV8
Product number:
006-0048
| Product Group : | Industrial Controls - Filtration |
|---|
General
| Product Group : | Industrial Controls - Filtration |
|---|
General Information
| Parts Included : | Bolts, Gaskets, Screws | Type : | FA 20 |
|---|---|---|---|
| Used For : | TEA 85, TEAT 85, TEVA 85 | Weave Fineness : | 100 Mesh, 150 µm |
Kv Values
| Kv Value : | 7.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84213925 | Country Of Origin : | CHN |
|---|
Material
| Connection Material : | Steel |
|---|
Measurements
| Staybolt Size : | M12x206 | Weight : | 1.90 kg |
|---|
Pressure
| Max Operating Pressure : | 28.0 Bar | Max Test Pressure : | 42.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R23, R32, R113, R114, R125, R134a, R152a, R227ea, R236fa, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R444B, R447A, R448A, R449A, R449B, R450A, R452A, R454B, R455A, R502, R503, R507A, R513A, R717, R1233zd(E), R1234yf, R1234ze(E), R1336mzz(Z) |
|---|
Strainers
| Strainer Area : | 9.3 in², 60 cm² | Strainer Volume : | 8.85 in³, 145 cm³ |
|---|
Temperature
| Temperature Range : | -50-140 °C |
|---|
Valves
| CV Value : | 8.120 gal/min | Fluid Group : | 1 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| strainer-fa-15-20-25-ast-an10278641518902-000101.pdf | Installation Manual | 364.76 KB | |
| data-sheet-strainers-type-fa-ast-ai174186419498en-000501.pdf | Technical Literature | 1.22 MB |
Spare Part
Product Number: 006-0332
Manufacturer Code: 006-0332
