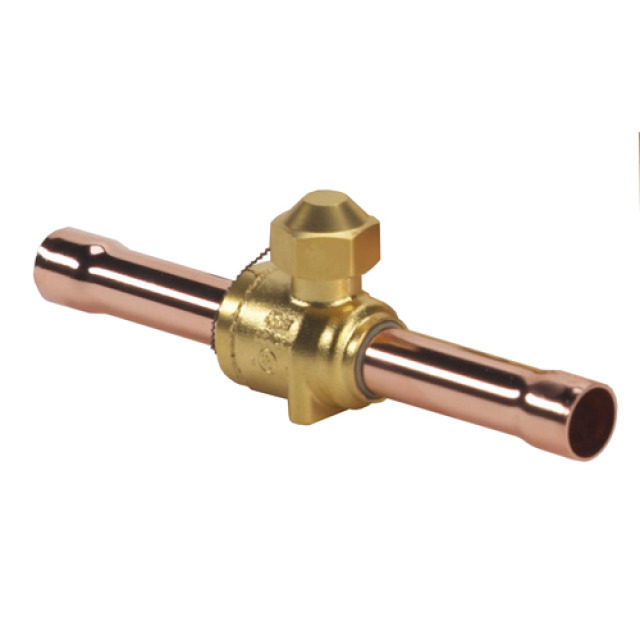

Danfoss - Ball Valve 3/8 ODS W/O Access (009G7021)

Product number: 009L7021
PLEASE LOGIN TO SEE PRICES
Product Group : Ball Valves - Danfoss
Description

Danfoss shut-off ball valves, type GBC, are manually operated shut-off valves for refrigeration systems, in order to open and to shut off inner flow path by operating the valve
spindle.
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air
conditioning systems. The GBC bi-directional ball valves can be delivered with or without external access port. The valves have one-piece wire seal cap to prevent unintentional cap removal or tampering between services.
Features:

  • ¼ turn from fully open to fully closed
  • Rotation stops at fully open and fully closed
    positions
  • Ball status indicator on spindle top indicating
    open or closed position
  • Double O-ring stem seal design
  • Customized brass material ensures consistent
    performance under aggressive environment
  • Rupture proof, internally-loaded spindle
    design ensures safe operation under extreme
    pressures
  • Bi-directional flow, valve orientation is
    unimportant
  • Full port construction to match line size
  • Drilled and tapped for panel mounting
  • Versions with access port helps in reducing
    cost if service of the system is necessary
Product Group : Ball Valves - Danfoss
Family : GBC v2
Connection Size : 3/8 in Connection Type : Solder, ODF
Inlet Connection Size : 3/8 in Inlet Type : Solder, ODF
Outlet Connection Size : 3/8 in Outlet Type : Solder, ODF
Equipment : Cap w. wire seal Model Number : 009L7021
Type : GBC 10s
Kv Value : 8.040 m³/h
Commodity Code : 84818081 Country Of Origin : CHN
EAN : 5702428515801 Gross Weight : 0.184 kg
Body Material : Brass Connection Material : Copper
Net Weight : 0.13 kg Weight : 0.13 kg
Max Operating Pressure : 45.0 Bar Test Pressure : 65 Bar
Refrigerant : R22/R407C, R32, R134a, R290, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E)
Approval : CE, C UL US LISTED, EAC, UKCA
Max Temperature : 150 °C Medium Temperature Range Note : 100°C-150°C for short term use
Min Temperature : -40 °C Temperature Range : -40-150 °C
Access Port : No CV Value : 9.300 gal/min
Direction : Straightway Flow Direction : Bi-flow
Flow Direction Indicator : Embossed 2-way arrow
