Description
RT107 Thermostat M/15

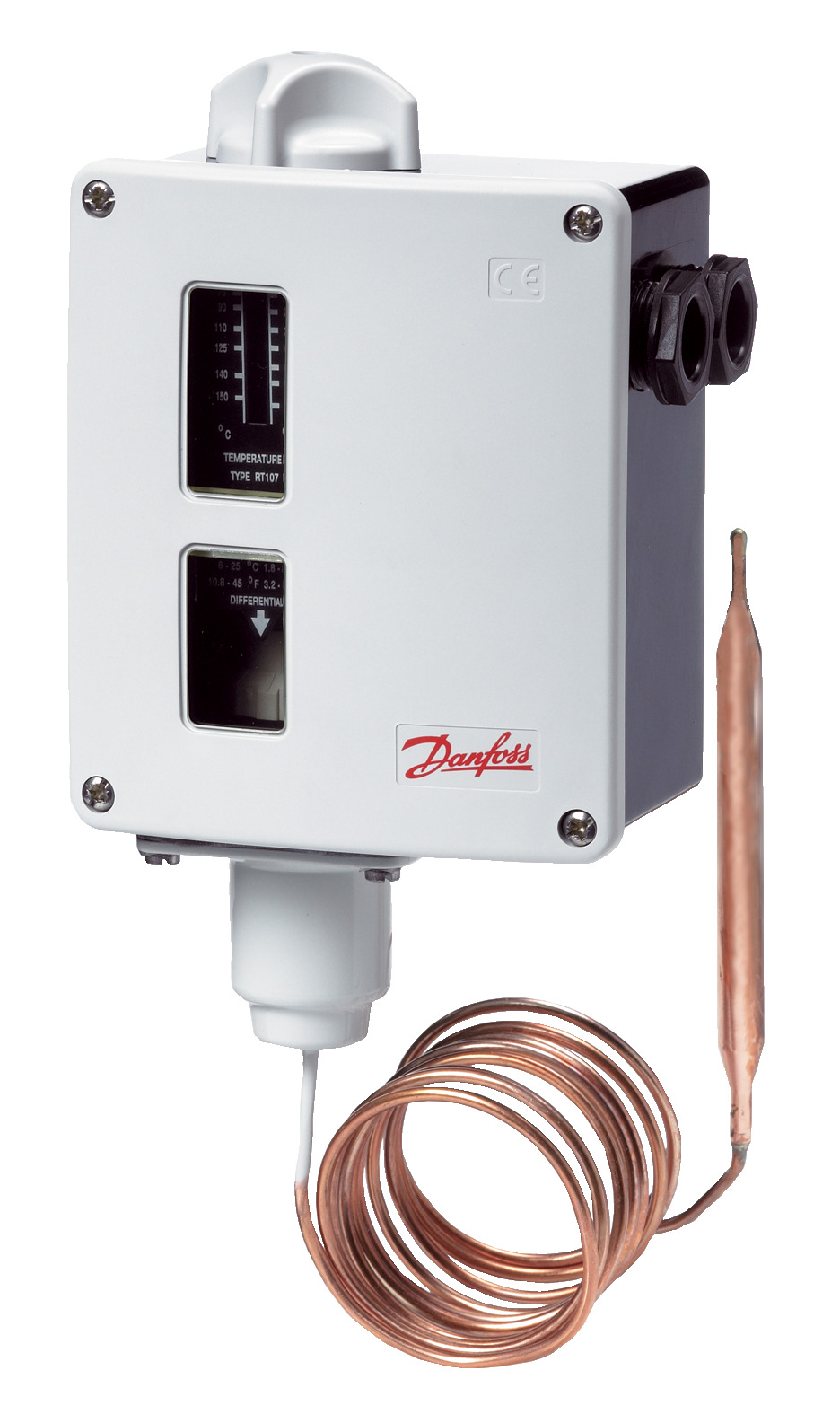

RT107 Thermostat 70-150C AR / 2m Cap
Product number:
017-513566
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info
| Family : | RT |
|---|
Electrical
| Contact Function : | SPDT | Contact Rating AC1 : | 10 A, 400 V |
|---|---|---|---|
| Contact Rating AC3 : | 4 A, 400 V | Contact Rating AC15 : | 3 A, 400 V |
| Contact Rating DC13 : | 12 A, 220 V | Contact Rating LR : | 28 A, 400 V |
| Electric Connection : | Female Screwed cable entry | Electric Connection Size : | 2xPg13.5 |
| Flex, Ferrules : | 0.2 - 1.5 mm² | Flex, No Ferrules : | 0.2 - 2.5 mm² |
| IP Class : | IP66 | Rated Impulse Voltage : | 4 kV |
| Solid/Stranded : | 0.2 - 2.5 mm² |
General Information
| Charge Type : | Partial | Model Number : | 17513566 |
|---|---|---|---|
| Type : | RT107 |
Logistical Information
| Commodity Code : | 90321080 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702423119615 | Gross Weight : | 0.956 kg |
Measurements
| Capillary Tube Length : | 78 3/4 in, 2000 mm | Net Weight : | 0.87 kg |
|---|
Pressure
| Diff Type : | Adjustable |
|---|
Sensors
| Sensor Pocket Length Min : | 4 13/32 in, 112 mm | Sensor Size (Diameter x Length) : | 9.5x110 mm |
|---|---|---|---|
| Sensor Type : | Remote bulb |
Standards
| Approval : | CCC, CE, CMIM, DNV, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -50-70 °C | Max Sensor Temperature : | 215 °C |
|---|---|---|---|
| Temperature Range : | 70-150 °C |
Temperature Control & Settings
| Diff at Max Range Setting : | 1.8-8.0 °C | Diff at Min Range Setting : | 6.0-25.0 °C |
|---|
