Description
RT260A Diff. Pressure Switch M/9

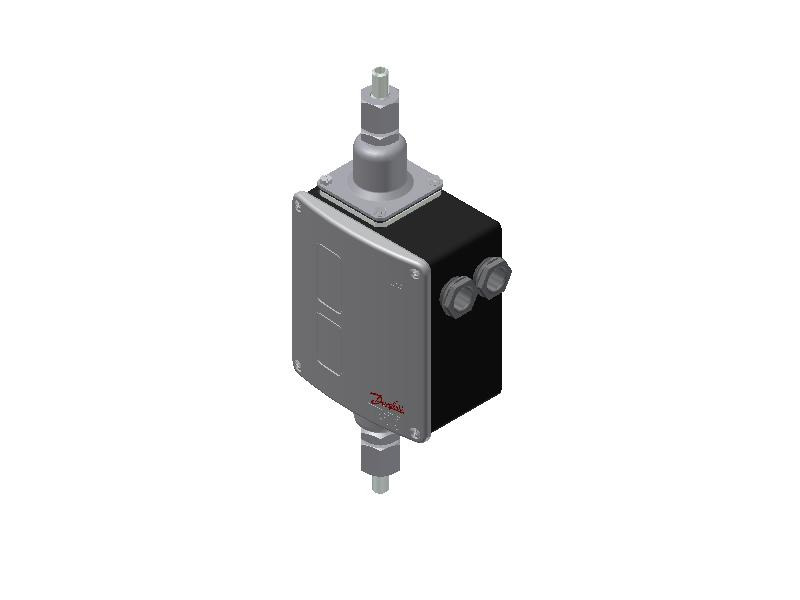

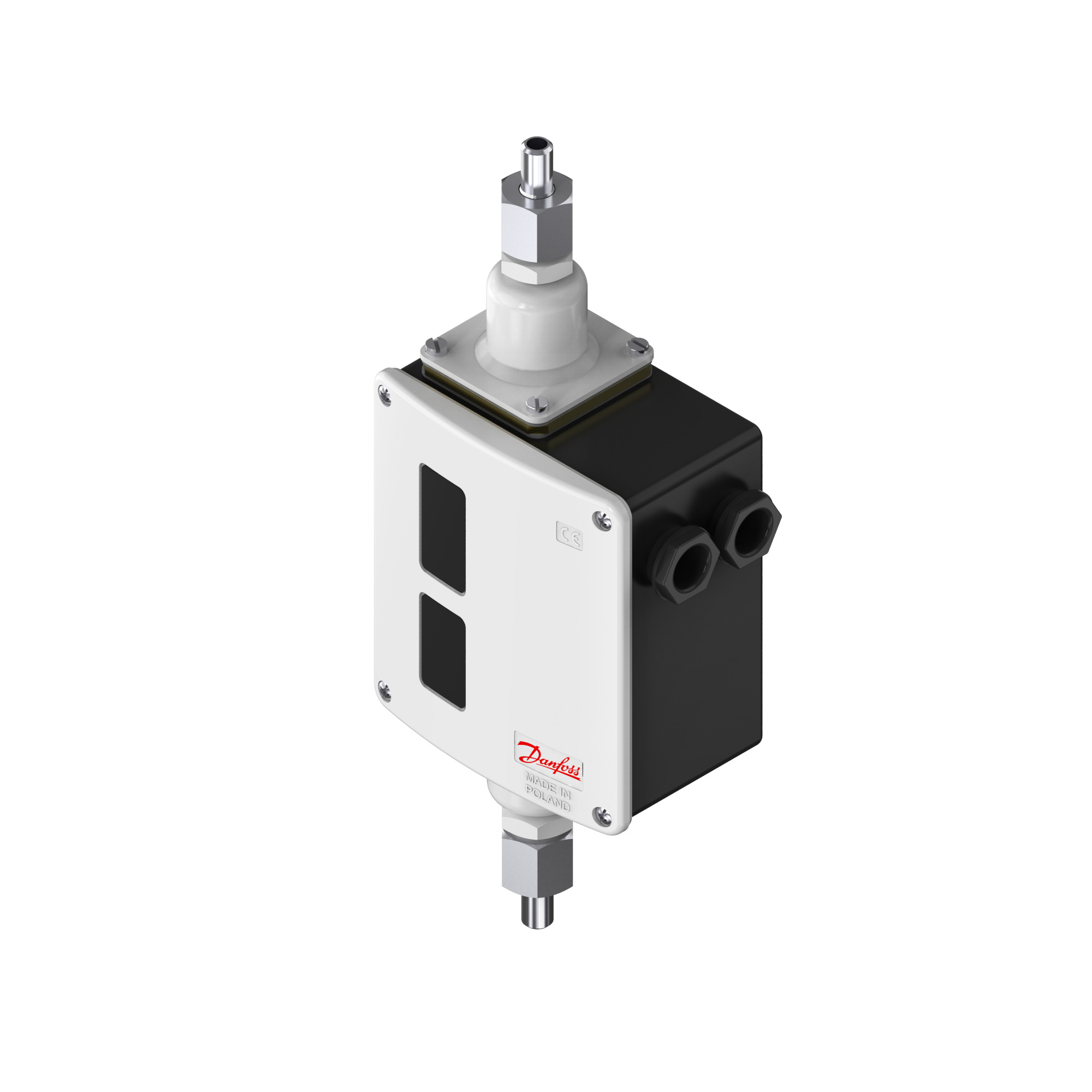

Differential pressure switch, RT260A
Product number:
017D002166
| Product Group : | Mech Controls - Pressure |
|---|
General
| Product Group : | Mech Controls - Pressure |
|---|
Additional Info
| Family : | RT |
|---|
Connections
| Connection Size : | 3/8 in | Pressure Connection Size : | 3/8 in |
|---|---|---|---|
| Pressure Connection Type : | G |
Electrical
| Contact Function : | SPDT | Electric Connection : | Female Screwed cable entry |
|---|---|---|---|
| Electric Connection Size : | 2xPg13.5 | IP Class : | IP66 |
General Information
| Type : | RT260A |
|---|
Logistical Information
| Commodity Code : | 90322000 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428042840 | Gross Weight : | 1.27 kg |
Measurements
| Weight : | 1.02 kg |
|---|
Pressure
| Diff Pressure Range : | 0.50-4.00 Bar | Max Operating Pressure : | 22.0 Bar |
|---|
Standards
| Approval : | CCC, CE, CMIM, EAC, KR, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -50-70 °C |
|---|
