Description
BE024AS

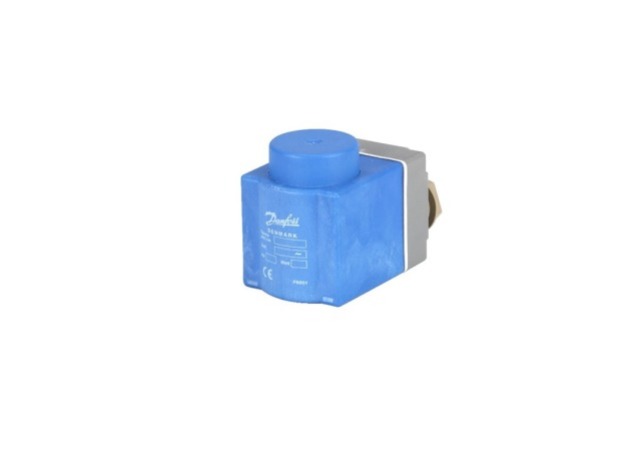

Danfoss 24VAC 12w Solenoid Coil
Product number:
018F6707
| Product Group : | Industrial Controls - Other |
|---|
General
| Product Group : | Industrial Controls - Other |
|---|
Additional Info
| Family : | BE |
|---|
Capacity
| Capacity : | 12 W |
|---|
Connections
| Connection Type : | Connection box |
|---|
Electrical
| Frequency : | 50 Hz | IP Class : | IP67 |
|---|---|---|---|
| Power Consumption at 50Hz : | 12 W | Voltage : | 24 V |
Energy Efficiency/Performance
| Energy Consumption at 50Hz : | 12 W |
|---|
General Information
| Type : | BE024AS |
|---|
Logistical Information
| Commodity Code : | 85059029 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428519120 | Gross Weight : | 0.32 kg |
Measurements
| Net Weight : | 0.31 kg | Weight : | 0.291 kg |
|---|
Temperature
| Max Ambient Temperature : | 80 °C | Min Ambient Temperature : | -40 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| data-sheet-solenoid-coils-type-ba-bd-bb-be-bf-bg-bn-bo-bj-bx-by-bq-am-as-az-and-ap-ast-ai247086497610en-001001.pdf | Technical Literature | 15.53 MB | |
| installation-guide-solenoid-coils-types-bb-be-bf-bg-bh-and-bn-ast-an22788644331701-000501.pdf | Installation Manual | 657.31 KB |
