Description

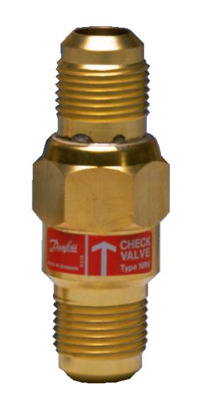

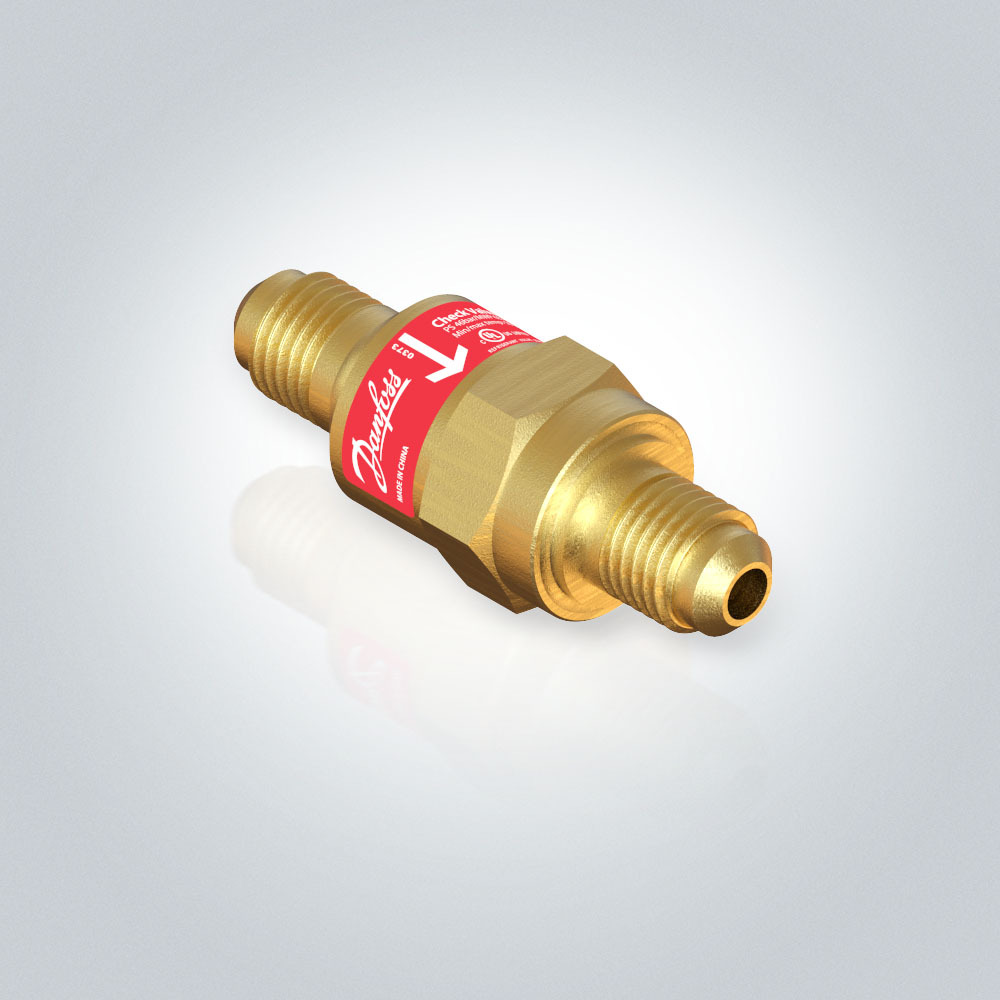

NRV 6 Check valve SW M/25X4
Danfoss DANFOSS C/VALVE 1/4 FL.
Product number:
020-1040
| Product Group : | Check Valves - Danfoss |
|---|
General
| Product Group : | Check Valves - Danfoss |
|---|
Additional Info
| Family : | NRV |
|---|
Connections
| Connection Size : | 1/4 in, 6 mm | Connection Type : | Flare |
|---|---|---|---|
| Inlet Connection Size : | 1/4 in, 6 mm | Inlet Type : | Flare |
| Outlet Connection Size : | 1/4 in, 6 mm | Outlet Type : | Flare |
General Information
| Model Number : | 020-1040 | Type : | NRV 6 |
|---|
Kv Values
| Kv Value : | 0.560 m³/h |
|---|
Logistical Information
| Commodity Code : | 84813099 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702422006510 | Gross Weight : | 0.07 kg |
Material
| Body Material : | Brass | Connection Material : | Brass |
|---|
Measurements
| Net Weight : | 0.05 kg | Weight : | 0.05 kg |
|---|
Pressure
| Max Operating Pressure : | 46.0 Bar | Min Pressure Drop : | 0.070 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R134a, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | C UL US LISTED, EAC |
|---|
Temperature
| Max Temperature : | 140 °C | Min Temperature : | -50 °C |
|---|---|---|---|
| Temperature Range : | -50-140 °C |
Valves
| CV Value : | 0.650 gal/min | Direction : | Straightway |
|---|---|---|---|
| Flow Direction : | Single-flow | Flow Direction Indicator : | On product label |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| brochure-danfoss-solutions-for-chillers-en-ast-ad220886441034en-000402.pdf | Brochures | 4.12 MB | |
| manufacturer-s-declaration-danfoss-md-033f4001-ag-ast-id365946676601-0301.pdf | Conformity Declaration | 1.43 MB | |
| check-valvetype-nrv-and-nrvh020r9506-ast-an306539100226en-000201.pdf | Installation Manual | 215.59 KB | |
| danfoss-solutions-for-air-handling-units-and-rooftops-ast-ad266360368911en-000101.pdf | Brochures | 3.37 MB | |
| manufacturer-s-declaration-danfoss-md-033f4010-ast-id365946679604-0201.pdf | Conformity Declaration | 685.67 KB | |
| data-sheet-check-valve-type-nrv-and-nrvh-ast-ai150286435592en-000901.pdf | Technical Literature | 4.74 MB | |
| manufacturer-s-declaration-danfoss-md-033f4017-aa-ast-id365946687610-0101.pdf | Conformity Declaration | 1.26 MB |
