Description

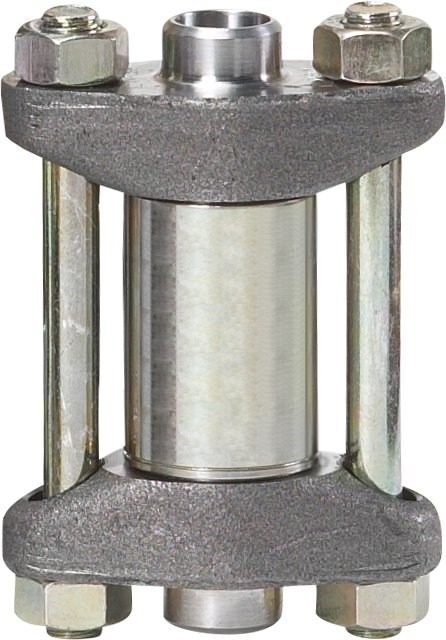

NRVA 15-1/2"WELD FLANGE CHECK VALVE
NRVA 15-1/2WELD FLANGE CHECK VALVE
Product number:
020-2000
| Product Group : | Industrial Controls - Check Valves |
|---|
General
| Product Group : | Industrial Controls - Check Valves |
|---|
Additional Info
| Family : | NRVA |
|---|
Connections
| Connection Size : | 1/2 in, 15 mm | Connection Type : | Butt weld |
|---|---|---|---|
| Inlet Connection Size : | 1/2 in, 15 mm | Outlet Connection Size : | 1/2 in, 15 mm |
General Information
| Model Number : | 020-2000 | Type : | NRVA 15 |
|---|
Kv Values
| Kv Value : | 5.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84813099 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702422032472 | Gross Weight : | 1.034 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Net Weight : | 0.988 kg |
|---|
Pressure
| Max Operating Pressure : | 40.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Temperature
| Max Temperature : | 140 °C | Min Temperature : | -50 °C |
|---|---|---|---|
| Temperature Range : | -50-140 °C |
Valves
| CV Value : | 6.000 gal/min | Fluid Group : | 1 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| danfoss-solutions-for-chillers-ast-ad220886441034en-000402.pdf | Brochures | 3.54 MB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| check-valve-type-nrva-ast-ai241186442960en-000701.pdf | Technical Literature | 1.6 MB | |
| nrva-1565-ast-an105686432933en-000301.pdf | Installation Manual | 336.58 KB |
