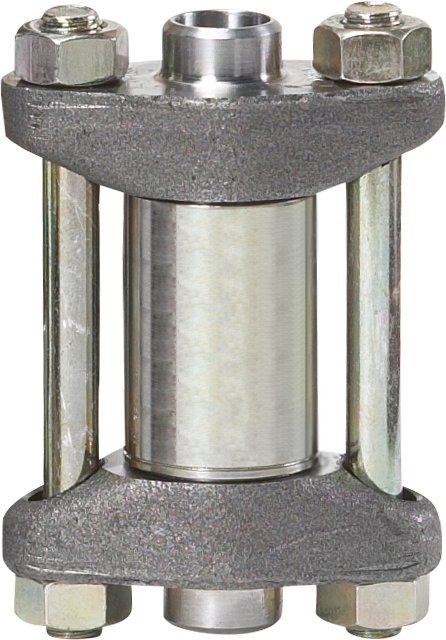

"Danfoss NRVA20 Check Valve"
Item Number:
020-2001
Max Operating Pressure : | 40.0 Bar |
---|---|
Product Group : | Check Valves - Other |
Refrigerant : | R, R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R1233zd(E), R1234yf, R1234ze(E) |
General Information
CV Value : | 7.000 gal/min |
---|---|
Model Number : | 020-2001 |
Product Group : | Check Valves - Other |
Type : | NRVA 20 |
Additional Info
Family : | NRVA |
---|
Connections
Connection Size : | 3/4 in, 20 mm |
---|---|
Connection Type : | Butt weld |
Kv Values
Kv Value : | 6.000 m³/h |
---|
Logistical Information
Commodity Code : | 84813099 |
---|---|
Country Of Origin : | CHN |
EAN : | 5702422029380 |
Gross Weight : | 1.006 kg |
Material
Body Material : | Steel |
---|
Measurements
Weight : | 1.00 kg |
---|
Pressure
Max Operating Pressure : | 40.0 Bar |
---|
Refrigerant
Refrigerant : | R, R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R1233zd(E), R1234yf, R1234ze(E) |
---|
Temperature
Temperature Range : | -50-140 °C |
---|
Valves
Fluid Group : | 1 |
---|
Product information
NRV and NRVH piston type check valves are designed for installation in commercial refrigerating systems and in residential or industrial air conditioning plants. They are used to control the unidirectional flow of refrigerant so as to prevent backflow.
