| Product Group : | Check Valves - Other |
|---|

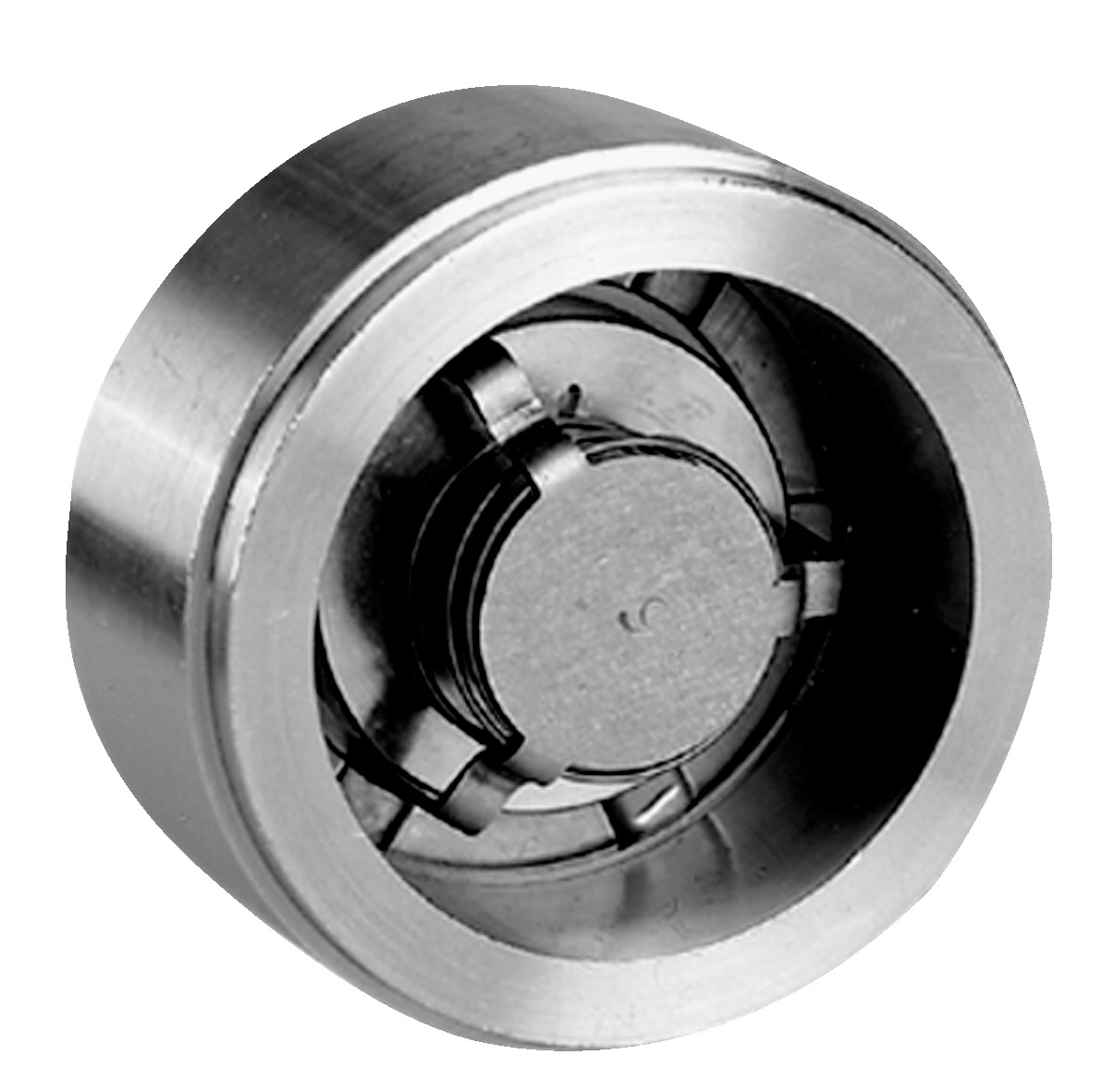

NRV and NRVH piston type check valves are designed for installation in commercial refrigerating systems and in residential or industrial air conditioning plants. They are used to control the unidirectional flow of refrigerant so as to prevent backflow.
| Product Group : | Check Valves - Other |
|---|
| Model Number : | 020-2032 |
|---|
| Commodity Code : | 84813099 | Country Of Origin : | FRA |
|---|---|---|---|
| EAN : | 5702422186502 | Gross Weight : | 0.08 kg |
| Net Weight : | 0.08 kg |
|---|
| Max Operating Pressure : | 28 Bar |
|---|
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R412A, R502, R507A, R717 |
|---|
| Max Temperature : | 140 °C | Min Temperature : | -50 °C |
|---|---|---|---|
| Temperature Range : | -40-150 °C |
| Fluid Group : | 1 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| brochure-danfoss-solutions-for-chillers-en-ast-ad220886441034en-000402.pdf | Brochures | 4.12 MB | |
| manufacturer-s-declaration-danfoss-md-033f4001-ag-ast-id365946676601-0301.pdf | Conformity Declaration | 1.43 MB | |
| nrvs-flanges-ast-an10288641524601-000101.pdf | Installation Manual | 149.14 KB | |
| check-valve-type-nrvs-ast-ai173386419455en-000601.pdf | Technical Literature | 1004.46 KB |
