| Product Group : | Driers - Danfoss |
|---|

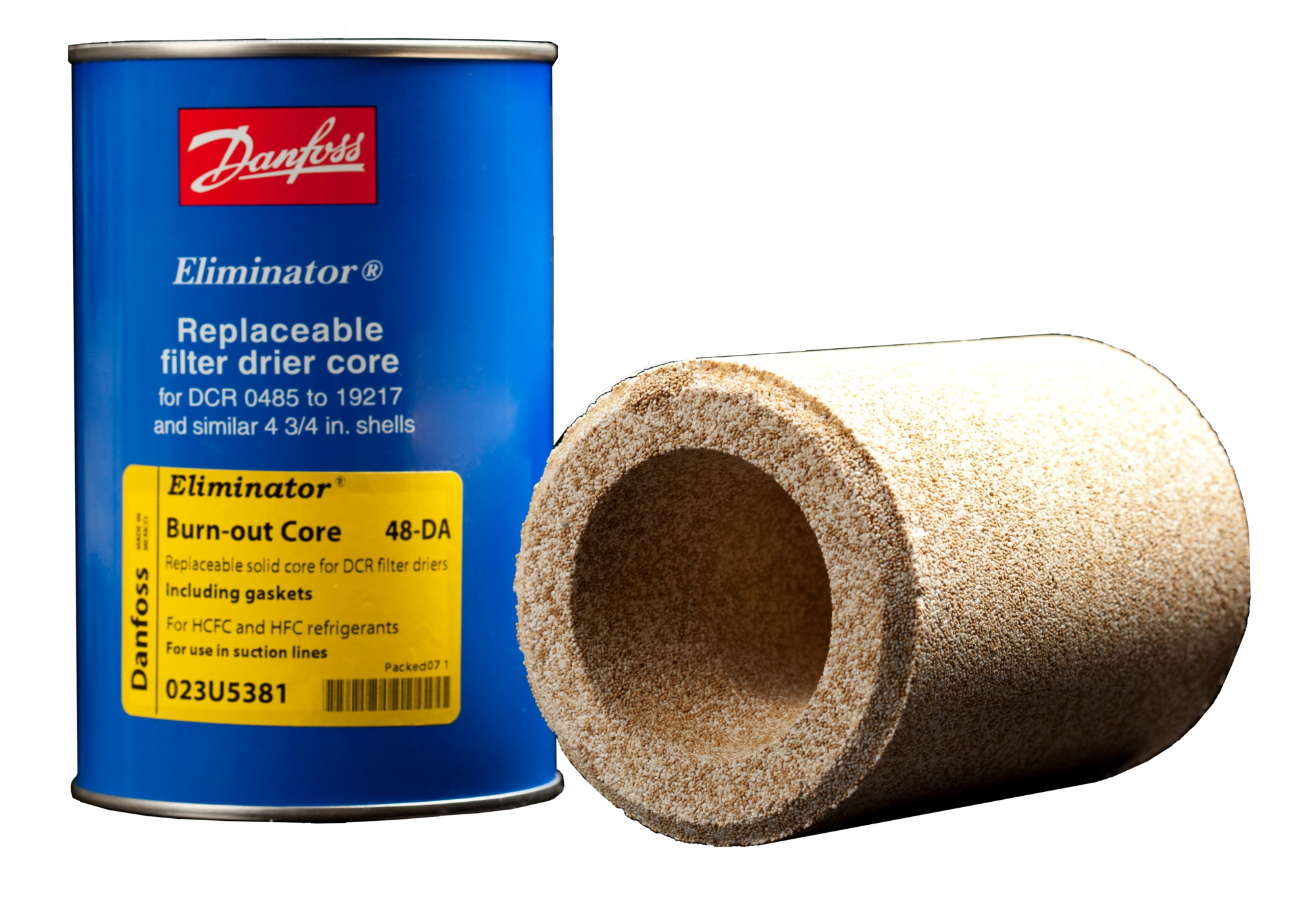

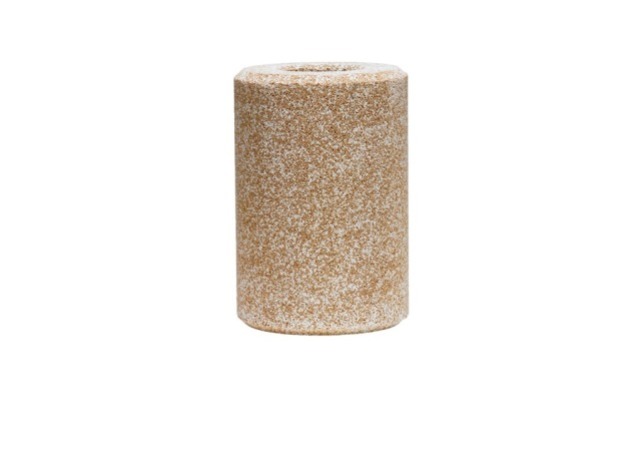

Danfoss ELIMINATOR® filter driers with replaceable solid core, type DCR, are for use in liquid and / or suction lines in refrigeration, freezing and air-conditioning systems.
Besides being able to meet the demanding requirements of high working pressure levels when operating with R410A thanks to replaceable solid cores the DCR programme offers flexibility with respect to different applications.
Available with copper connections.
| Product Group : | Driers - Danfoss |
|---|
| Additional Info : | Burnout block | Family : | DCR-DA |
|---|
| Acid Capacity : | 24.85 g |
|---|
| Core Size : | 48 cu.in. | Solid Core Surface : | 95.00 in², 612 cm² |
|---|---|---|---|
| Solid Core Volume : | 44.00 in³, 727 cm³ |
| Activated Alumina / Molec. Sieve. : | 70/30 % | Model Number : | 023U5381 |
|---|---|---|---|
| Parts Included : | 1 x Gasket (023U0743), 2 x Felt gasket (633L5312) | Specification Key : | 48-DA |
| Type : | 48-DA |
| Commodity Code : | 68159900 | Country Of Origin : | MEX |
|---|
| Net Weight : | 0.82 kg | Weight : | 0.82 kg |
|---|
| Refrigerant : | R22/R407C, R134a, R290, R401A, R402A, R404A, R409A, R410A, R421A, R422D, R502, R507A |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| filter-drier-shell-types-dcr-and-dcre-ast-ai222586433727en-001302.pdf | Technical Literature | 2.96 MB |
