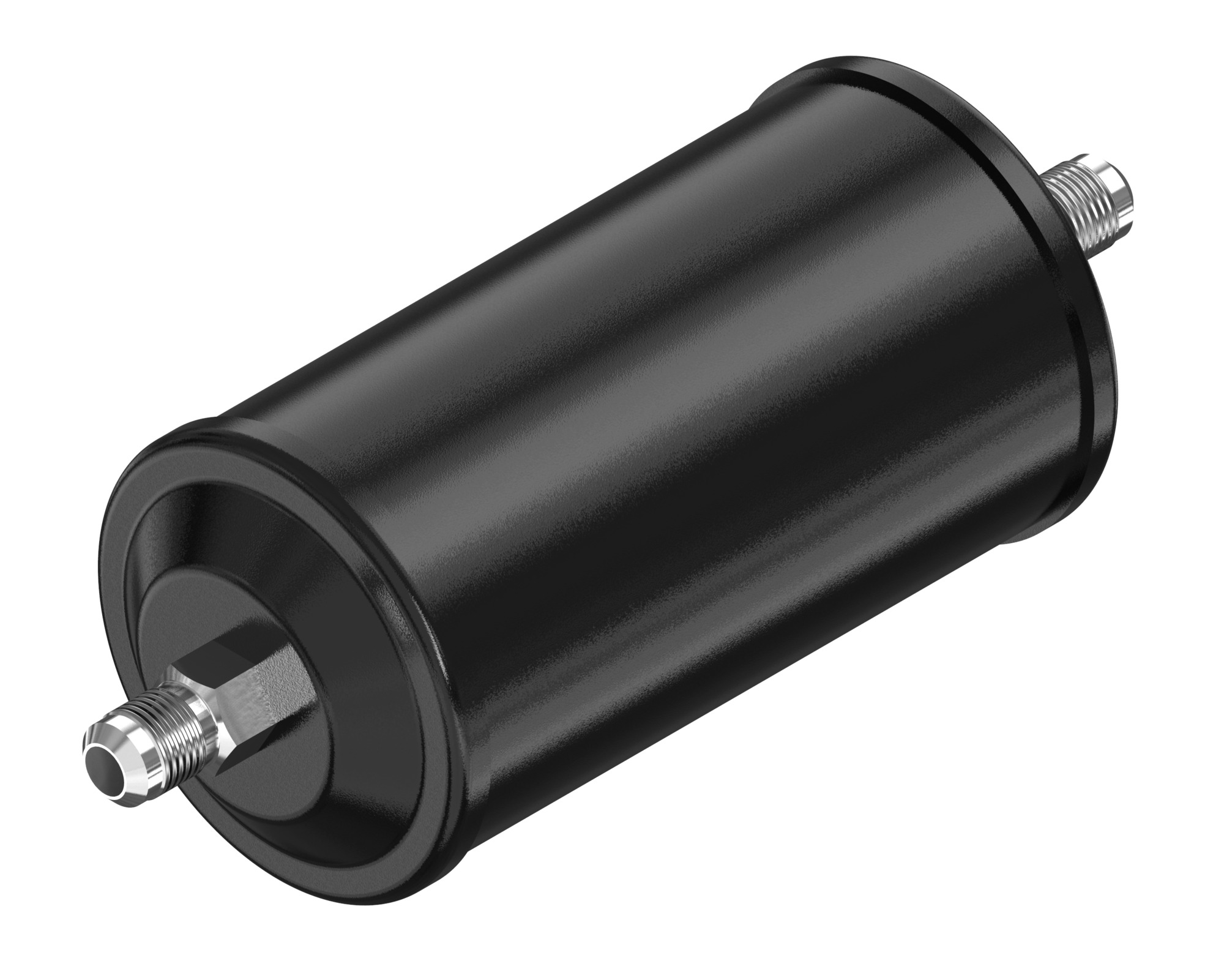

"Danfoss - Liquid Line Drier 414 1/2" Flare"
Item Number:
023Z0109
| Max Operating Pressure : | 46.0 Bar |
|---|---|
| Product Group : | Driers - Danfoss |
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
General Information
| Activated Alumina / Molec. Sieve. : | 0/100 % |
|---|---|
| Approval : | UL |
| Product Group : | Driers - Danfoss |
| Specification Key : | DML 414 |
| Type : | DML 414 |
Additional Info
| Family : | DML |
|---|
Capacity
| Acid Capacity : | 3.28 g |
|---|---|
| Capacity : | R32: 51.6 kW, R134a: 33.8 kW, R404A: 23.8 kW, R407C: 34.7 kW, R410A: 35.2 kW, R507: 23.1 kW |
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Inlet Connection Size : | 1/2 in, 12.0 mm |
|---|---|
| Inlet Type : | Flare |
| Outlet Connection Size : | 1/2 in, 12.0 mm |
| Outlet Type : | Flare |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 41 cu.in. |
| Flow Capacity kW : | R32: 51.6, R134a: 33.8, R290: --, R404A: 23.8, R407C: 34.7, R410A: 35.2, R507: 23.1 |
| Shell Volume : | 0.97 L |
| Solid Core Surface : | 64.26 in², 415 cm² |
| Solid Core Volume : | 21.69 in³, 355 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 1281, R134a: 1522, R290: --, R404A: 1585, R407C: 1478, R410A: 1377, R507: 1660 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 1179, R134a: 1393, R290: --, R404A: 1501, R407C: 1362, R410A: 1225, R507: 1493 |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | MEX |
| EAN : | 5702428135375 |
| Gross Weight : | 2.049 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Net Weight : | 1.83 kg |
|---|---|
| Volume : | 0.620 L |
| Weight : | 1.83 kg |
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
Product information
Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections.
