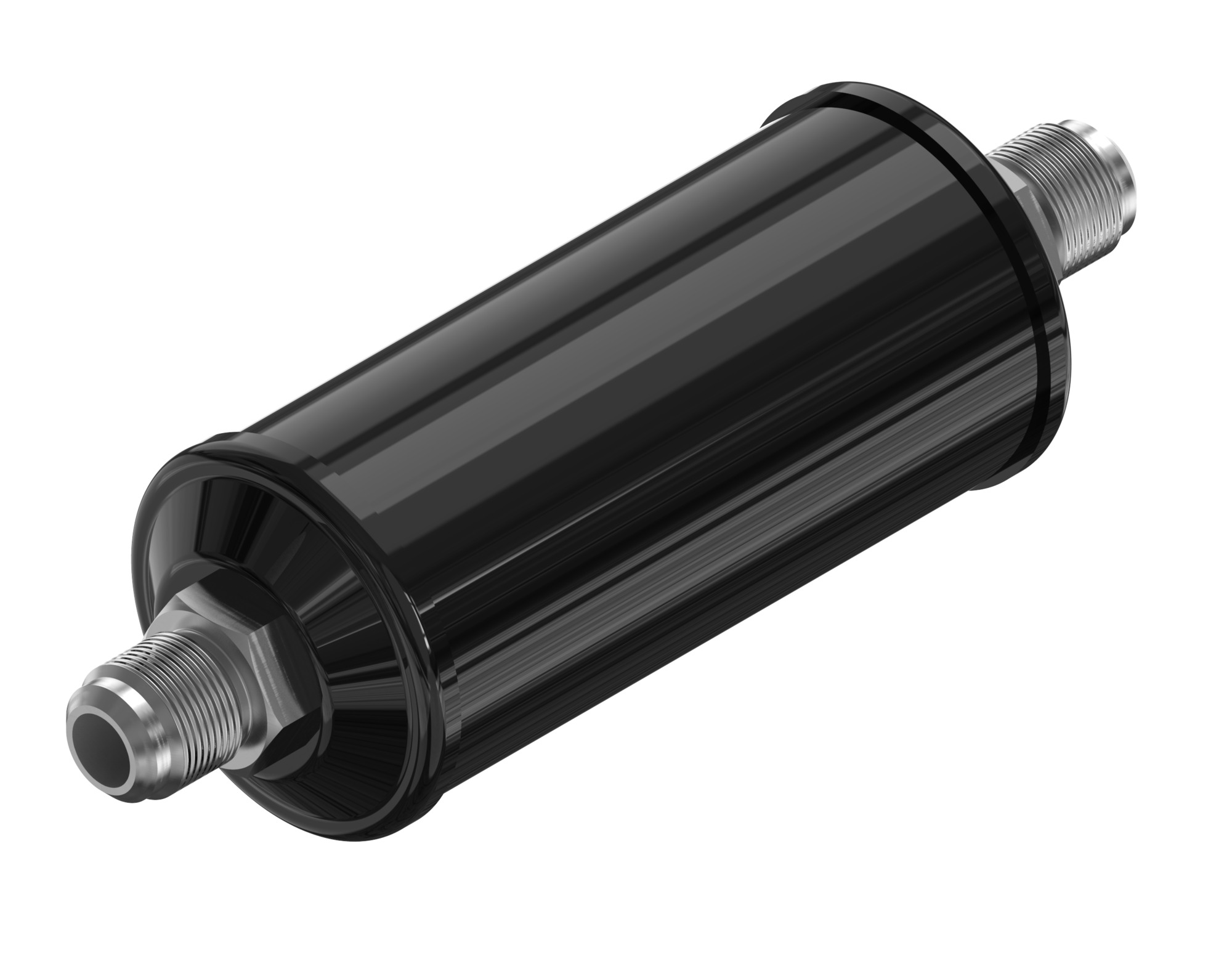

Danfoss - Liquid Line Drier 306 3/4" Flare

Product number: 023Z0193
PLEASE LOGIN TO SEE PRICES
Product Group : Driers - Danfoss
Description

Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity.

Available with solder (cu-plated steel connectors) and flare connections.

Product Group : Driers - Danfoss
Family : DML
Acid Capacity : 2.43 g Capacity : R32: 89.9 kW, R134a: 59.0 kW, R404A: 41.5 kW, R407C: 60.4 kW, R410A: 61.4 kW, R507: 40.2 kW
Liquid Capacity Conditions (ARI 710-2009) : Delta p=0.07bar, tliq= 30°C, tvap=-15°C
Connection Size : 3/4" Connection Type : Flare
Inlet Type : Flare Outlet Type : Flare
Core : Solid core Core Size : 30 cu.in.
Flow Capacity kW : R32: 89.9, R134a: 59.0, R290: --, R404A: 41.5, R407C: 60.4, R410A: 61.4, R507: 40.2 Shell Volume : 0.72 L
Solid Core Surface : 52.70 in², 340 cm² Solid Core Volume : 15.77 in³, 258 cm³
Drying Capacity 24°C (Drops of Water) : R32: 948, R134a: 1127, R290: --, R404A: 1174, R407C: 1094, R410A: 1020, R507: 1229 Drying Capacity 52°C (Drops of Water) : R32: 873, R134a: 1032, R290: --, R404A: 1112, R407C: 1009, R410A: 907, R507: 1106
Activated Alumina / Molec. Sieve. : 0/100 % Specification Key : DML 306
Type : DML 306
Commodity Code : 84212980 Country Of Origin : MEX
EAN : 5702428159074 Gross Weight : 1.534 kg
Body Material : Steel Connection Material : Steel
Net Weight : 1.45 kg Volume : 0.464 L
Weight : 1.45 kg
Max Operating Pressure : 46.0 Bar
Refrigerant : R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E)
Approval : UL
Max Temperature : 70 °C Medium Temperature Range : -40-70 °C
Min Temperature : -40 °C Temperature Range : -40-70 °C
Flow Direction Indicator : Label printed 1-way arrow Fluid Group : 2
