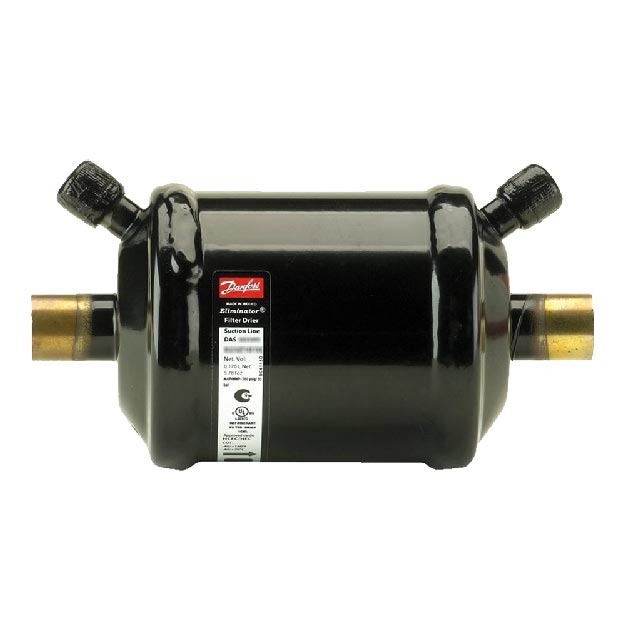

"Danfoss - Suction Line Drier 084S 1/2" ODS"
Item Number:
023Z1004
Max Operating Pressure : | 35.0 Bar |
---|---|
Product Group : | Driers - Danfoss |
Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R600, R1234yf, R1234ze(E) |
General Information
Activated Alumina / Molec. Sieve. : | 70/30 % |
---|---|
Approval : | UL |
Model Number : | 023Z1004 |
Product Group : | Driers - Danfoss |
Specification Key : | DAS 084SVV |
Type : | DAS 084SVV |
Additional Info
Family : | DAS |
---|
Capacity
Acid Capacity : | 3.79 g |
---|---|
Capacity : | R134a: 5.5 kW, R404A: 8.0 kW, R407C: 10.0 kW, R410A: 10.0 kW, R507: 8.0 kW |
Connections
Connection Type : | Solder, ODF |
---|---|
Inlet Connection Size : | 1/2 in |
Inlet Type : | Solder, ODF |
Outlet Connection Size : | 1/2 in |
Outlet Type : | Solder, ODF |
Driers
Core : | Solid core |
---|---|
Core Size : | 08 cu.in. |
Flow Capacity Conditions (ARI 730-05) : | Delta p=0.21bar, tevap=4°C |
Flow Capacity kW : | R134a: 5.5, R404A: 8.0, R407C: 10.0, R410A: 10.0, R507: 8.0 |
Shell Volume : | 0.17 L |
Solid Core Surface : | 18.29 in², 118 cm² |
Solid Core Volume : | 3.57 in³, 59 cm³ |
Logistical Information
Commodity Code : | 84213985 |
---|---|
Country Of Origin : | MEX |
EAN : | 5702428160506 |
Gross Weight : | 0.596 kg |
Material
Body Material : | Steel |
---|---|
Connection Material : | Copper |
Measurements
Net Weight : | 0.54 kg |
---|---|
Volume : | 0.114 L |
Weight : | 0.54 kg |
Pressure
Max Operating Pressure : | 35.0 Bar |
---|
Refrigerant
Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R600, R1234yf, R1234ze(E) |
---|
Temperature
Max Temperature : | 70 °C |
---|---|
Min Temperature : | -40 °C |
Temperature Range : | -40-70 °C |
Valves
Flow Direction Indicator : | Label printed 1-way arrow |
---|---|
Fluid Group : | 2 |
Product information

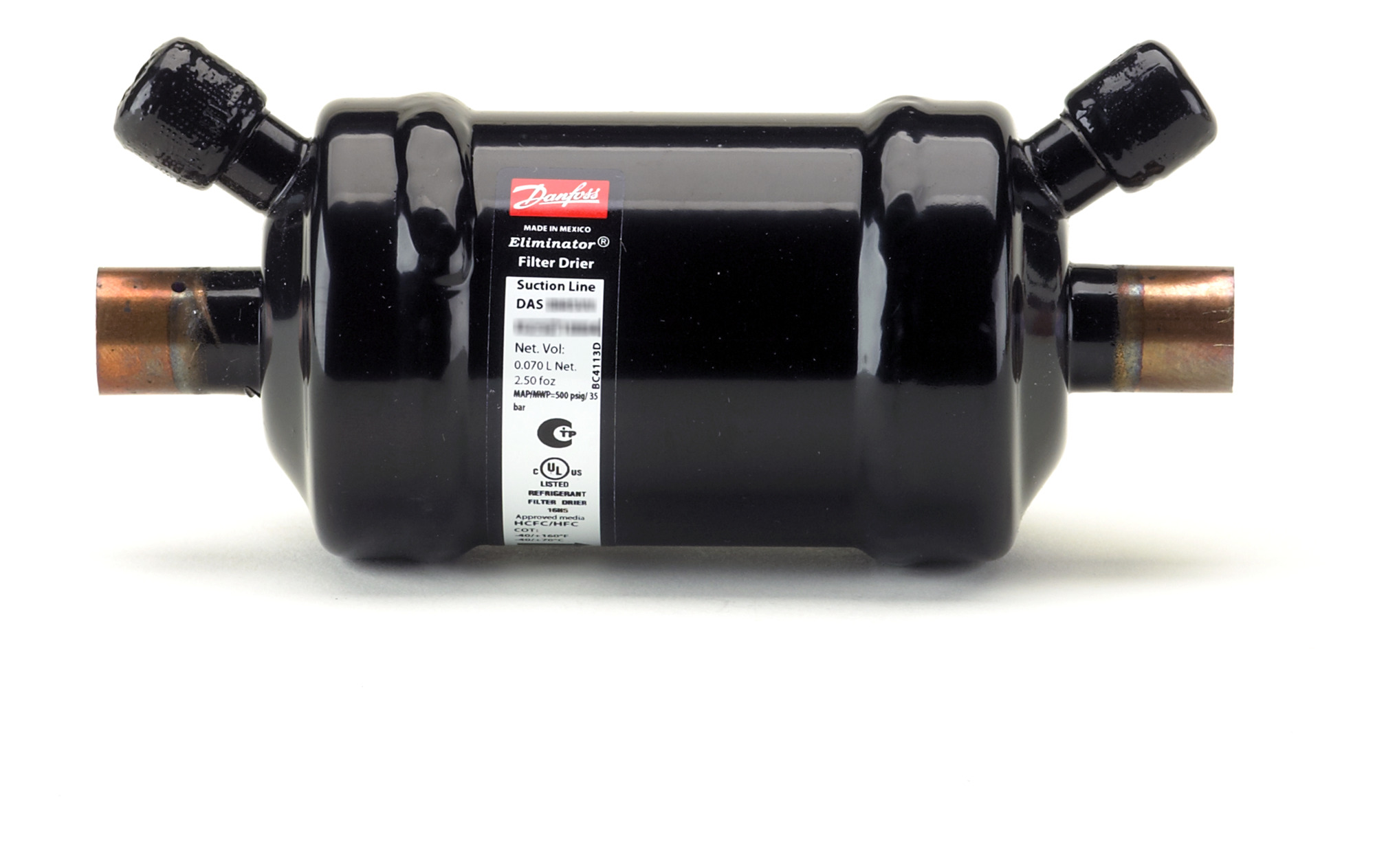

Hermetic burn-out filter driers type DAS are used in the suction line to clean up refrigeration and air conditioning systems after a compressor motor burn-out. The solid core, which is composed of 70% activated alumina and 30% Molecular Sieve, adsorbs harmful acids as well as moisture.
Available with flare and solder (pure copper) connections.
