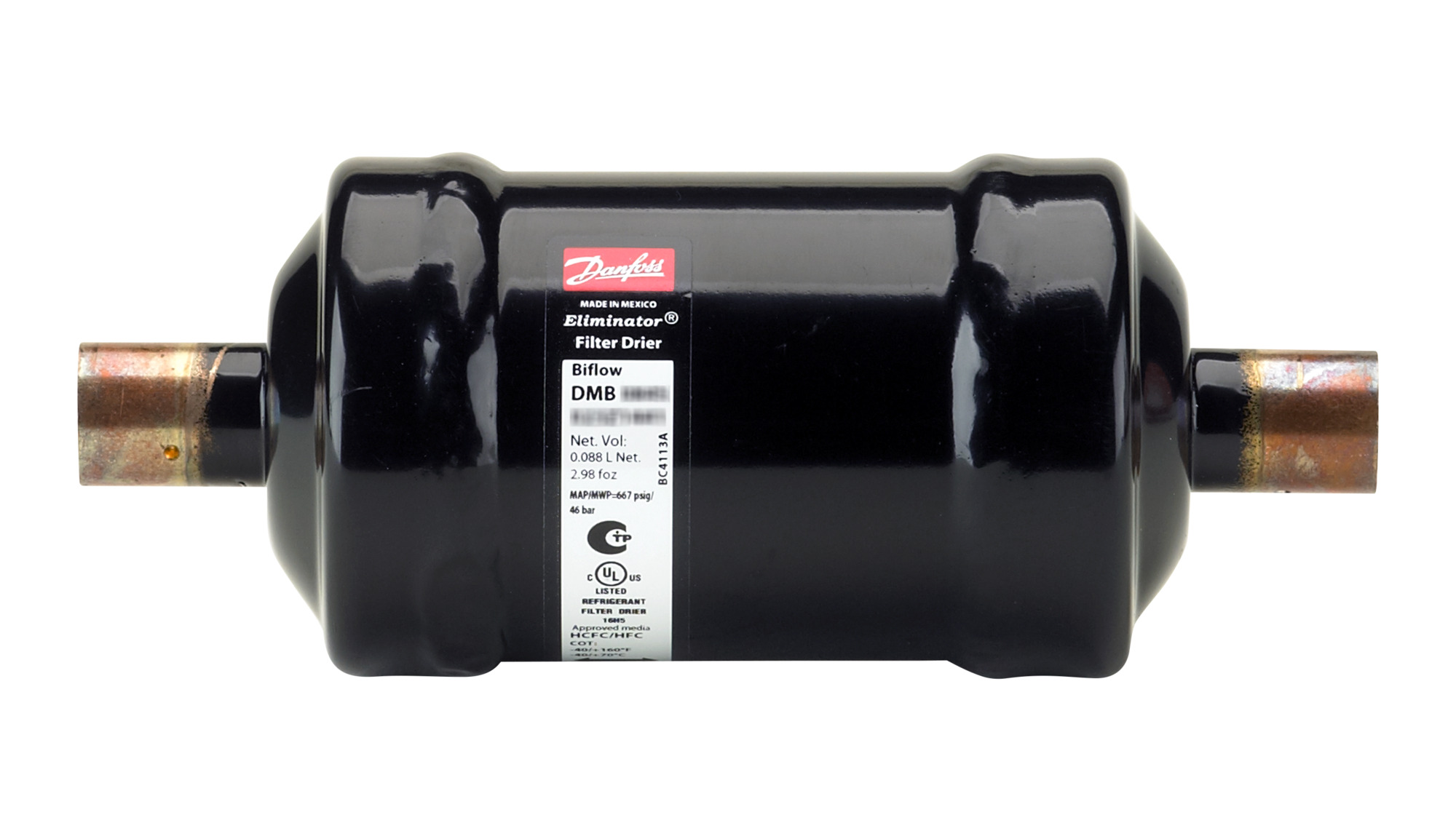

"Danfoss - Bi Flow Drier 164S 1/2" ODS"
Max Operating Pressure : | 46.0 Bar |
---|---|
Product Group : | Driers - Danfoss |
Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
Activated Alumina / Molec. Sieve. : | 0/100 % |
---|---|
Approval : | UL |
Product Group : | Driers - Danfoss |
Specification Key : | DMB 164S |
Type : | DMB 164S |
Family : | DMB |
---|
Acid Capacity : | 0.72 g |
---|---|
Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Inlet Connection Size : | 1/2 in |
---|---|
Inlet Type : | Solder, ODF |
Outlet Connection Size : | 1/2 in |
Outlet Type : | Solder, ODF |
Core : | Solid core |
---|---|
Core Size : | 16 cu.in. |
Flow Capacity kW : | R32: 30.0, R134a: 19.7, R290: 23.7, R404A: 13.8, R407C: 20.2, R410A: 20.5, R507: 13.4 |
Shell Volume : | 0.42 L |
Solid Core Surface : | 19.93 in², 129 cm² |
Solid Core Volume : | 4.89 in³, 80 cm³ |
Drying Capacity 24°C (Drops of Water) : | R32: 283, R134a: 337, R290: --, R404A: 351, R407C: 327, R410A: 305, R507: 367 |
---|---|
Drying Capacity 52°C (Drops of Water) : | R32: 261, R134a: 308, R290: --, R404A: 332, R407C: 301, R410A: 271, R507: 331 |
Commodity Code : | 84212980 |
---|---|
Country Of Origin : | MEX |
EAN : | 5702428158442 |
Gross Weight : | 0.968 kg |
Body Material : | Steel |
---|---|
Connection Material : | Copper |
Volume : | 0.312 L |
---|---|
Weight : | 0.94 kg |
Max Operating Pressure : | 46.0 Bar |
---|
Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
---|
Temperature Range : | -40-70 °C |
---|
Flow Direction Indicator : | Label printed 1-way arrow |
---|---|
Fluid Group : | 2 |
Hermetic bi-flow filter driers, types DMB and DCB are for use in liquid lines on heat pumps. Hermetic bi-flow filter driers have built-in check valves which ensure that refrigerant liquid always flows through the filter driers from the outer side of the filter core towards the center. Thus all dirt particles are retained irrespective of flow direction.
DMB and DCB filter driers ensure fast and effective adsorption of moisture as well as organic and inorganic acids. When building heat pump systems, the use of bi-flow filters can, depending on the type of system, save up to ten solder connections. This reduces production costs and the number of potential leakage points.
Available with flare and solder (cu-plated steel) connections
