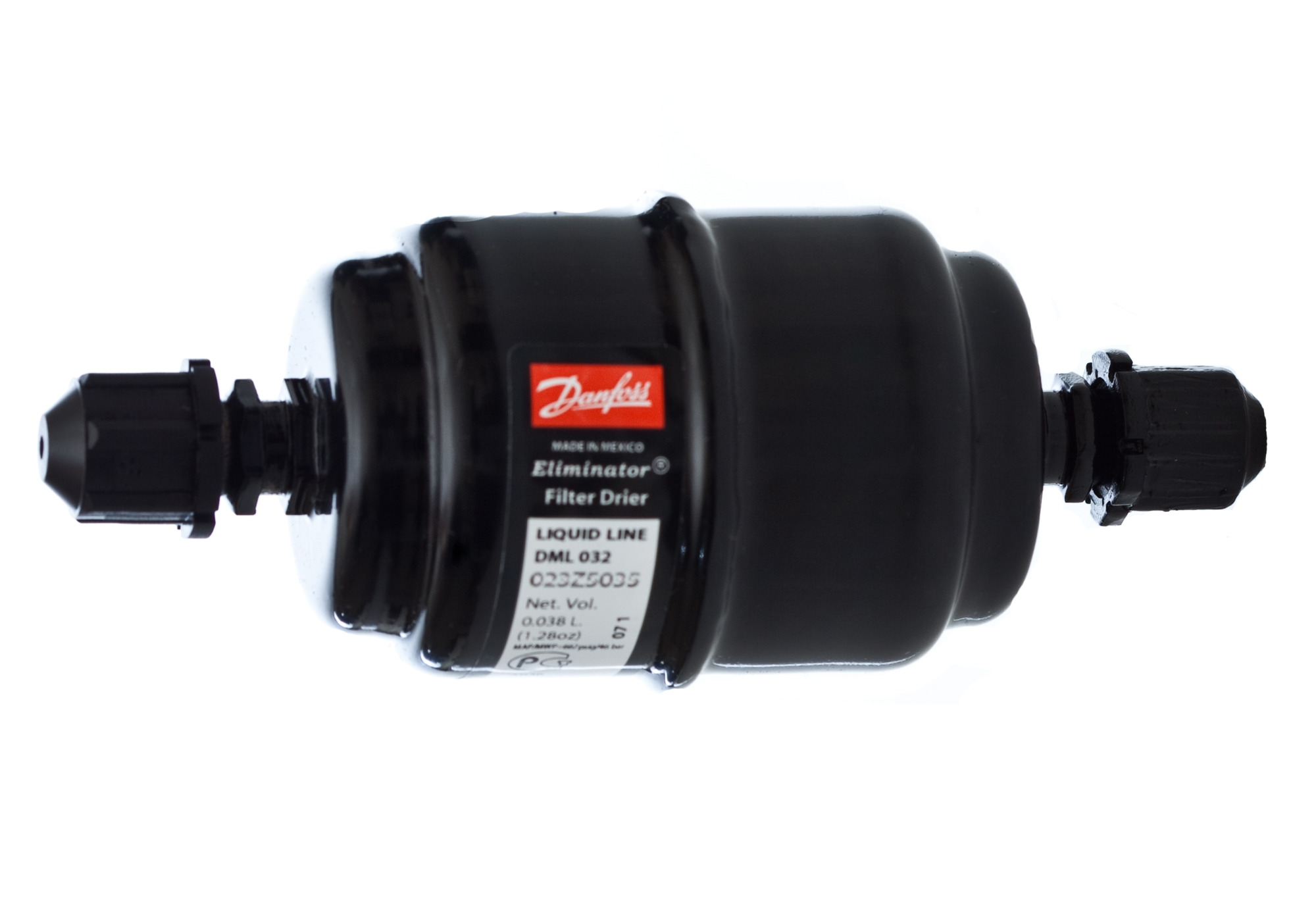

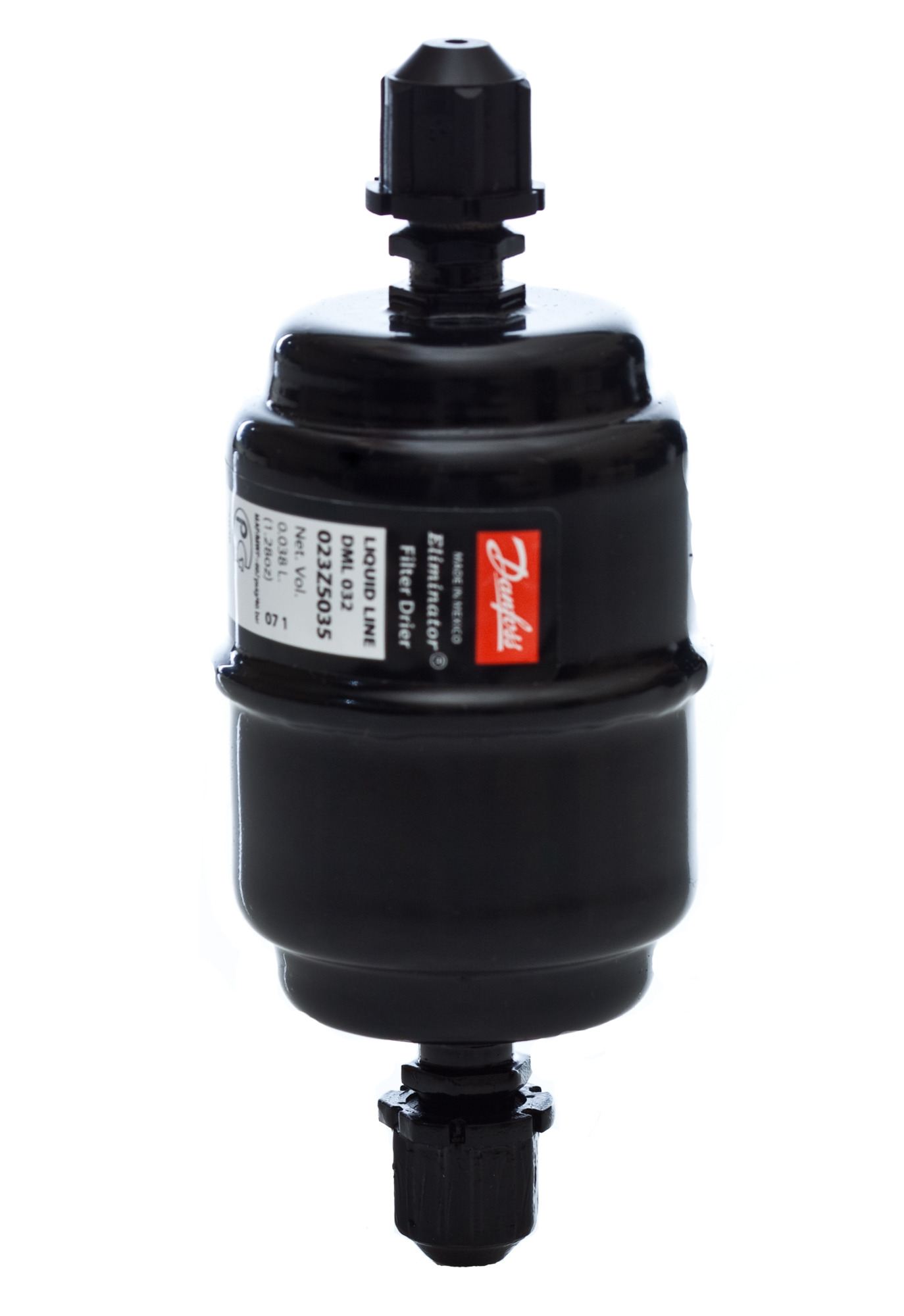

"Danfoss - Liquid Line Drier DML032 - 1/4" M.Fl"
Item Number:
023Z5035
| Max Operating Pressure : | 46.0 Bar |
|---|---|
| Product Group : | Driers - Danfoss |
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
General Information
| Activated Alumina / Molec. Sieve. : | 0/100 % |
|---|---|
| Approval : | UL |
| Product Group : | Driers - Danfoss |
| Specification Key : | DML 032 |
| Type : | DML 032 |
Additional Info
| Family : | DML |
|---|
Capacity
| Acid Capacity : | 0.20 g |
|---|---|
| Capacity : | R32: 8.8 kW, R134a: 5.8 kW, R404A: 4.1 kW, R407C: 5.9 kW, R410A: 6.0 kW, R507: 4.0 kW |
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
Connections
| Connection Size : | 1/4" |
|---|---|
| Connection Type : | Flare |
| Inlet Type : | Flare |
| Outlet Type : | Flare |
Driers
| Core : | Solid core |
|---|---|
| Core Size : | 03 cu.in. |
| Flow Capacity kW : | R32: 8.8, R134a: 5.8, R290: --, R404A: 4.1, R407C: 5.9, R410A: 6.0, R507: 4.0 |
| Shell Volume : | 0.07 L |
| Solid Core Surface : | 9.10 in², 59 cm² |
| Solid Core Volume : | 1.30 in³, 21 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 80, R134a: 95, R290: --, R404A: 98, R407C: 92, R410A: 86, R507: 103 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R32: 73, R134a: 87, R290: --, R404A: 93, R407C: 85, R410A: 76, R507: 93 |
Logistical Information
| Commodity Code : | 84212980 |
|---|---|
| Country Of Origin : | IND |
| EAN : | 5702428155786 |
| Gross Weight : | 0.208 kg |
Material
| Body Material : | Steel |
|---|---|
| Connection Material : | Steel |
Measurements
| Net Weight : | 0.18 kg |
|---|---|
| Volume : | 0.051 L |
| Weight : | 0.18 kg |
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Temperature
| Max Temperature : | 70 °C |
|---|---|
| Medium Temperature Range : | -40-70 °C |
| Min Temperature : | -40 °C |
| Temperature Range : | -40-70 °C |
Valves
| Flow Direction Indicator : | Label printed 1-way arrow |
|---|---|
| Fluid Group : | 2 |
Product information
Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections.
