| Product Group : | Driers - Danfoss |
|---|

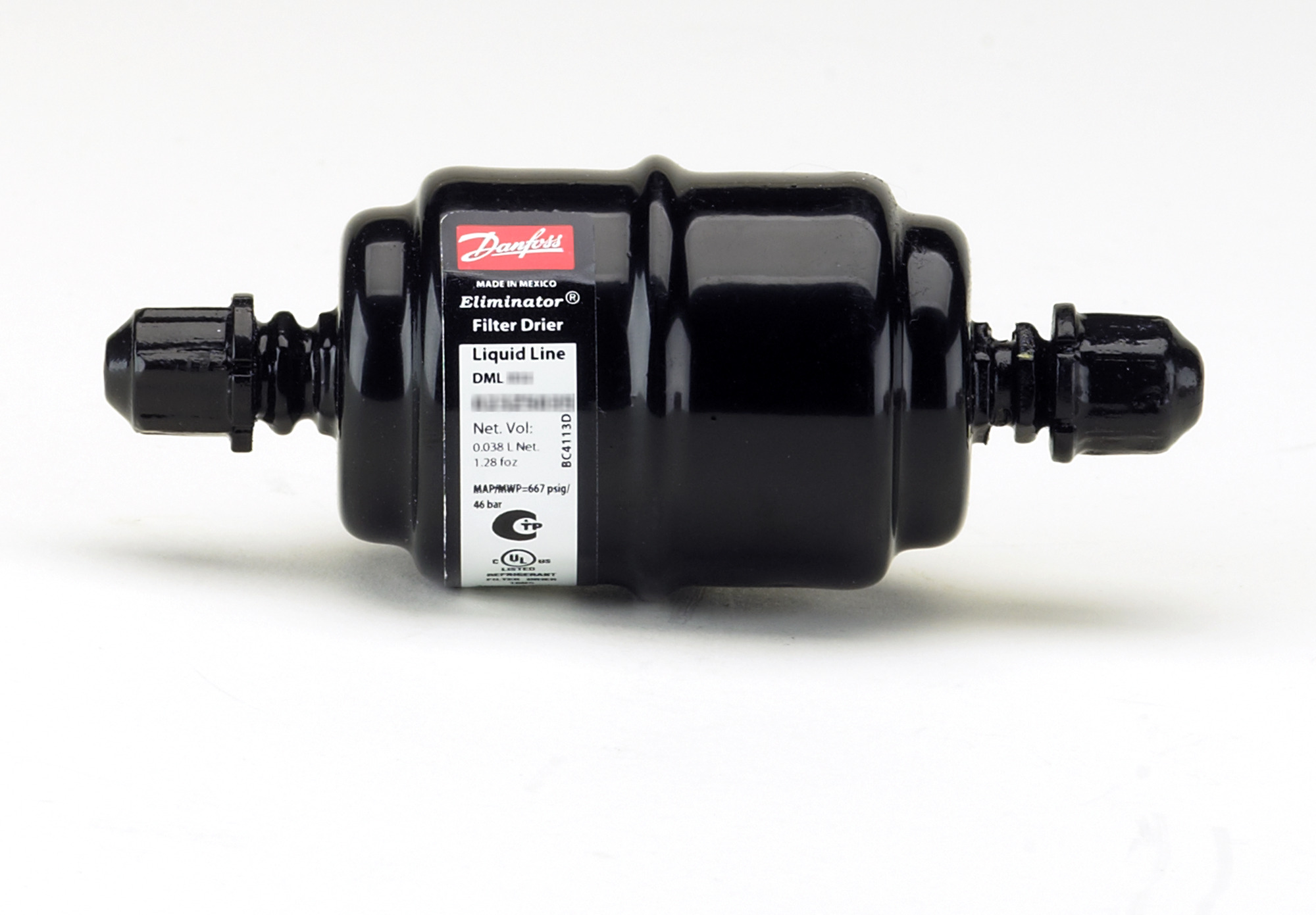

Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections.
| Product Group : | Driers - Danfoss |
|---|
| Family : | DML |
|---|
| Acid Capacity : | 0.20 g | Capacity : | R32: 18.4 kW, R134a: 12.1 kW, R404A: 8.5 kW, R407C: 12.4 kW, R410A: 12.6 kW, R507: 8.2 kW |
|---|---|---|---|
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| Connection Size : | 3/8" | Connection Type : | Flare |
|---|---|---|---|
| Inlet Type : | Flare | Outlet Type : | Flare |
| Core : | Solid core | Core Size : | 03 cu.in. |
|---|---|---|---|
| Flow Capacity kW : | R32: 18.4, R134a: 12.1, R290: --, R404A: 8.5, R407C: 12.4, R410A: 12.6, R507: 8.2 | Shell Volume : | 0.07 L |
| Solid Core Surface : | 9.10 in², 59 cm² | Solid Core Volume : | 1.30 in³, 21 cm³ |
| Drying Capacity 24°C (Drops of Water) : | R32: 80, R134a: 95, R290: --, R404A: 98, R407C: 92, R410A: 86, R507: 103 | Drying Capacity 52°C (Drops of Water) : | R32: 73, R134a: 87, R290: --, R404A: 93, R407C: 85, R410A: 76, R507: 93 |
|---|
| Activated Alumina / Molec. Sieve. : | 0/100 % | Specification Key : | DML 033 |
|---|---|---|---|
| Type : | DML 033 |
| Commodity Code : | 84212980 | Country Of Origin : | MEX |
|---|---|---|---|
| EAN : | 5702428155779 | Gross Weight : | 0.244 kg |
| Body Material : | Steel | Connection Material : | Steel |
|---|
| Net Weight : | 0.2 kg | Volume : | 0.051 L |
|---|---|---|---|
| Weight : | 0.20 kg |
| Max Operating Pressure : | 46.0 Bar |
|---|
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
| Approval : | UL |
|---|
| Max Temperature : | 70 °C | Medium Temperature Range : | -40-70 °C |
|---|---|---|---|
| Min Temperature : | -40 °C | Temperature Range : | -40-70 °C |
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
