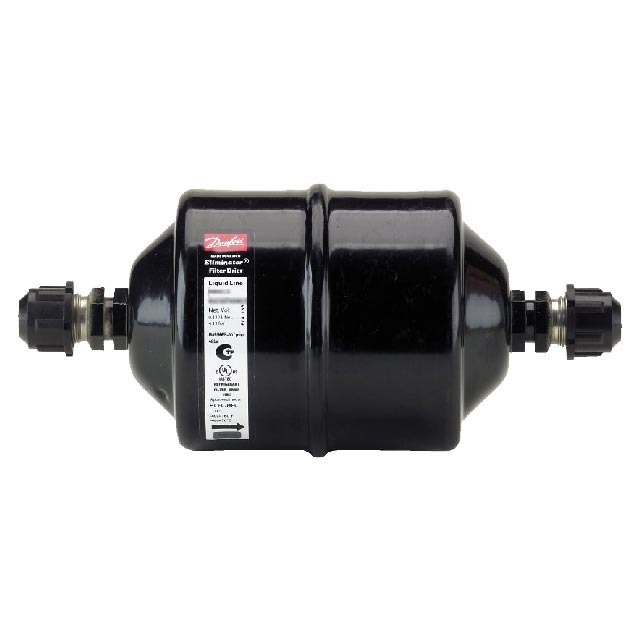

Type DML/DMLE driers have a core composition of 100% Molecular Sieve, while type DCL/DCLE contain 80% Molecular Sieve with 20% activated alumina. Type DML/DMLE driers are designed for applications requiring the highest moisture capacity. Type DML/DMLE driers are designed for applications requiring high moisture capacity and acid adsorption capacity.
Available with solder (cu-plated steel connectors) and flare connections.
| Product Group : | Driers - Danfoss |
|---|
| Family : | DML |
|---|
| Acid Capacity : | 1.20 g | Capacity : | R32: 40.5 kW, R134a: 26.6 kW, R404A: 18.7 kW, R407C: 27.2 kW, R410A: 27.7 kW, R507: 18.1 kW |
|---|---|---|---|
| Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
| Connection Size : | 1/2" | Connection Type : | Flare |
|---|---|---|---|
| Inlet Type : | Flare | Outlet Type : | Flare |
| Core : | Solid core | Core Size : | 16 cu.in. |
|---|---|---|---|
| Flow Capacity kW : | R32: 40.5, R134a: 26.6, R290: --, R404A: 18.7, R407C: 27.2, R410A: 27.7, R507: 18.1 | Shell Volume : | 0.35 L |
| Solid Core Surface : | 28.34 in², 183 cm² | Solid Core Volume : | 7.84 in³, 128 cm³ |
| Drying Capacity 24°C (Drops of Water) : | R32: 470, R134a: 559, R290: --, R404A: 582, R407C: 543, R410A: 506, R507: 610 | Drying Capacity 52°C (Drops of Water) : | R32: 433, R134a: 512, R290: --, R404A: 551, R407C: 500, R410A: 450, R507: 548 |
|---|
| Activated Alumina / Molec. Sieve. : | 0/100 % | Specification Key : | DML 164 |
|---|---|---|---|
| Type : | DML 164 |
| Commodity Code : | 84212980 | Country Of Origin : | MEX |
|---|---|---|---|
| EAN : | 5702428155687 | Gross Weight : | 0.935 kg |
| Body Material : | Steel | Connection Material : | Steel |
|---|
| Net Weight : | 0.74 kg | Volume : | 0.226 L |
|---|---|---|---|
| Weight : | 0.74 kg |
| Oil Type : | Oilfree applications |
|---|
| Max Operating Pressure : | 46.0 Bar |
|---|
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R1233zd(E), R1234yf, R1234ze(E) |
|---|
| Approval : | UL |
|---|
| Max Temperature : | 70 °C | Medium Temperature Range : | -40-70 °C |
|---|---|---|---|
| Min Temperature : | -40 °C | Temperature Range : | -40-70 °C |
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eliminator-hermetic-filter-drier-types-dml-and-dcl-ast-ai192386435941en-001403.pdf | Technical Literature | 2.1 MB | |
| pressure-safety-certificate-tssa-crn-0e24090-5123467890tny-ast-id443047199437-0101.pdf | Conformity Declaration | 14.01 MB | |
| manufacturer-s-declaration-danfoss-md-023u9601-ah-ast-id365946834721-0401.pdf | Conformity Declaration | 1.83 MB | |
| brochure-danfoss-solutions-for-air-handling-units-and-rooftops-en-ast-ad266360368911en-000101.pdf | Brochures | 3.9 MB | |
| installation-guide-dml-dcl-hermetic-filter-drier-ast-an165086432065en-000601.pdf | Installation Manual | 408.13 KB | |
| mechanical-safety-certificate-ul-sa6398-ast-id366040936109-0201.pdf | Conformity Declaration | 548.69 KB | |
| manufacturer-s-declaration-danfoss-md-023z9610-aa-ast-id365946921787-0101.pdf | Conformity Declaration | 245.66 KB |
