Description

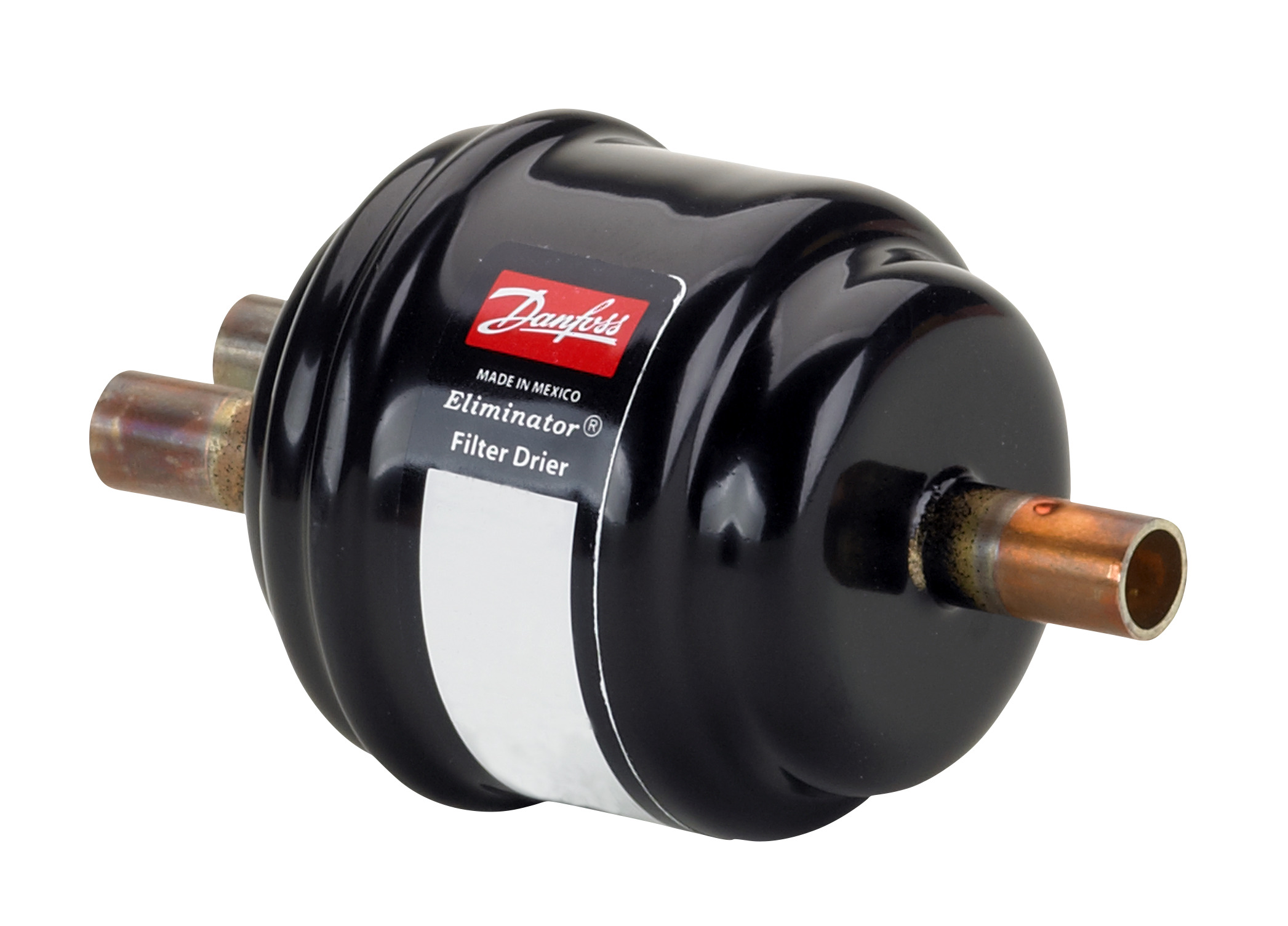

Danfoss - Liquid Line Drier DML052S - 1/4" F.Sw
Product number:
023Z5053
| Product Group : | Driers - Danfoss |
|---|
General
| Product Group : | Driers - Danfoss |
|---|
Capacity
| Acid Capacity : | 0.33 g | Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
|---|
Compatibility
| Lubricants Compatibility : | Oilfree applications |
|---|
Compressor
| PED Category : | Art. 4, par. 3 |
|---|
Connections
| Inlet Type : | Solder, odf | Outlet Type : | Solder, ODF |
|---|
Driers
| Core : | Solid core | Core Size : | 05 cu.in. |
|---|---|---|---|
| Flow Capacity kW : | R32: 9.3, R134a: 6.1, R290: 7.3, R404A: 4.3, R407C: 6.2, R410A: 6.3, R507: 4.2 | Shell Volume : | 0.12 L |
| Solid Core Surface : | 82 cm² | Solid Core Volume : | 37 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 130, R134a: 155, R290: --, R404A: 161, R407C: 150, R410A: 140, R507: 169 | Drying Capacity 52°C (Drops of Water) : | R32: 120, R134a: 141, R290: --, R404A: 152, R407C: 138, R410A: 124, R507: 152 |
|---|
Features
| Serviceable : | No |
|---|
General Information
| Activated Alumina / Molec. Sieve. : | 0%/100 % | Type : | DML |
|---|
Logistical Information
| Commodity Code : | 84212980 | Country Of Origin : | IND |
|---|---|---|---|
| EAN : | 5702428155601 | Gross Weight : | 0.252 kg |
| Packaging Height : | 58 mm | Packaging Length : | 168 mm |
| Packaging Width : | 58 mm |
Material
| Body Material : | Steel | Connection Material : | Copper |
|---|
Measurements
| Volume : | 0.085 L |
|---|
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Oil Free Refrigerants : | R134a, R513A, R515A, R1234ze(E) | Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
|---|---|---|---|
| UL Approved Refrigerants : | R22, R23, R125, R134a, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A |
Standards
| Approval : | UL |
|---|
Valves
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
