Description

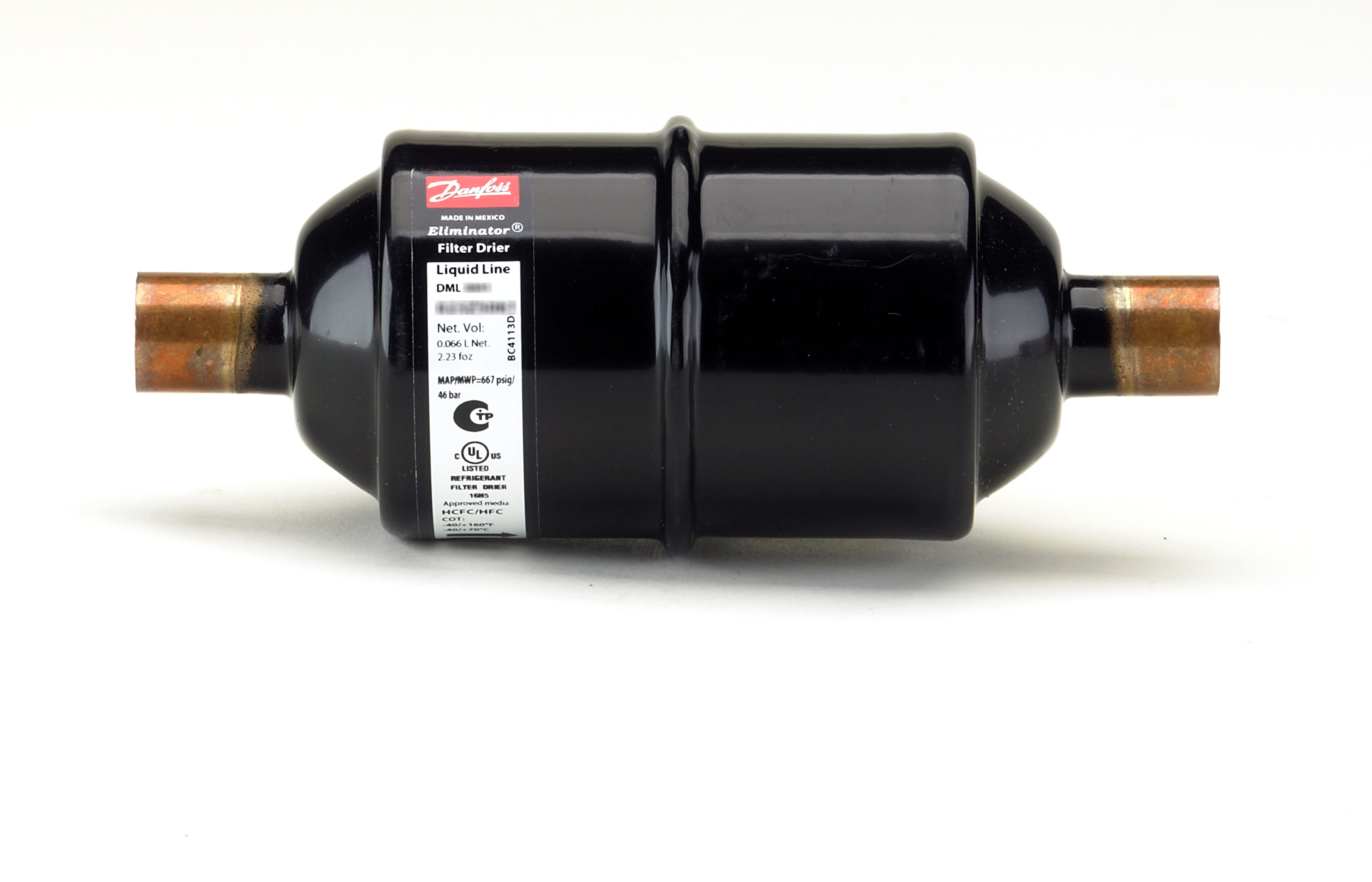

Filter drier DML 084S M/24
Danfoss - Liquid Line Filter Drier 1/2" ODF
Product number:
023Z5061
| Product Group : | Driers - Danfoss |
|---|
General
| Product Group : | Driers - Danfoss |
|---|
Additional Info
| Family : | DML |
|---|
Capacity
| Acid Capacity : | 0.54 g | Liquid Capacity Conditions (ARI 710-2009) : | Delta p=0.07bar, tliq= 30°C, tvap=-15°C |
|---|
Connections
| Inlet Connection Size : | 1/2 in | Inlet Type : | Solder, ODF |
|---|---|---|---|
| Outlet Connection Size : | 1/2 in | Outlet Type : | Solder, ODF |
Driers
| Core : | Solid core | Core Size : | 08 cu.in. |
|---|---|---|---|
| Flow Capacity kW : | R32: 33.2, R134a: 21.8, R290: 26.2, R404A: 15.3, R407C: 22.3, R410A: 22.6, R507: 14.8 | Shell Volume : | 0.17 L |
| Solid Core Surface : | 18.29 in², 118 cm² | Solid Core Volume : | 3.57 in³, 59 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R32: 211, R134a: 250, R290: --, R404A: 261, R407C: 243, R410A: 227, R507: 273 | Drying Capacity 52°C (Drops of Water) : | R32: 194, R134a: 229, R290: --, R404A: 247, R407C: 224, R410A: 201, R507: 246 |
|---|
General Information
| Activated Alumina / Molec. Sieve. : | 0/100 % | Specification Key : | DML 084S |
|---|---|---|---|
| Type : | DML 084S |
Logistical Information
| Commodity Code : | 84212980 | Country Of Origin : | MEX |
|---|---|---|---|
| EAN : | 5702428155502 | Gross Weight : | 0.357 kg |
Material
| Body Material : | Steel | Connection Material : | Copper |
|---|
Measurements
| Volume : | 0.114 L | Weight : | 0.31 kg |
|---|
Oil
| Oil Type : | Oilfree applications |
|---|
Pressure
| Max Operating Pressure : | 46.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R407H, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R516A, R600, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | UL |
|---|
Temperature
| Temperature Range : | -40-70 °C |
|---|
Valves
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eliminator-hermetic-filter-drier-types-dml-and-dcl-ast-ai192386435941en-001403.pdf | Technical Literature | 2.1 MB | |
| pressure-safety-certificate-tssa-crn-0e24090-5123467890tny-ast-id443047199437-0101.pdf | Conformity Declaration | 14.01 MB | |
| manufacturer-s-declaration-danfoss-md-023u9601-ah-ast-id365946834721-0401.pdf | Conformity Declaration | 1.83 MB | |
| brochure-danfoss-solutions-for-air-handling-units-and-rooftops-en-ast-ad266360368911en-000101.pdf | Brochures | 3.9 MB | |
| installation-guide-dml-dcl-hermetic-filter-drier-ast-an165086432065en-000601.pdf | Installation Manual | 408.13 KB | |
| mechanical-safety-certificate-ul-sa6398-ast-id366040936109-0201.pdf | Conformity Declaration | 548.69 KB | |
| manufacturer-s-declaration-danfoss-md-023z9610-aa-ast-id365946921787-0101.pdf | Conformity Declaration | 245.66 KB |
