Description

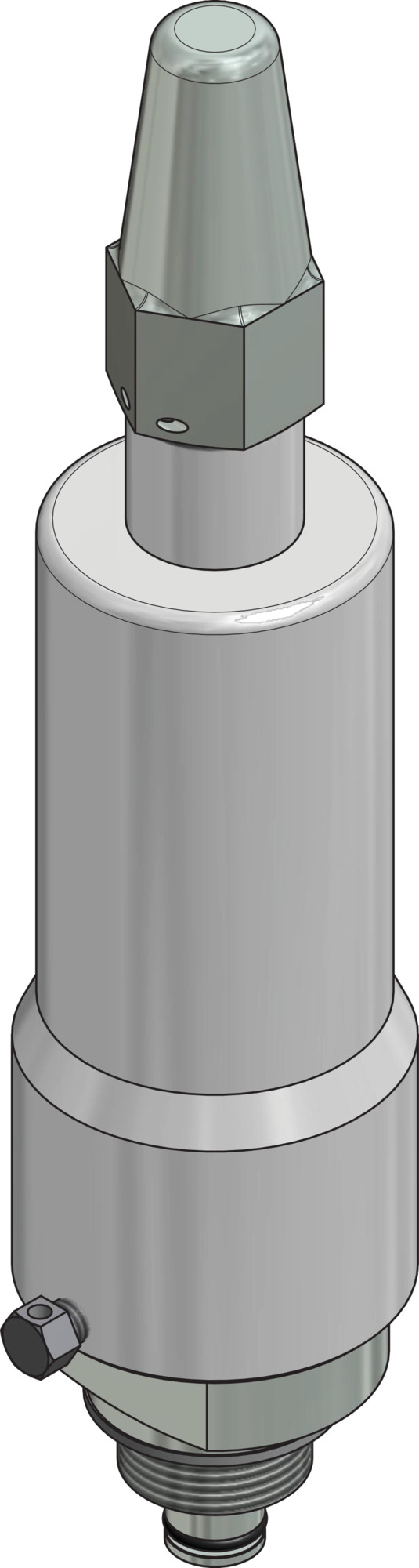

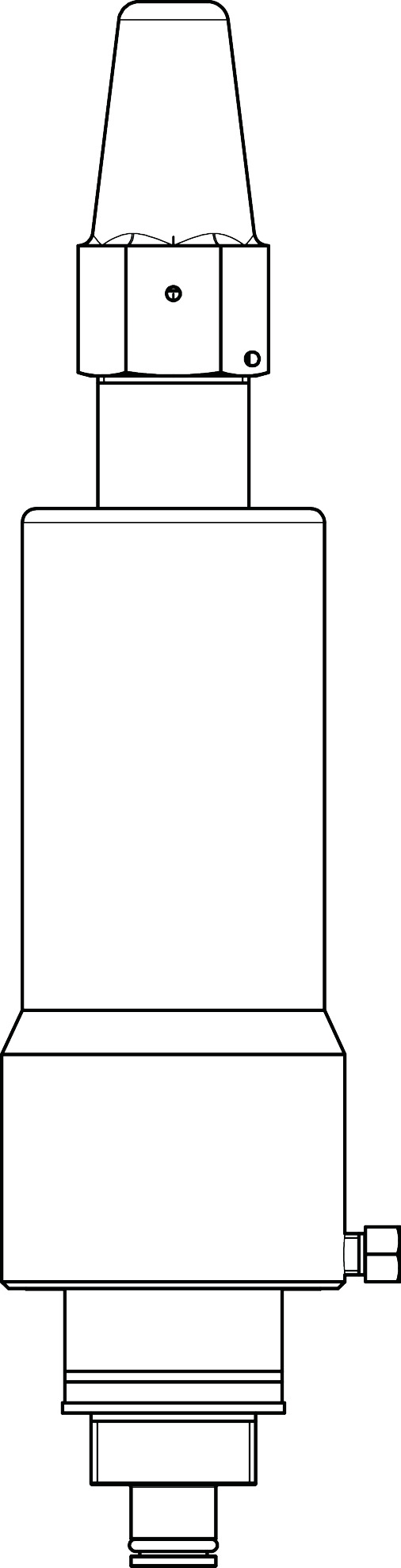

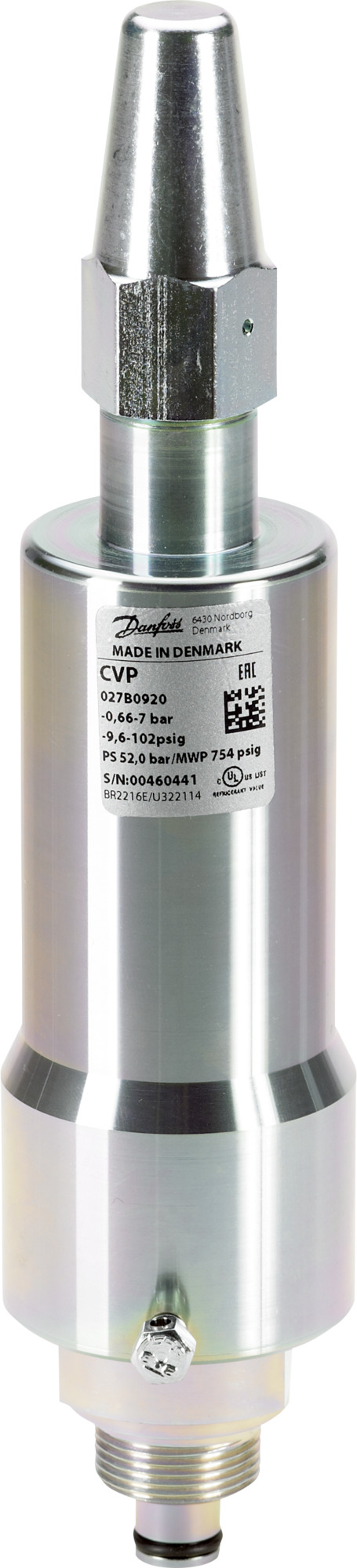

CVP Pilot valve -0,66 to 7 bar
CVP-L (-0.66 - 7 bar) (52 bar MWP)
Product number:
027B0920
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Additional Info
| Family : | ICS + CVP |
|---|
General Information
| Parts Included : | Gasket | Type : | CVP-L |
|---|
Kv Values
| Kv Value : | 0.400 m³/h |
|---|
Logistical Information
| Commodity Code : | 84814010 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428973236 | Gross Weight : | 1.608 kg |

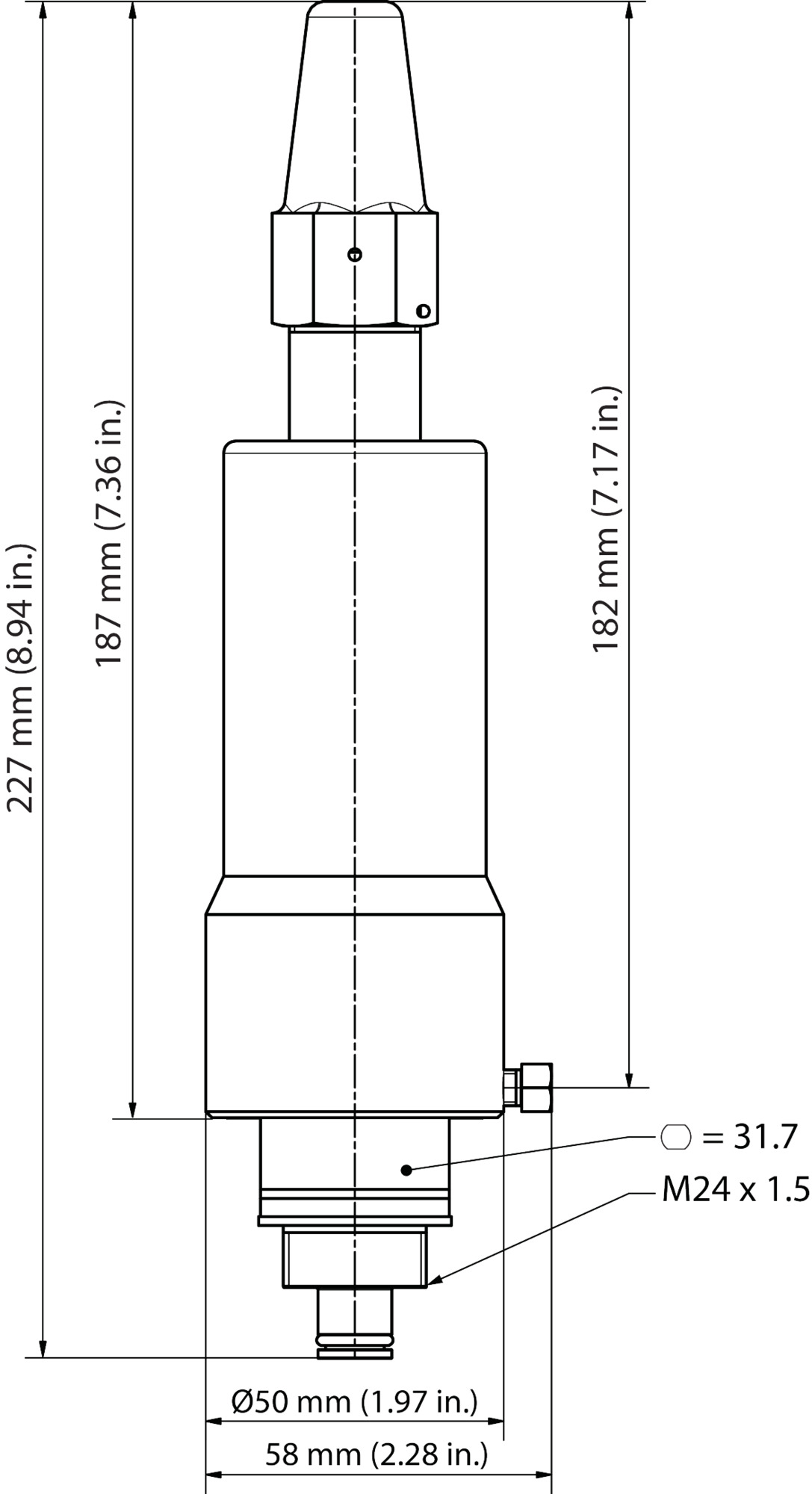

Measurements
| Net Weight : | 1.37 kg | Weight : | 1.37 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar | Pressure Range : | -0.66-7.00 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, UL |
|---|
Temperature
| Max Temperature : | 120 °C | Min Temperature : | -60 °C |
|---|---|---|---|
| Temperature Range : | -60-120 °C |
Valves
| CV Value : | 0.460 gal/min | Fluid Group : | 1 |
|---|---|---|---|
| Valve Version : | Low pressure |
