Description

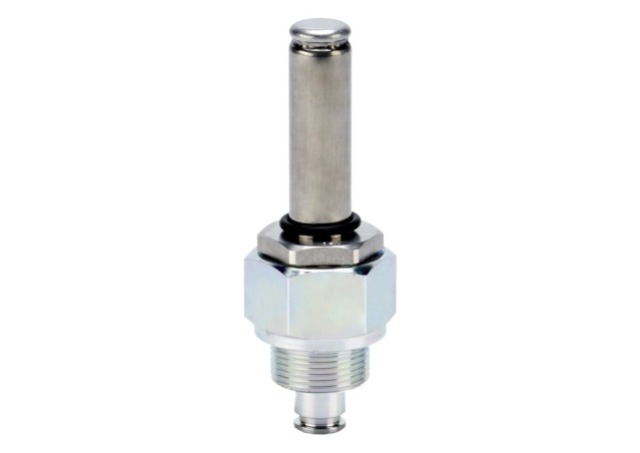

EVM PILOT VALVE NC MU 20
EVM (NC) (65 bar MWP)
Product number:
027B1120
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Additional Info
| Family : | ICS + EVM |
|---|
Coils
| Coil : | No |
|---|
Connections
| Connection Type : | Thread | Inlet Type : | Thread |
|---|
General Information
| Function : | NC | Model Number : | 027B1120 |
|---|---|---|---|
| Type : | EVM NC |
Kv Values
| Kv Value : | 0.280 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702422007128 | Gross Weight : | 0.252 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Net Weight : | 0.25 kg | Weight : | 0.25 kg |
|---|
Pressure
| Max OPD, 10W AC : | 21 Bar | Max Operating Pressure : | 65.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717, R744 |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature Range : | -40-80 °C | Medium Temperature Range : | -60-120 °C |
|---|
Valves
| Actuator Size : | 13.5 mm | CV Value : | 0.324 gal/min |
|---|---|---|---|
| Direction : | None | Orifice Size : | 3.30 mm |
| Valve Operation : | SERVO-PISTON |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| pilot-valve-type-cvp-cvpp-cvc-cve-evm-and-cvh-ast-ai248786497190en-000701.pdf | Technical Literature | 3.63 MB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| pilot-valve-type-cvp-cvpp-cvc-cve-evm-and-cvh-ast-ai248786497190en-000801.pdf | Technical Literature | 3.63 MB | |
| manufacturer-s-declaration-danfoss-md-033f0686-ao-ast-id365946903774-0801.pdf | Conformity Declaration | 488.98 KB | |
| marine-safety-certificate-dnv-taa0000085-rev-4-ast-id365840192944-0301.pdf | Conformity Declaration | 246.44 KB | |
| evra-and-evm-ast-an22218643295200-010101.pdf | Installation Manual | 491.4 KB |
