Description

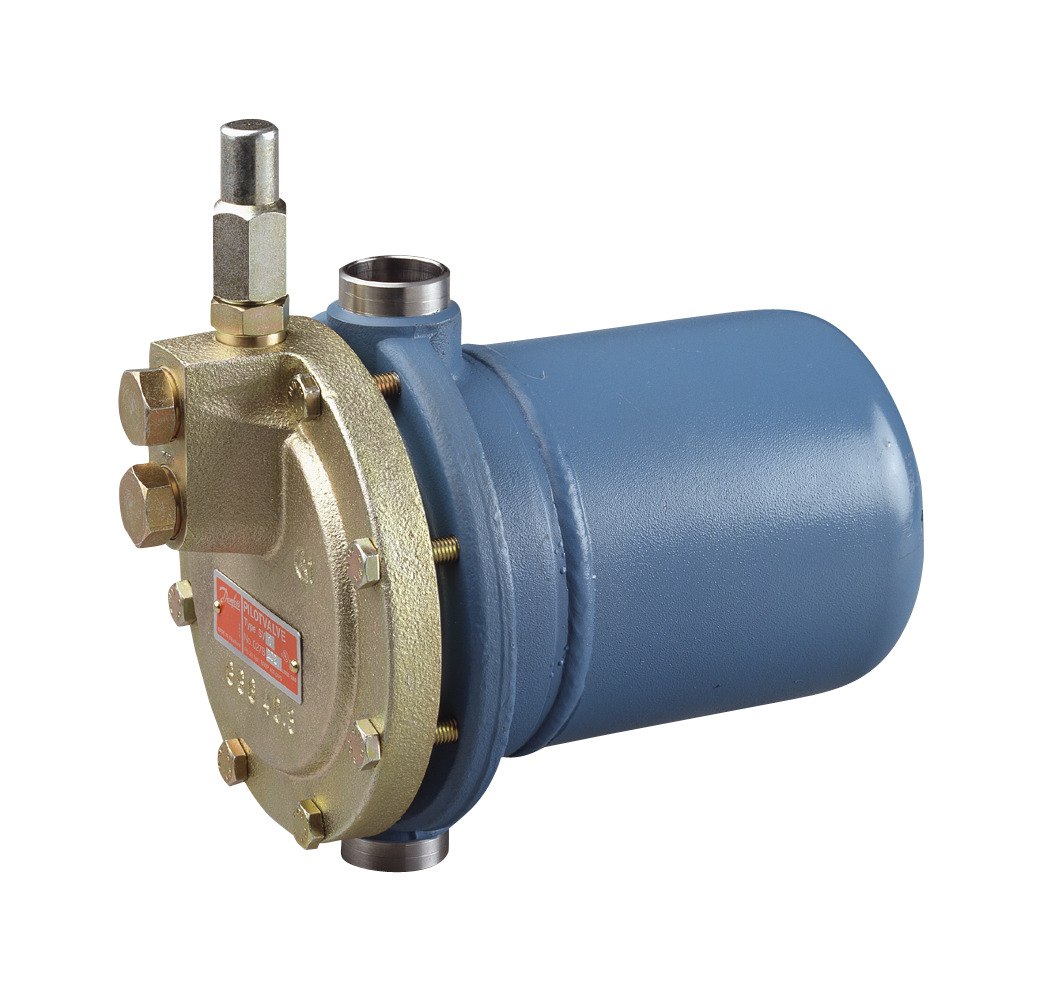

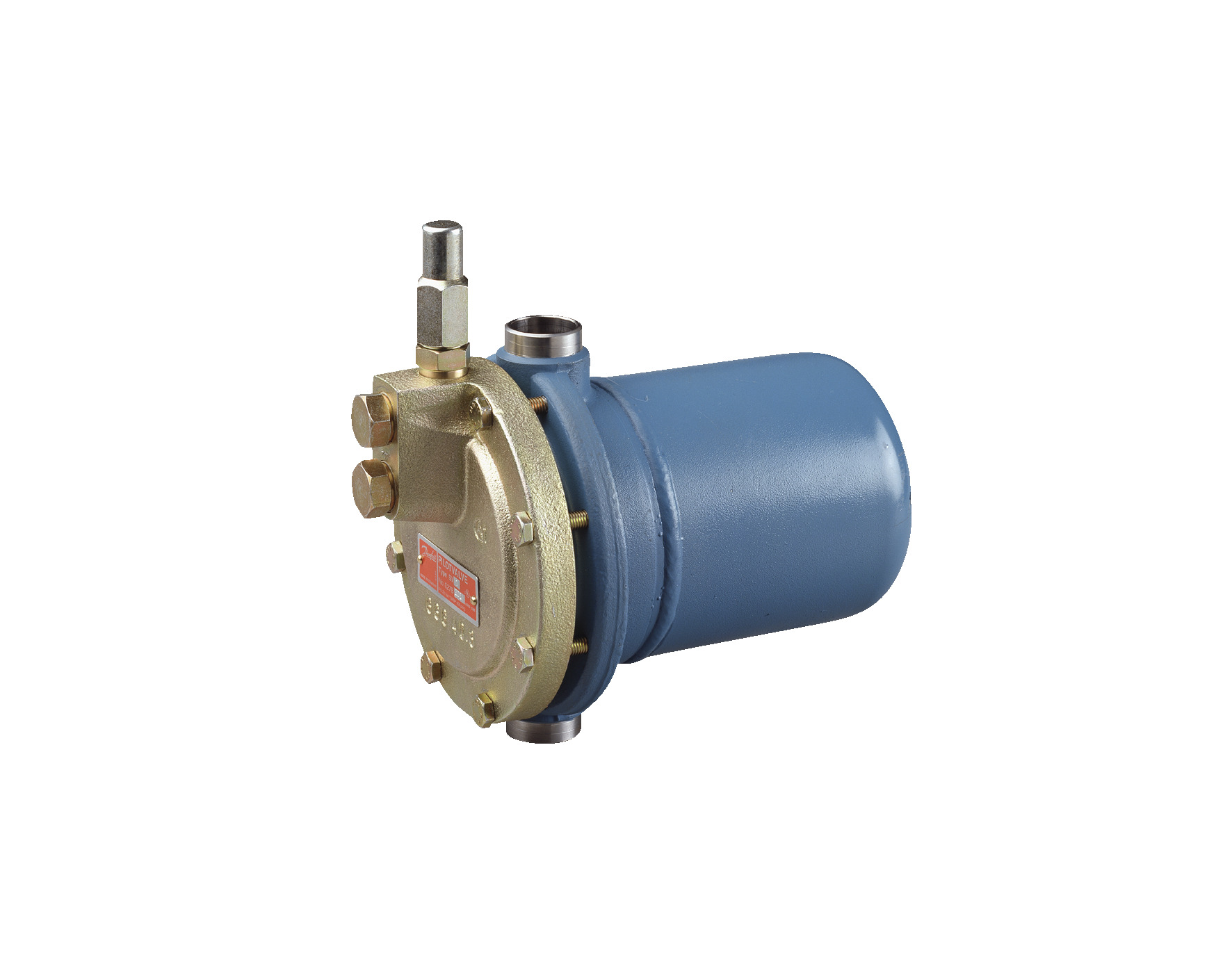

SV 3 Float valve
Danfoss SV3 25mm Float Reg.
Product number:
027B2023
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info
| Family : | SV LP |
|---|
General Information
| Type : | SV 3 |
|---|
Logistical Information
| Commodity Code : | 84818099 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702422036784 | Gross Weight : | 10.18 kg |

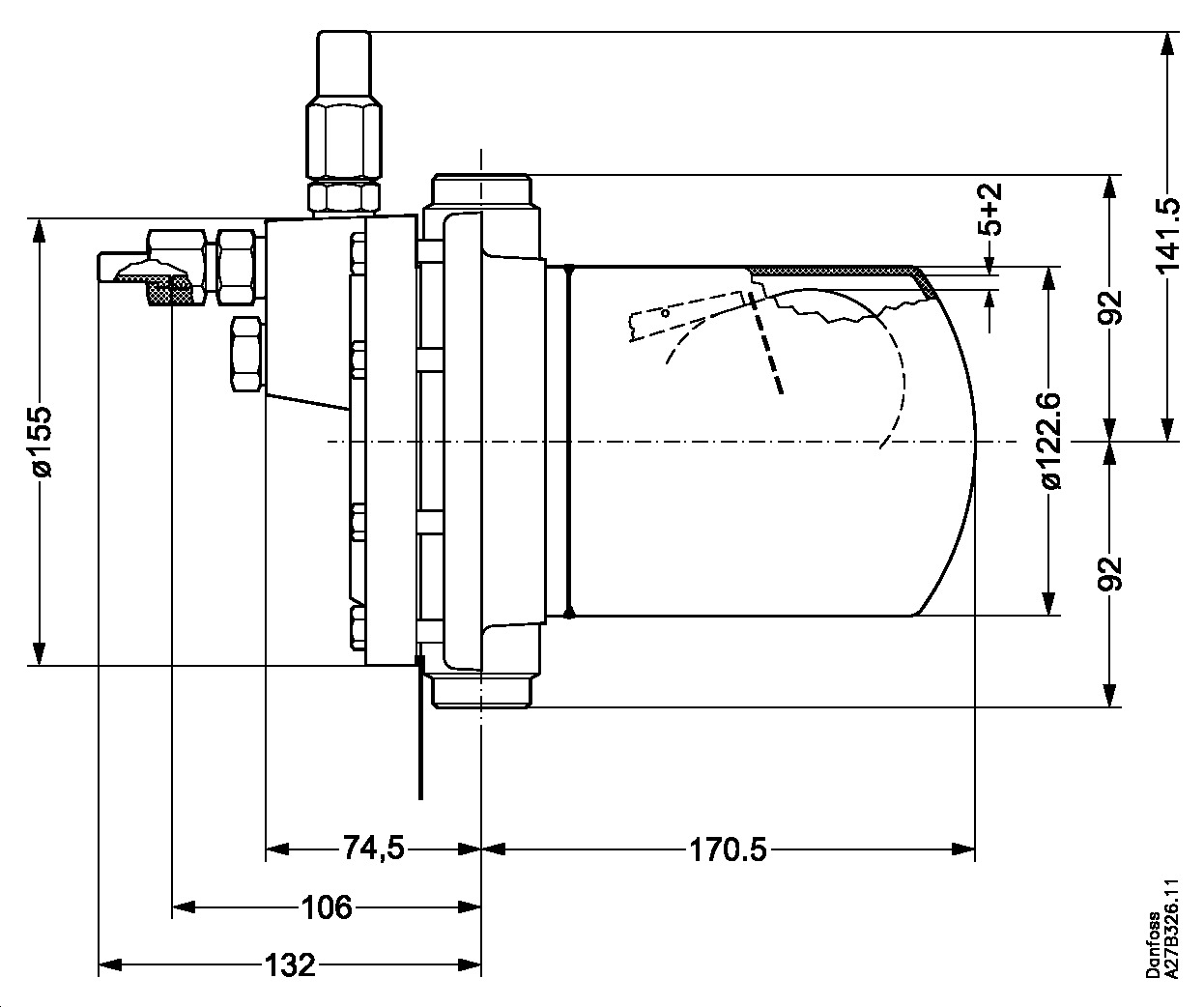

Measurements
| Weight : | 6.69 kg |
|---|
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA, UL |
|---|
Temperature
| Temperature Range : | -50-65 °C |
|---|
Valves
| Fluid Group : | 1, 2 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| float-valve-type-sv-1-and-sv-3-ast-ai221686430747en-001101.pdf | Technical Literature | 1.65 MB | |
| sv-complete-float-insert-ast-an14948641646900-000201.pdf | Installation Manual | 81.48 KB |
Spare Part
Product Number: 027B2056
Manufacturer Code: 027B2056
Product Number: 027B2045
Manufacturer Code: 027B2045
