Description

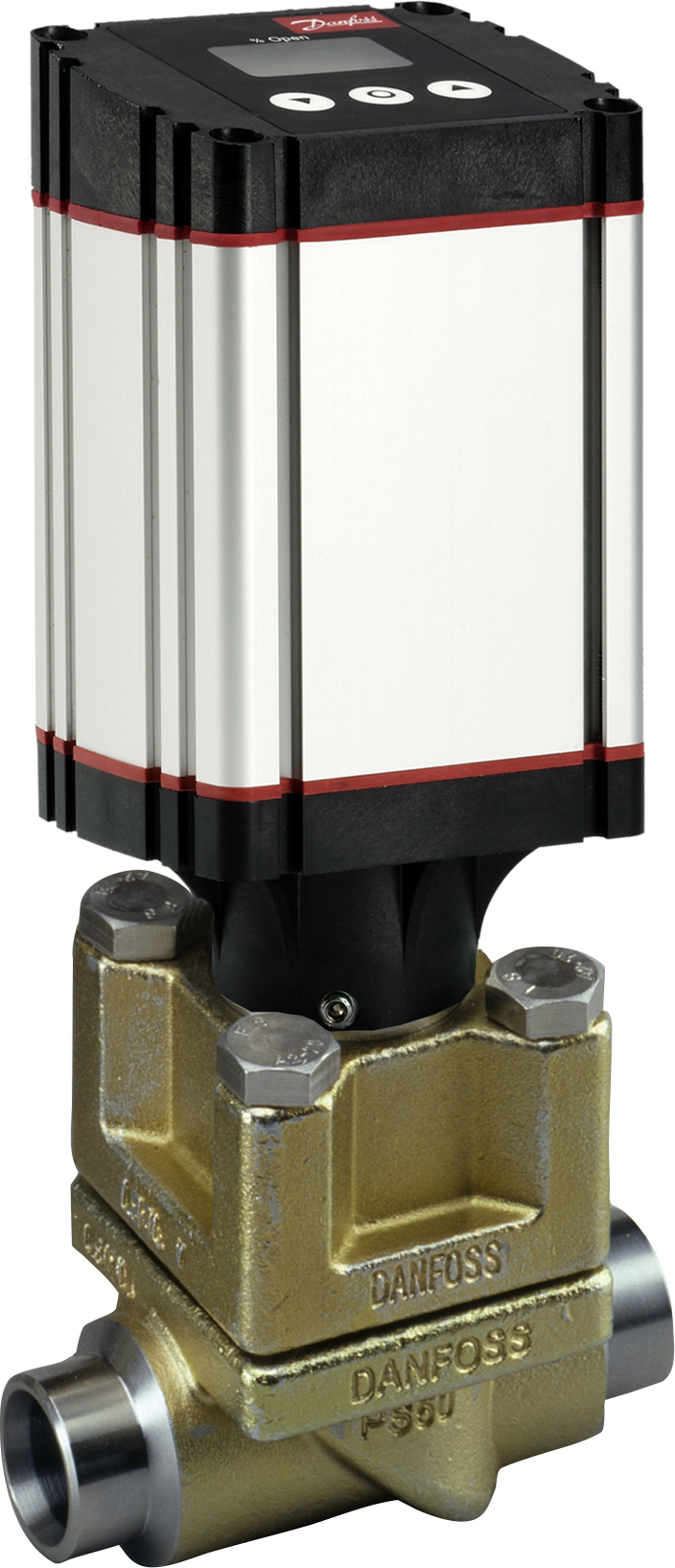

ICM 20-A 3/4 ANSI(20 A)
Product number:
027H1040
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Compatibility
| Lubricants Compatibility : | Oilfree applications |
|---|
Compressor
| PED Category : | Art. 3, par. 3 |
|---|
Connections
| Connection Standard : | ASME B 16.11 | Inlet Type : | Socket weld |
|---|---|---|---|
| Outlet Type : | Socket weld |
General Information
| Top Cover : | Actuator | Type : | ICM 20-A |
|---|
Kv Values
| Kv Value : | 0.6 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818073 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428237307 | Gross Weight : | 2.016 kg |
| Packaging Height : | 129 mm | Packaging Length : | 194 mm |
| Packaging Width : | 139 mm |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|---|---|---|
| Surface Coating : | Zn (TLP) |
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Oil Free Refrigerants : | R134a, R1234ze(E) | Refrigerant : | R22, R32, R125, R134a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, LLC CDC EURO-TYSK, UL |
|---|
Valves
| Actuator System : | ICAD motor, magnet coupling | CV Value : | 0.7 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 | MOPD : | 52 Bar |
| Open/Close Time : | 3 s | Valve Operation : | Motor operated |
| Valve Version : | Standard version |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| motor-operated-valve-icm-20----ast-an00008641851404-000901.pdf | Installation Manual | 1.52 MB |
