Description

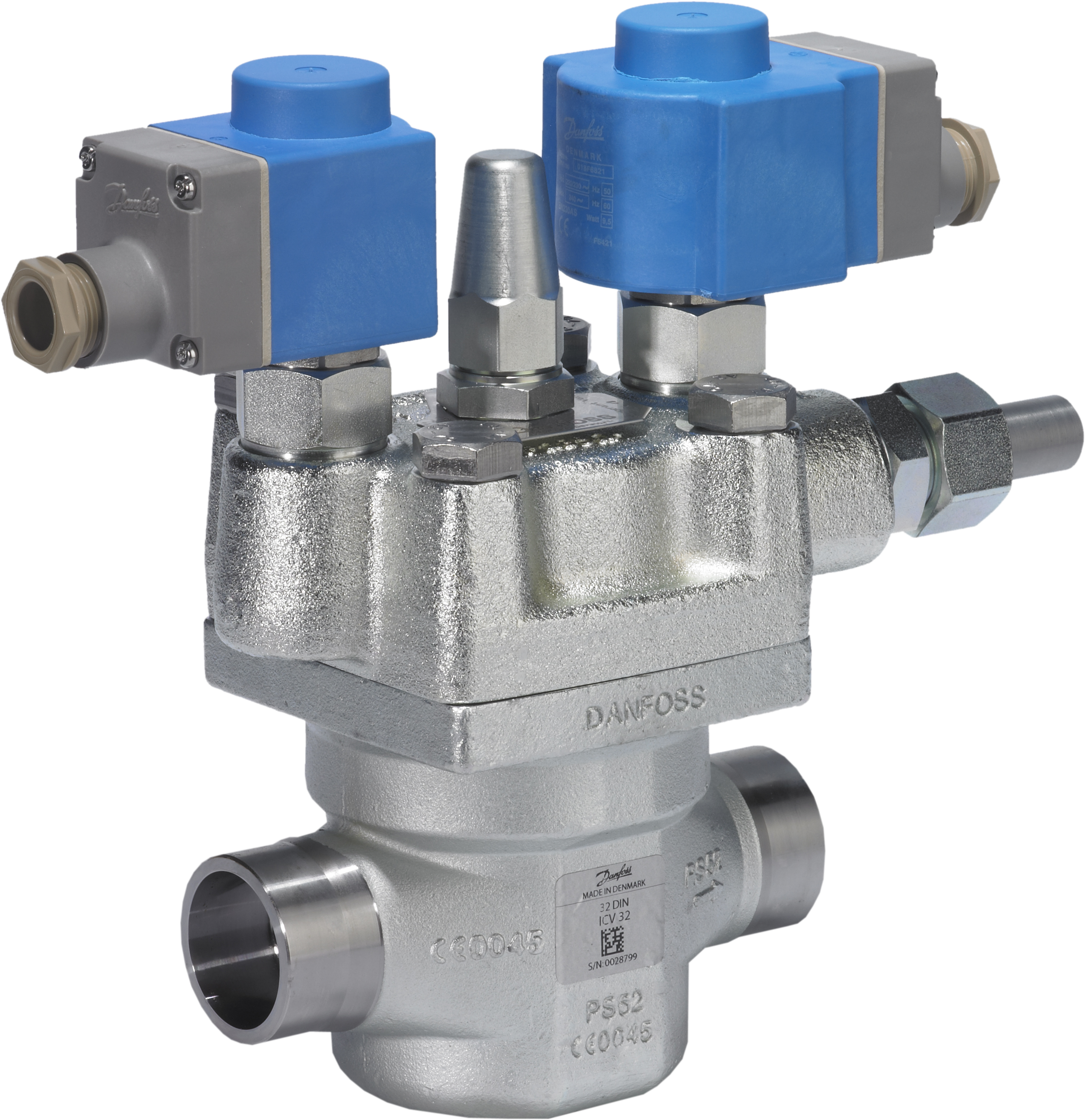

ICLX 50 SOC
Product number:
027H5042
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Compressor
| PED Category : | II |
|---|
Connections
| Connection Standard : | ASME B 16.11 | External Pilot Pressure Connection : | Weld nipple (P2 Port) |
|---|---|---|---|
| Inlet Type : | Socket weld | Outlet Type : | Socket weld |
General Information
| Type : | ICLX 50 |
|---|
Kv Values
| Kv Value : | 47 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818073 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428483131 | Gross Weight : | 14.821 kg |
| Packaging Height : | 180 mm | Packaging Length : | 396 mm |
| Packaging Width : | 284 mm |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|---|---|---|
| Surface Coating : | Zn (TLP) |
Pressure
| Max Operating Pressure : | 65.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R452C, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, TÜV, UL |
|---|
Valves
| Actuator System : | 2 EVM pilot sol valve module | CV Value : | 54.52 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 | Opening Configuration : | 1-step (optional setting); 2-step (default) |
| Valve Operation : | Solenoid operated | Valve Version : | Standard version |
