Description

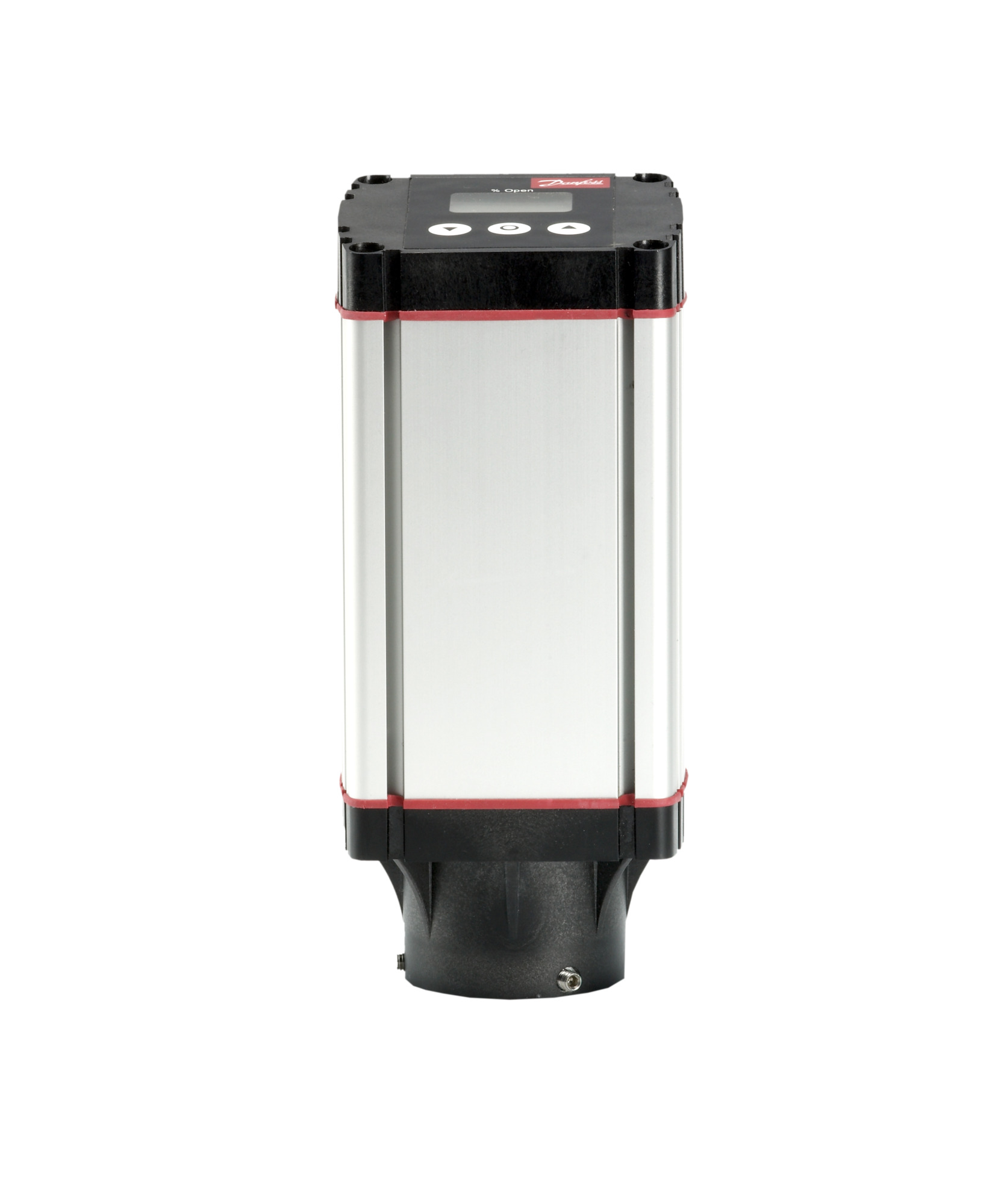

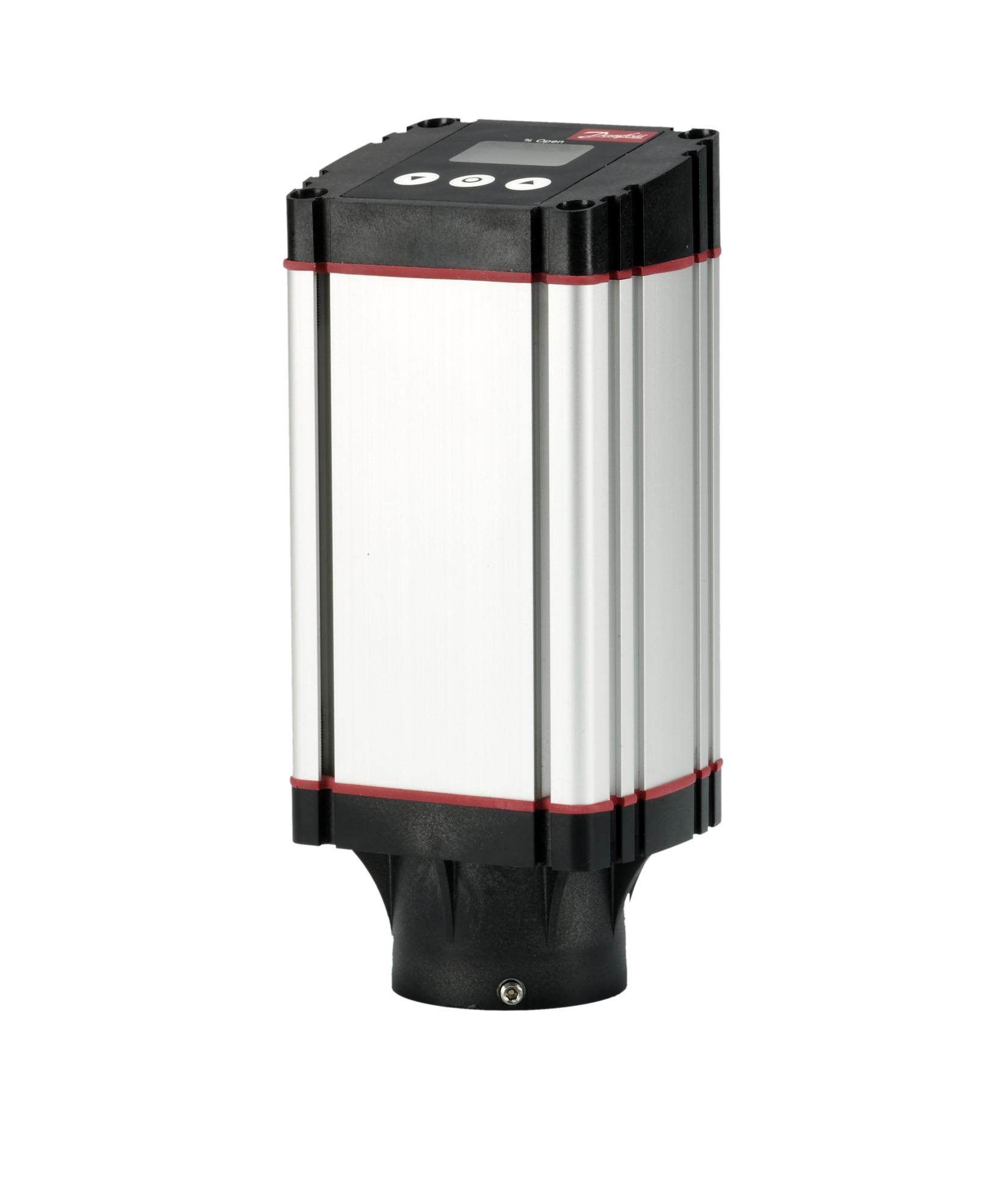

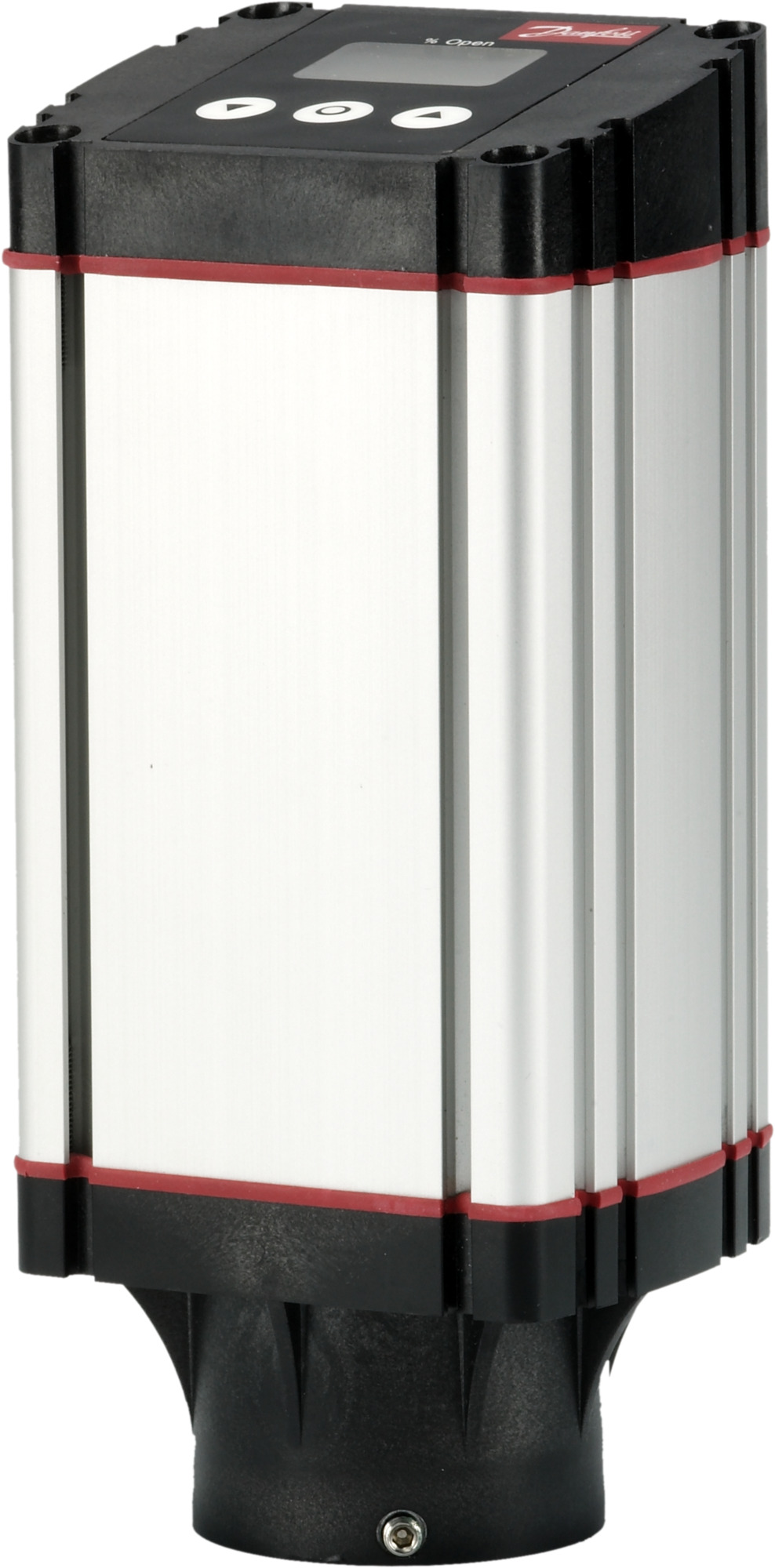

ICAD 600A-TS actuator with cables
Danfoss ICMTS ICAD 600TS
Product number:
027H9078
| Product Group : | Mech Controls - Valves |
|---|
General
| Product Group : | Mech Controls - Valves |
|---|
Additional Info
| Additional Info : | Digital Output: NPN Transistor | Family : | ICMTS |
|---|
Cable
| Cable Length : | 1.50 m, 60.00 in |
|---|
Compatibility
| Compatible Controllers : | EKC 326A |
|---|
Electrical
| IP Class : | IP67 | Voltage : | 24 V |
|---|
General Information
| Model Number : | 027H9078 | Type : | ICAD 600A-TS |
|---|---|---|---|
| Used For : | ICMTS 20 A33; ICMTS 20A; ICMTS 20B; ICMTS 20B66; ICMTS 20C |
Inputs/Outputs
| Digital Outputs (DO) : | 3 pc |
|---|
Logistical Information
| Commodity Code : | 85011099 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428889124 | Gross Weight : | 1.872 kg |
Measurements
| Net Weight : | 1.28 kg | Weight : | 1.28 kg |
|---|
Motor
| Motor Type : | Digital stepper mortor |
|---|
Standards
| Approval : | CE, CRN, EAC, LLC CDC TYSK, UKCA, UL |
|---|
Temperature
| Ambient Temperature Range : | -30-50 °C | Max Ambient Temperature : | 50 °C |
|---|---|---|---|
| Max Temperature : | 50 °C | Min Ambient Temperature : | -30 °C |
| Min Temperature : | -30 °C | Temperature Range : | -30-50 °C |
Valves
| Valve Operation : | Modulating; ON/OFF |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| actuator---icad-600a-icad-60-ast-an19798642980802-001001.pdf | Installation Manual | 2.48 MB | |
| colour-code-connection-diagram-ast-an149686416736en-000401.pdf | Installation Manual | 411.56 KB | |
| how-to-disable-encoder-function-in-icad-600ats-code-numbers-027h9078-and-027h9123-ast-an153086416616en-000101.pdf | Installation Manual | 214.13 KB |

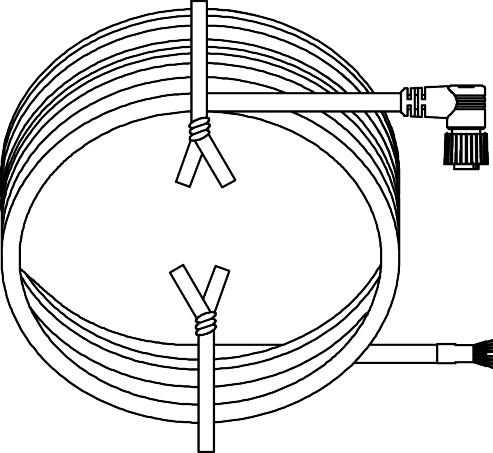

Accessory
Product Number: 027H0435
Manufacturer Code: 027H0435
Product Number: 027H0431
Manufacturer Code: 027H0431
