Description

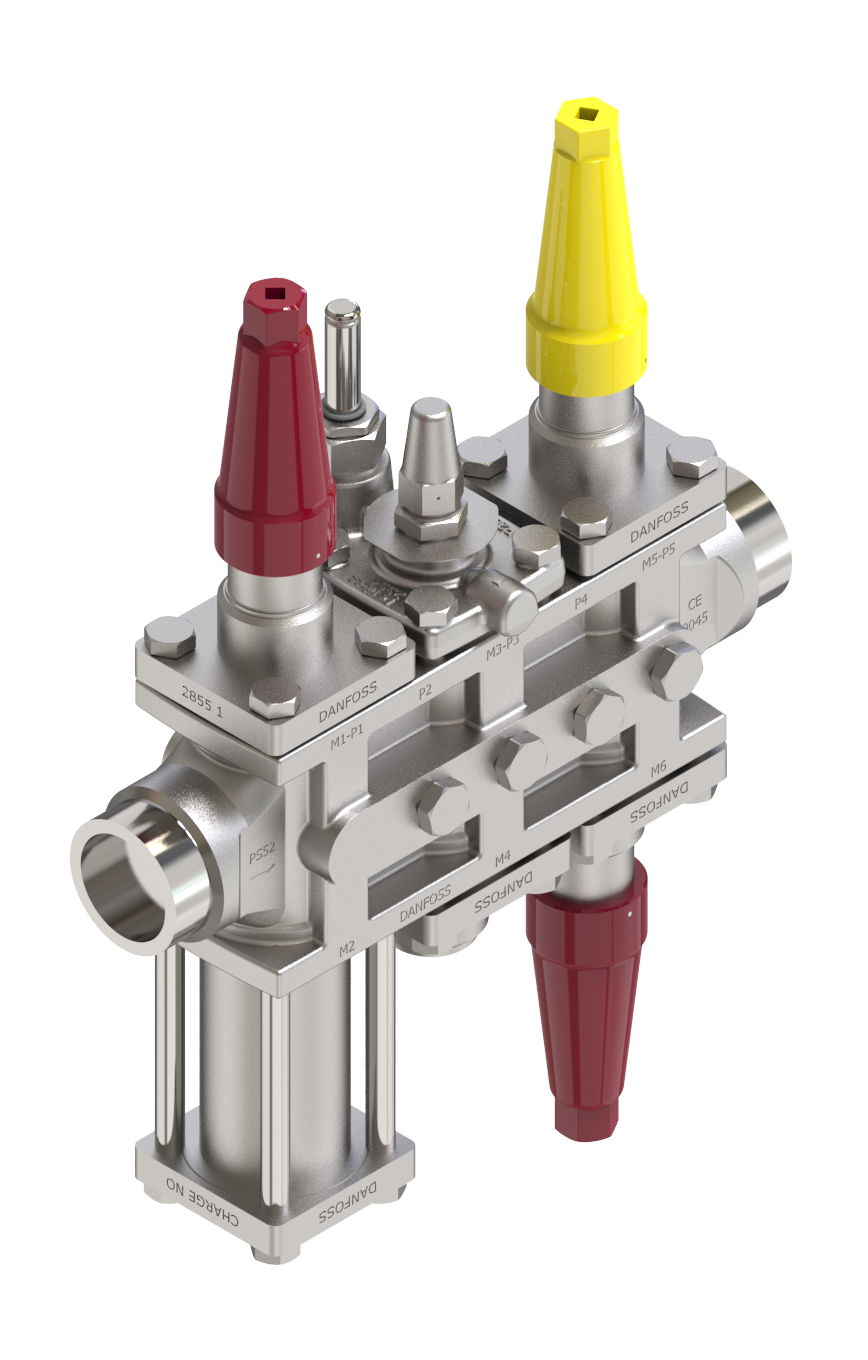

Danfoss ICF 25-6-3RB Valve Station
Product number:
027L4035
| Product Group : | Industrial Controls - Liquid Flow Regulators |
|---|
General
| Product Group : | Industrial Controls - Liquid Flow Regulators |
|---|
Compressor
| PED Category : | II |
|---|
Connections
| Connection Standard : | ASME B 16.11 | Connection Type : | Socket weld |
|---|---|---|---|
| Side Port Placement : | P2-P4-P5-P7-P9-P10 |
General Information
| Equipment : | Cap | Module 1 : | Stop valve |
|---|---|---|---|
| Module 1 Type : | ICFS 25 | Module 2 : | Filter |
| Module 2 Type : | ICFF 25E | Module 3 : | Solenoid valve |
| Module 3 Type : | ICFE 25 | Module 4 : | Check valve |
| Module 4 Type : | ICFC 25 | Module 5 : | Manual regulating valve |
| Module 5 Type : | ICFR 25B | Module 6 : | Stop valve |
| Module 6 Type : | ICFS 25 | Type : | ICF 25-6-3RB |
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428238816 | Gross Weight : | 25.165 kg |
| Packaging Height : | 140 mm | Packaging Length : | 560 mm |
| Packaging Width : | 390 mm |
Material
| Body Material : | Steel | Surface Coating : | ZnCr04 |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, TÜV, UKCA, UL |
|---|
Valves
| Direction : | Straightway | Fluid Group : | 1 |
|---|
