Description

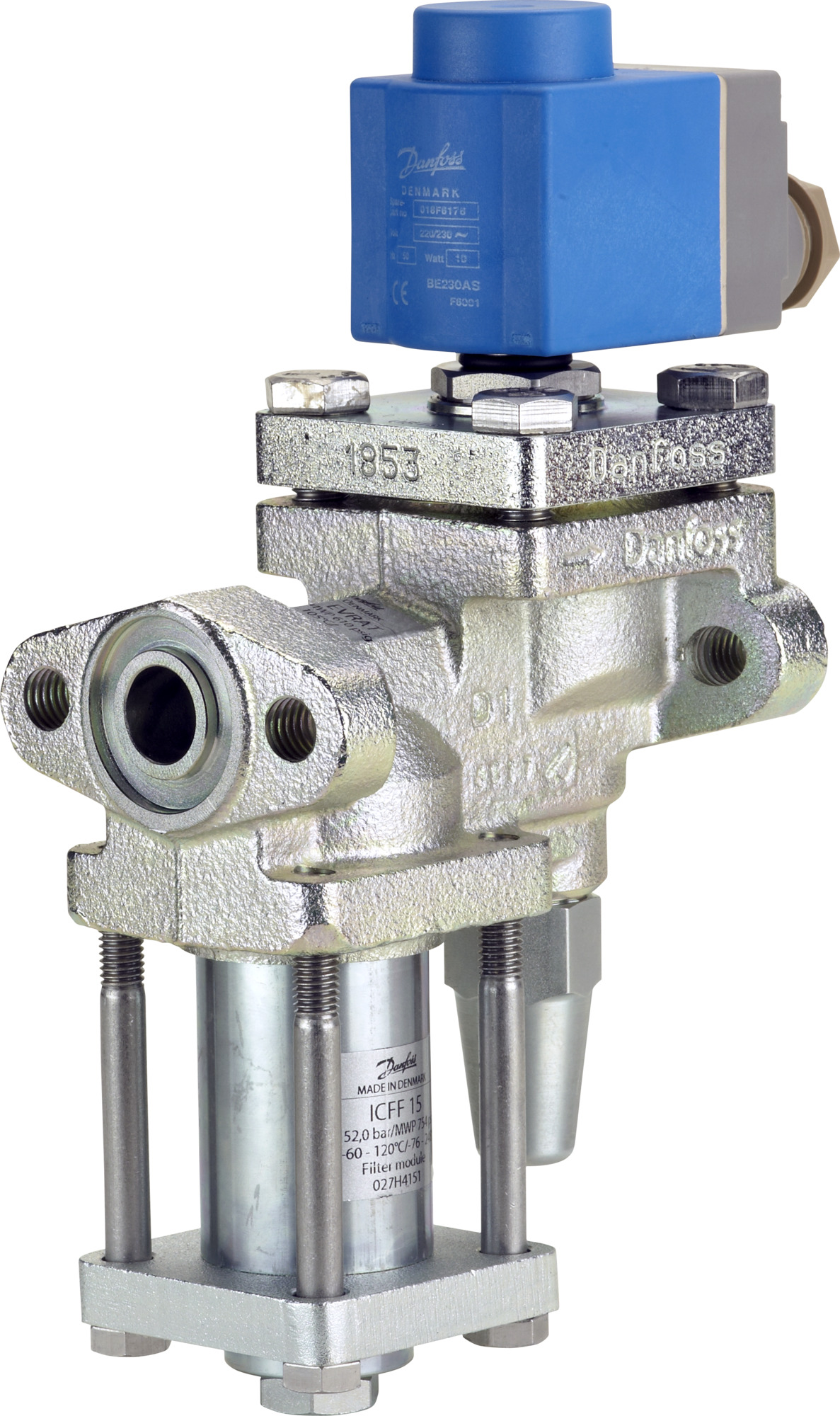

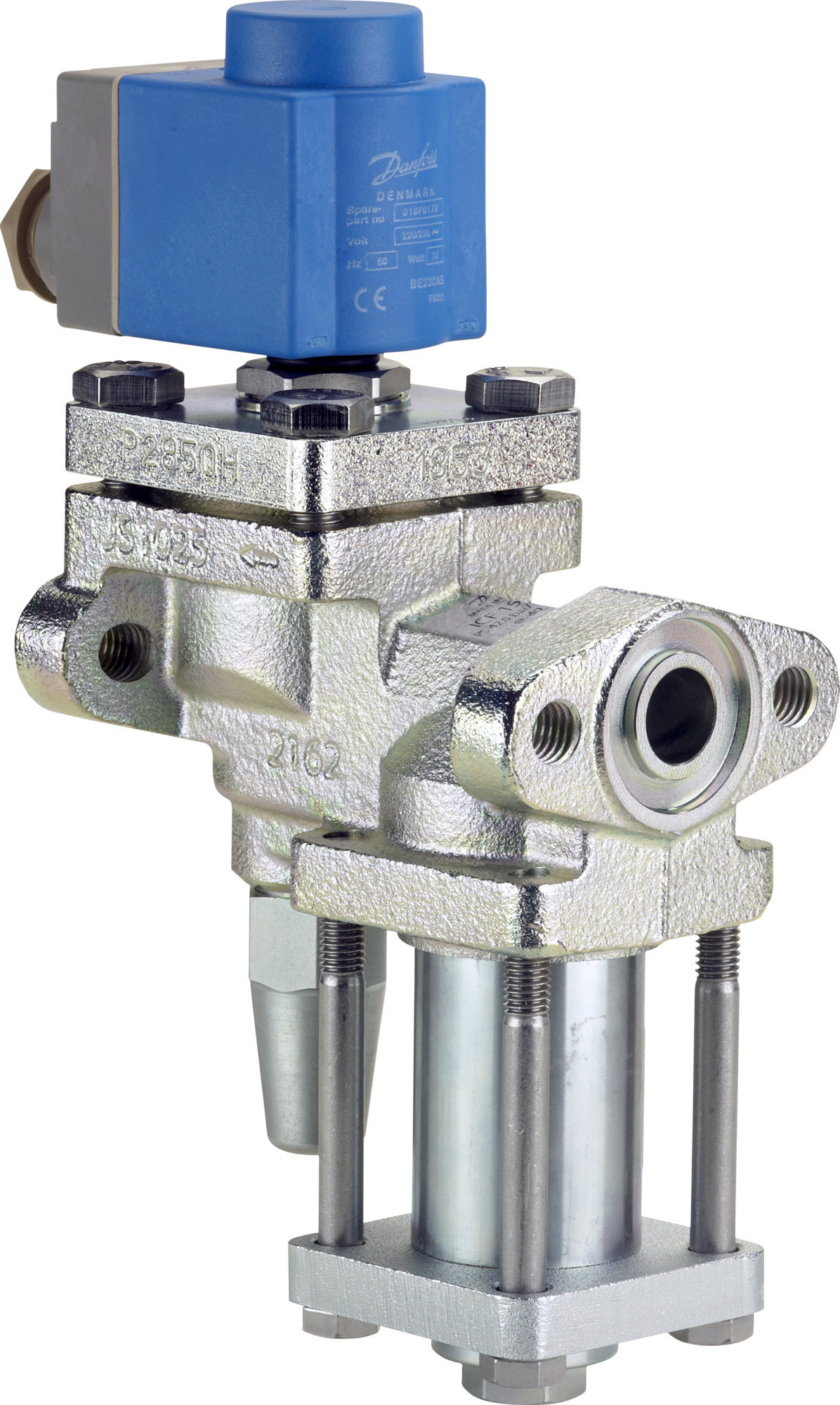

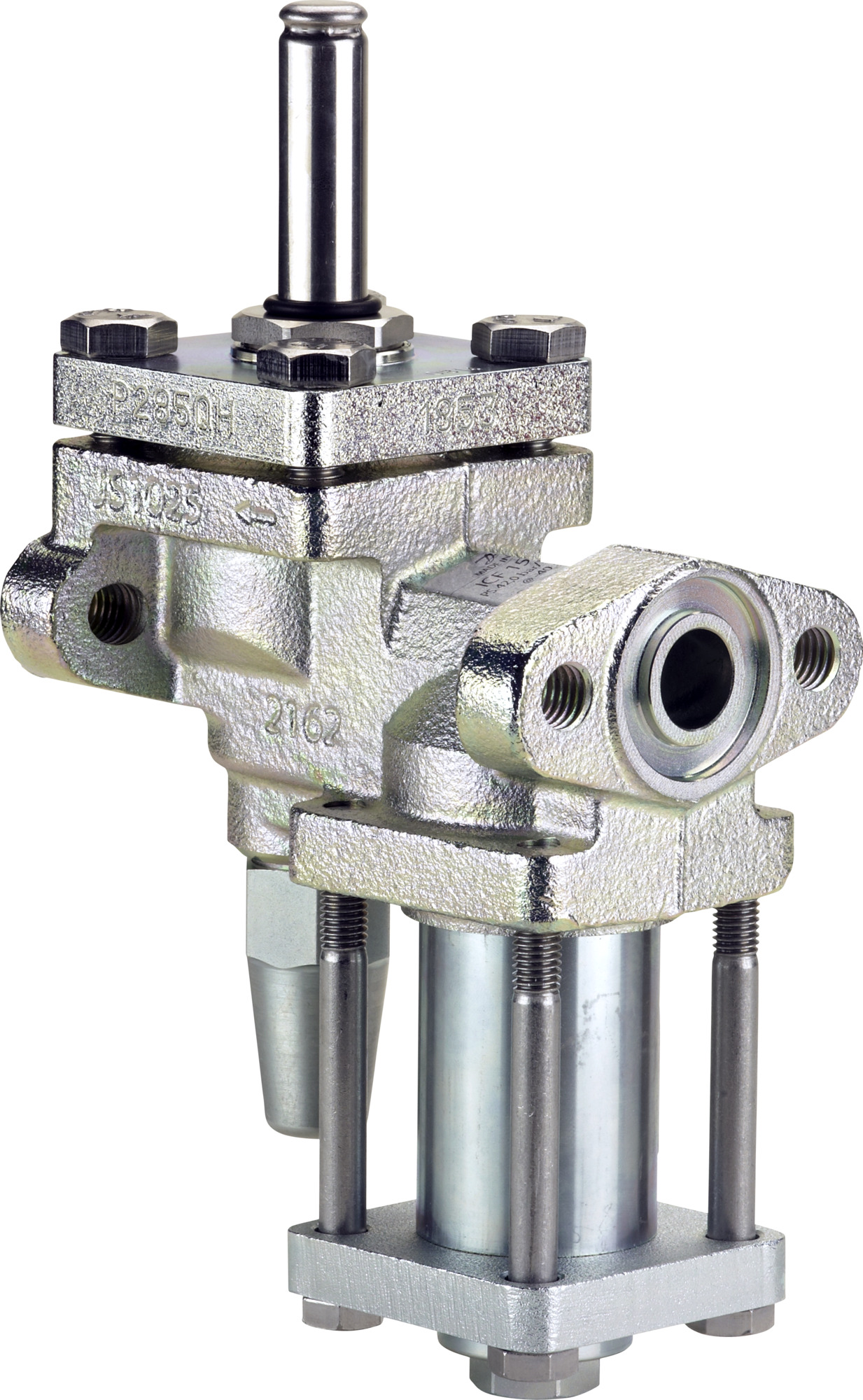

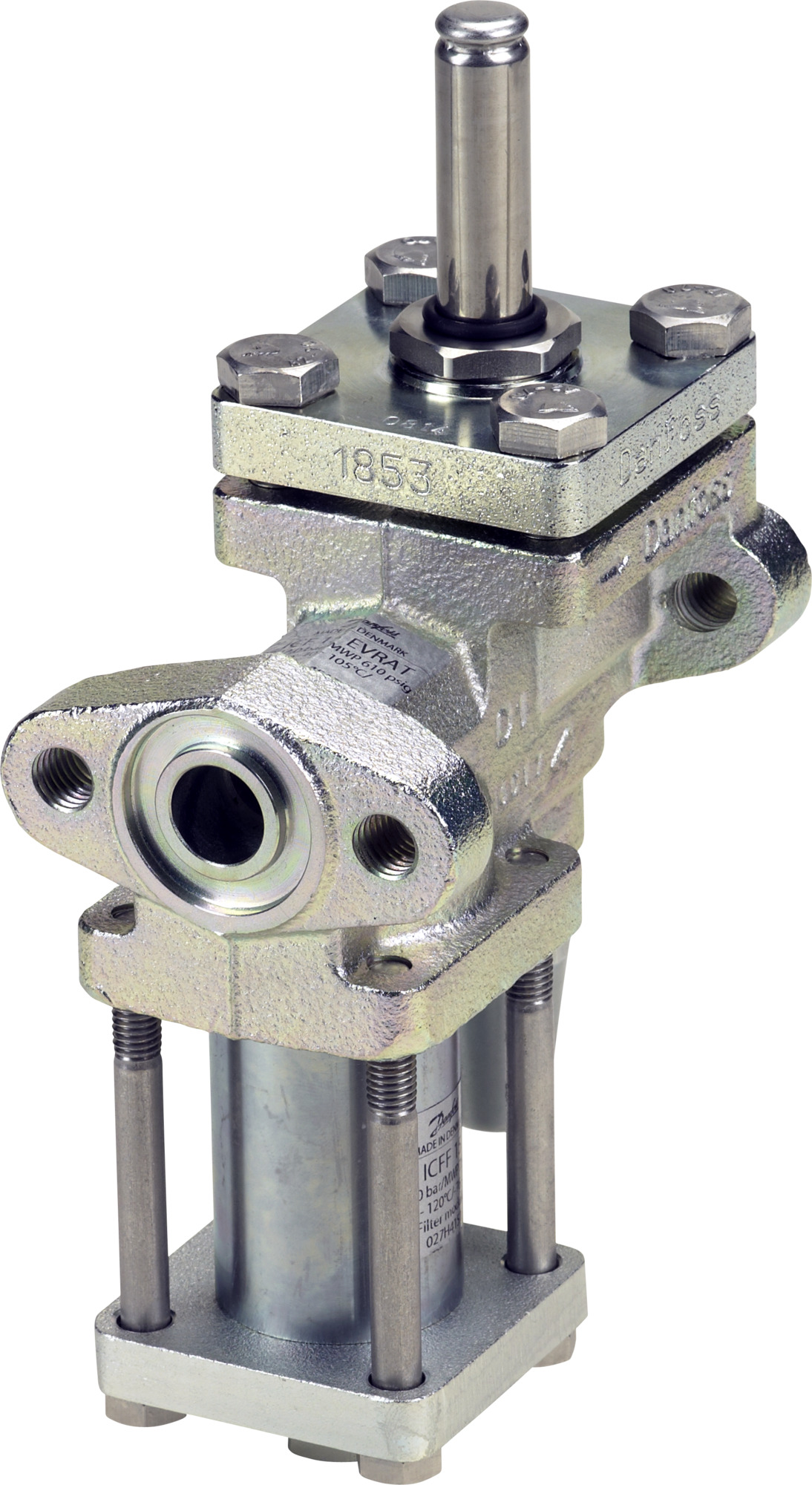

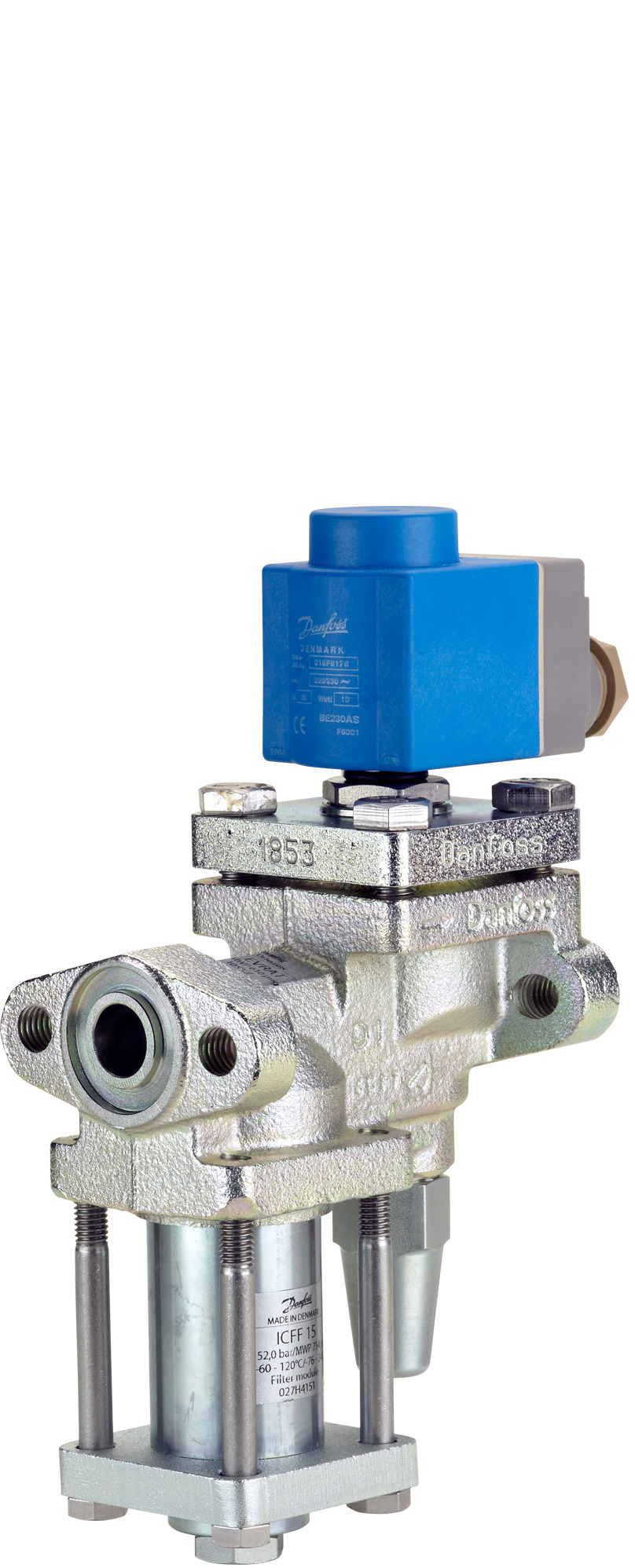

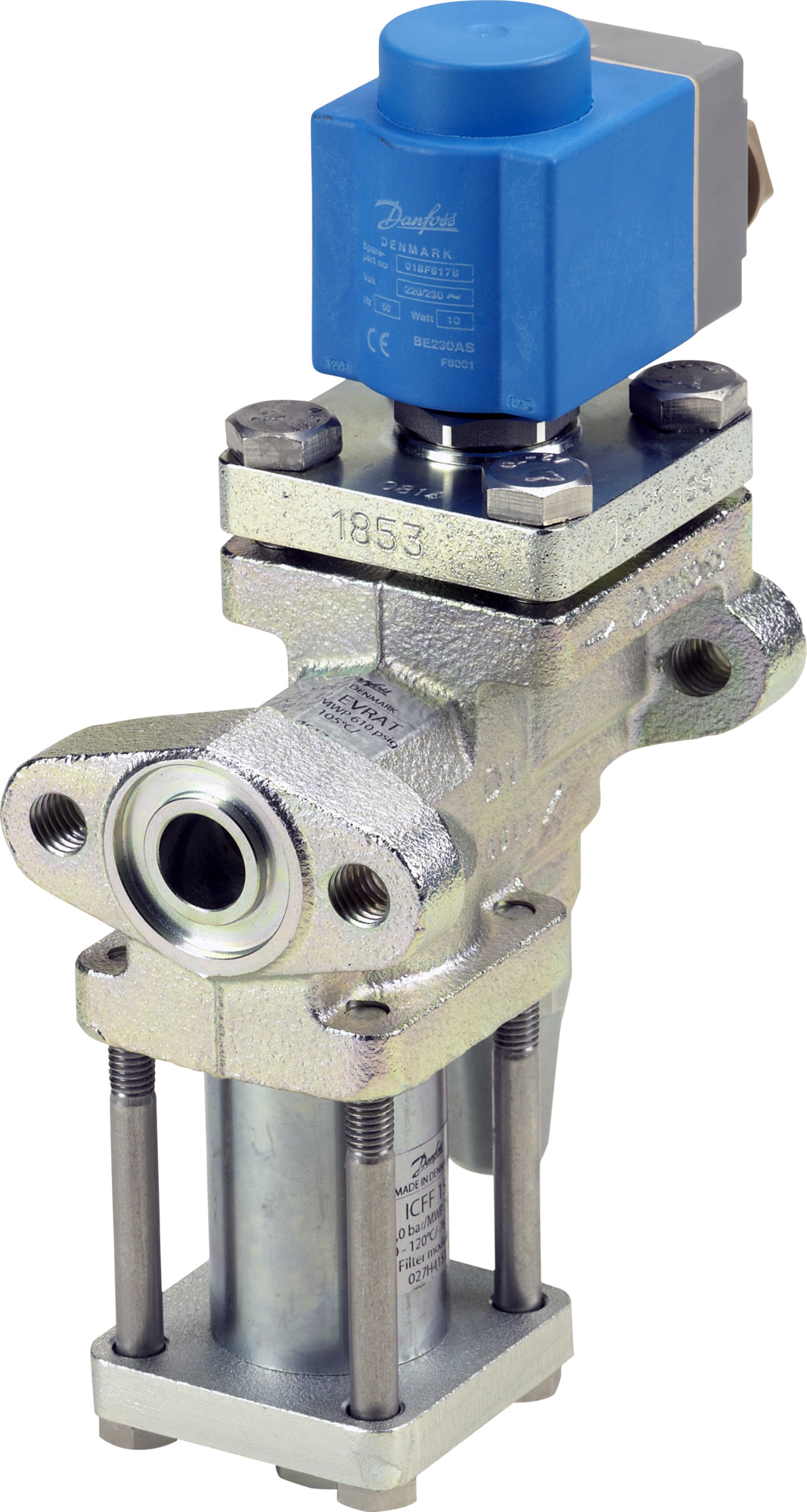

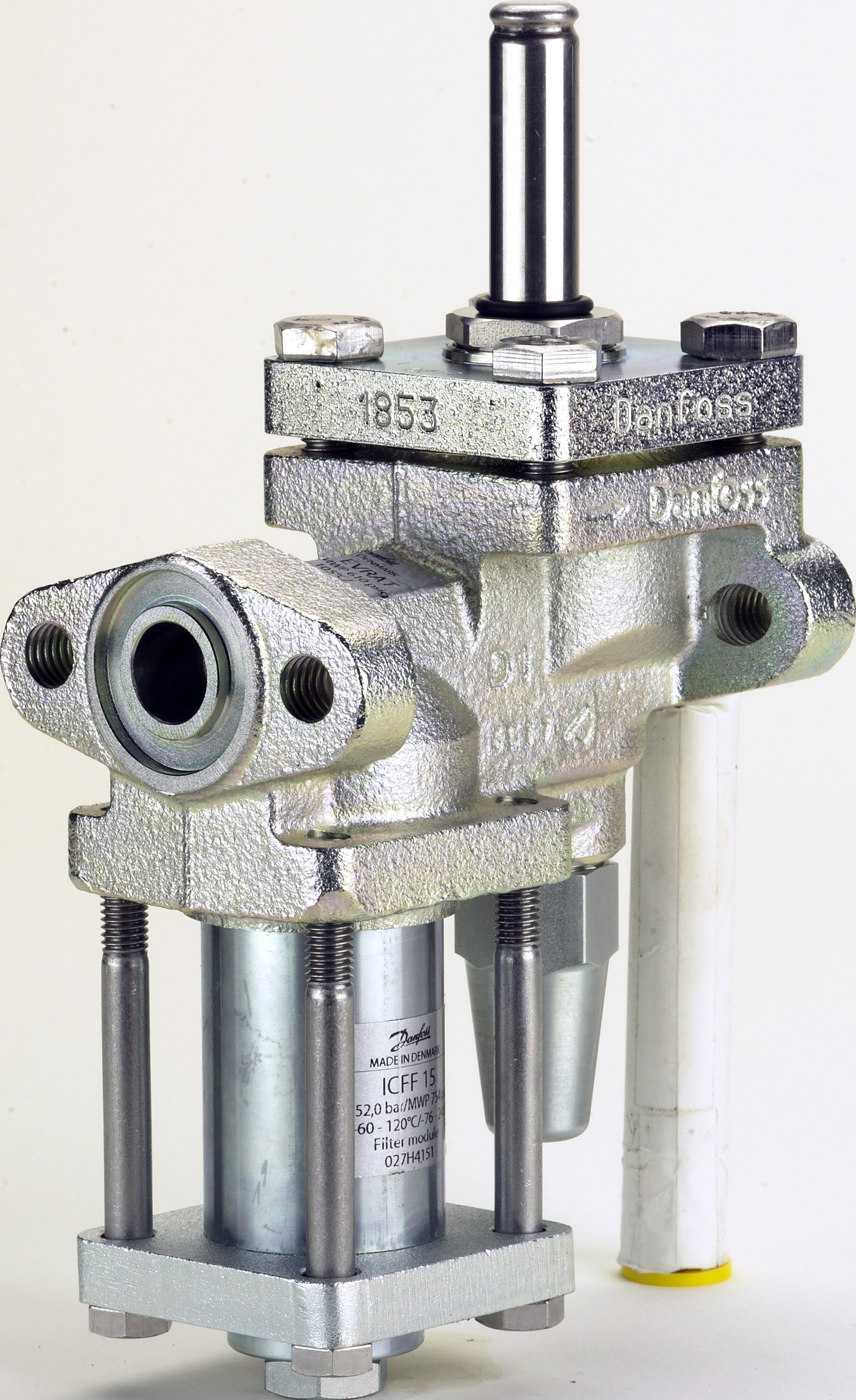

Valve Station ICF 15 EVRAT
Valve Station ICF 15 EVRAT
Product number:
027L4517
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info
| Family : | ICF EVRAT |
|---|
Connections
| Connection Size : | 1/2 in, 15 mm | Connection Type : | Flange |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428884143 | Gross Weight : | 3.683 kg |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|

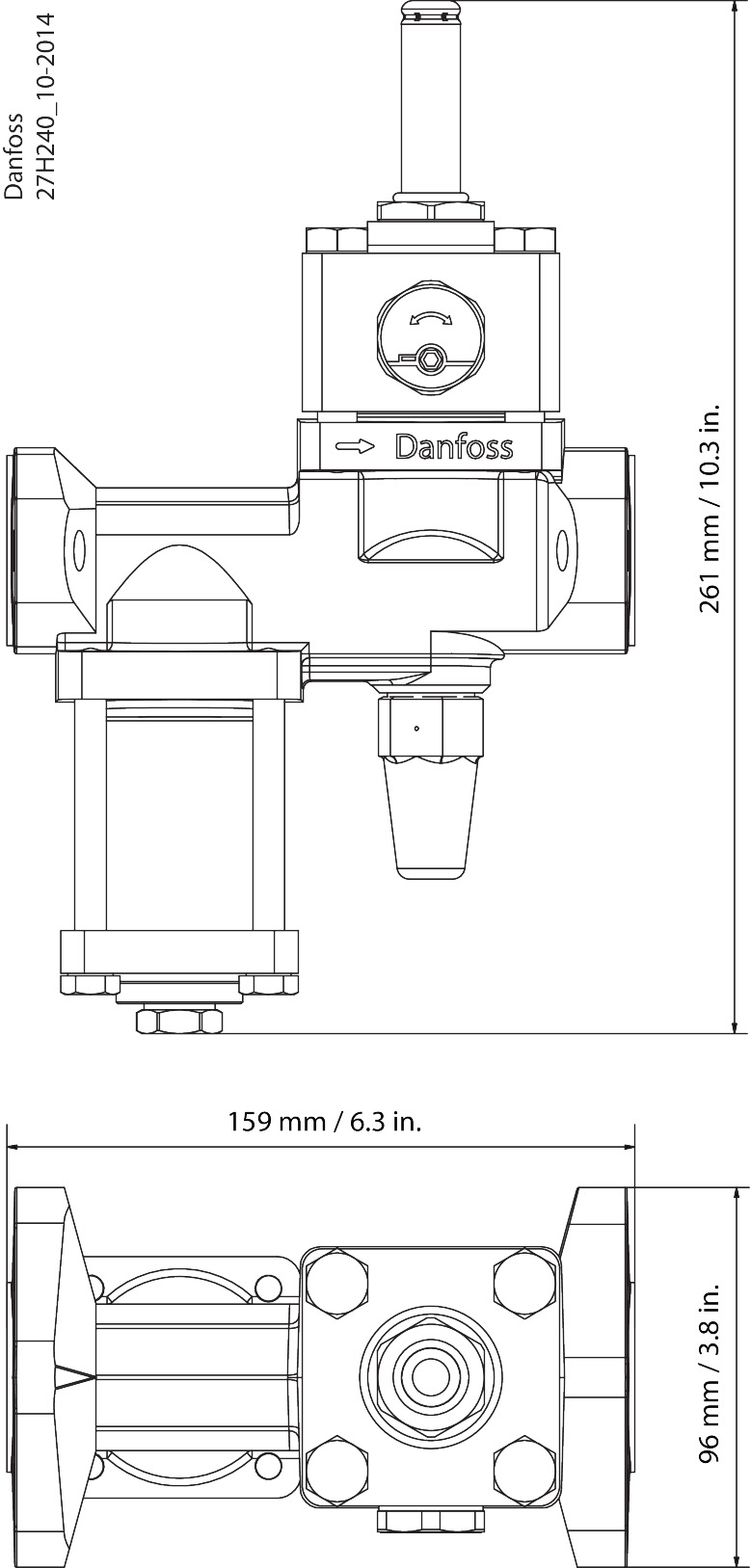

Measurements
| Weight : | 3.34 kg |
|---|
Pressure
| Max Operating Pressure : | 42.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | EAC, UL |
|---|
Temperature
| Temperature Range : | -40-105 °C |
|---|
Valves
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
|---|---|---|---|
| Fluid Group : | 1 |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| manufacturer-s-declaration-danfoss-md-033f0686-ao-ast-id365946903774-0801.pdf | Conformity Declaration | 488.98 KB | |
| brochure-refrigerant-options-now-and-in-the-future-en-ast-ad224586434178en-001001.pdf | Brochures | 2.69 MB | |
| brochure-icv-with-flanges-danfoss-now-makes-retrofit-easy-en-ast-ad186486440718en-000101.pdf | Brochures | 7.72 MB | |
| fa-solenoid-valve-icf-1520-evrat-ast-an13498641662002-000201.pdf | Installation Manual | 828.91 KB | |
| brochure-icf-control-your-installation-and-servicing-costs-and-be-ready-for-all-future-refrigerants-en-ast-ad208186443261en-000101.pdf | Brochures | 3.06 MB | |
| valve-station-type-icf-15-20-evrat-ast-ai183886420447en-000401.pdf | Technical Literature | 1.37 MB |
