"Danfoss Solenoid Valve EVRAT10 with manual operation AC/DC"
Item Number:
032F6214
| Max Operating Pressure : | 42.0 Bar |
|---|---|
| Product Group : | Solenoid Valves - Danfoss |
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
General Information
| Function : | NC |
|---|---|
| Product Group : | Solenoid Valves - Danfoss |
| Type : | EVRAT 10 |
Additional Info
| Family : | EVRAT |
|---|
Connections
| Connection Type : | Flange |
|---|---|
| Inlet Type : | Flange |
| Outlet Type : | Flange |
Kv Values
| Kv Value : | 1.500 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422177968 |
| Gross Weight : | 1.762 kg |
Material
| Body Material : | Cast iron |
|---|
Measurements
| Net Weight : | 1.54 kg |
|---|---|
| Weight : | 1.54 kg |
Pressure
| Max OPD, 10W AC : | 14 Bar |
|---|---|
| Max Operating Pressure : | 42.0 Bar |
| Min OPD : | 0.000 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature : | -40 - 80 °C |
|---|---|
| Ambient Temperature Range : | -40-80 °C |
| Medium Temperature Range : | -40-105 °C |
| Medium Temperature Range Note : | Defrost max 130°C/265°F |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 1.730 gal/min |
| Coil : | No |
| Direction : | Straightway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 10.00 mm |
| Valve Operation : | SERVO-DIAPHRAGM |
Product information
EVRAT is an assisted lift, servo operated solenoid valve for liquid, suction and hot gas lines with ammonia and fluorinated refrigerants.
EVRAT is specially designed to open - and stay open - at a pressure drop of 0 bar.
The EVRAT solenoid valve is thus suitable for use in all plant where the required opening differential pressure is 0 bar.

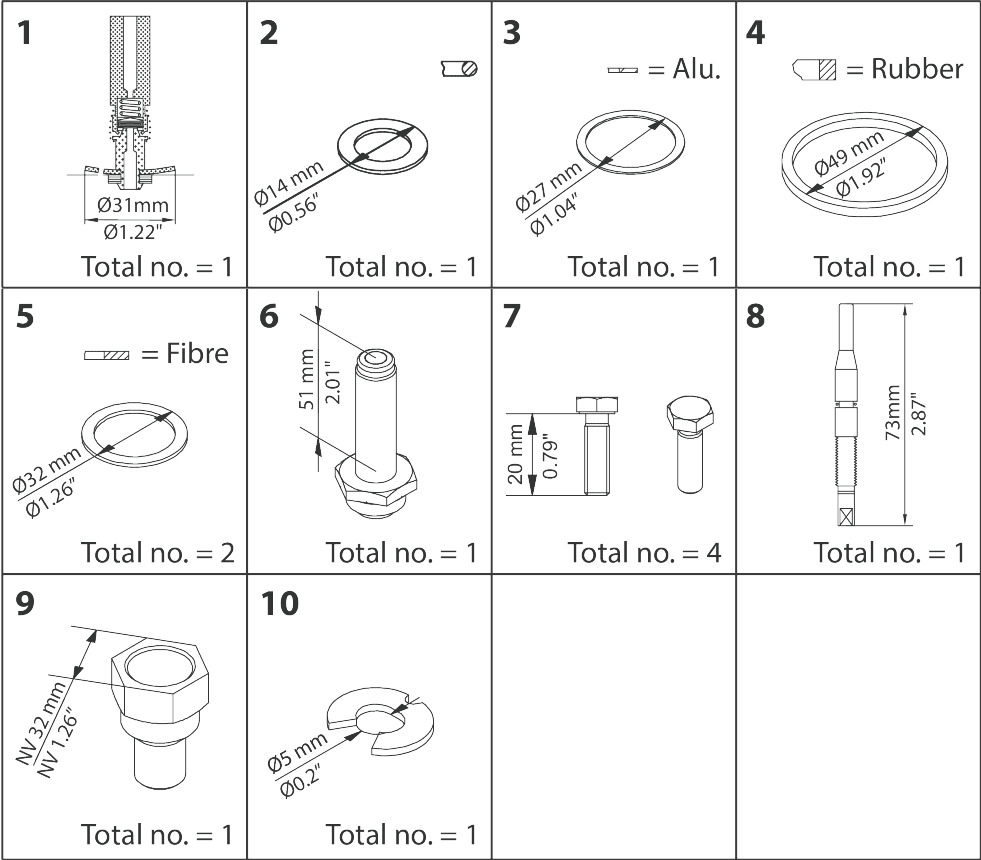

Spare Parts
