EVRAT is an assisted lift, servo operated solenoid valve for liquid, suction and hot gas lines with ammonia and fluorinated refrigerants.
EVRAT is specially designed to open - and stay open - at a pressure drop of 0 bar.
The EVRAT solenoid valve is thus suitable for use in all plant where the required opening differential pressure is 0 bar.
| Product Group : | Solenoid Valves - Danfoss |
|---|
| Family : | EVRAT |
|---|
| Coil : | No |
|---|
| Connection Type : | Flange | Inlet Type : | Flange |
|---|---|---|---|
| Outlet Type : | Flange |
| Function : | NC | Model Number : | 032F6219 |
|---|---|---|---|
| Type : | EVRAT 20 |
| Kv Value : | 4.500 m³/h |
|---|
| Commodity Code : | 84818079 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702422178132 | Gross Weight : | 2.696 kg |
| Body Material : | Cast iron |
|---|
| Net Weight : | 2.44 kg | Weight : | 2.44 kg |
|---|
| Max OPD, 10W AC : | 14 Bar | Max Operating Pressure : | 42.0 Bar |
|---|---|---|---|
| Min OPD : | 0.000 Bar |
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
| Ambient Temperature : | -40 - 80 °C | Ambient Temperature Range : | -40-80 °C |
|---|---|---|---|
| Medium Temperature Range : | -40-105 °C | Medium Temperature Range Note : | Defrost max 130°C/265°F |
| Actuator Size : | 13.5 mm | CV Value : | 5.200 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 20.00 mm | Valve Operation : | SERVO-DIAPHRAGM |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| solenoid-valve-type-evra-and-evrat-ast-ai221486430911en-021001.pdf | Technical Literature | 2.63 MB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| solenoid-valve-type-evra-and-evrat-ast-ai221486430911en-001101.pdf | Technical Literature | 2.7 MB | |
| marine-safety-certificate-dnv-taa0000085-rev-4-ast-id365840192944-0301.pdf | Conformity Declaration | 246.44 KB | |
| evra-3-20-evrat-10-20-ast-an23208643936400-000201.pdf | Installation Manual | 807.84 KB |

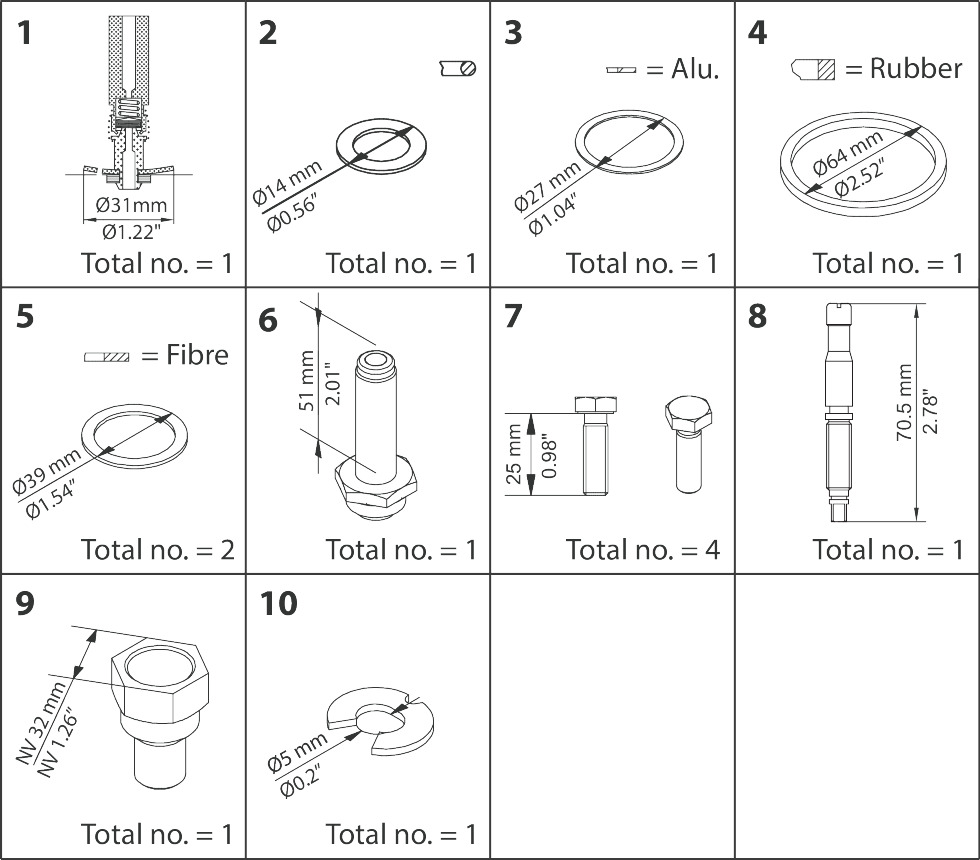

Spare Part
