Description

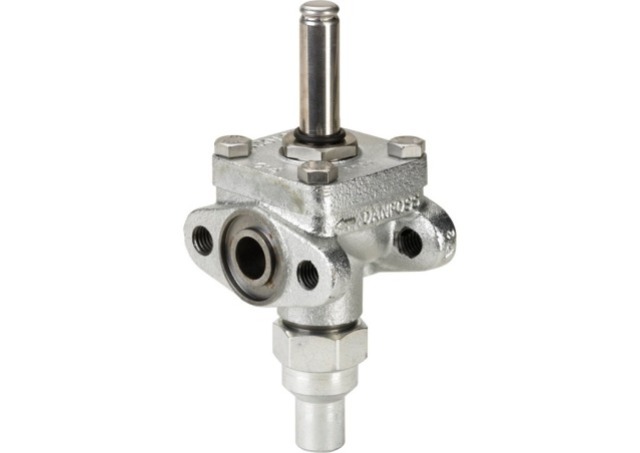

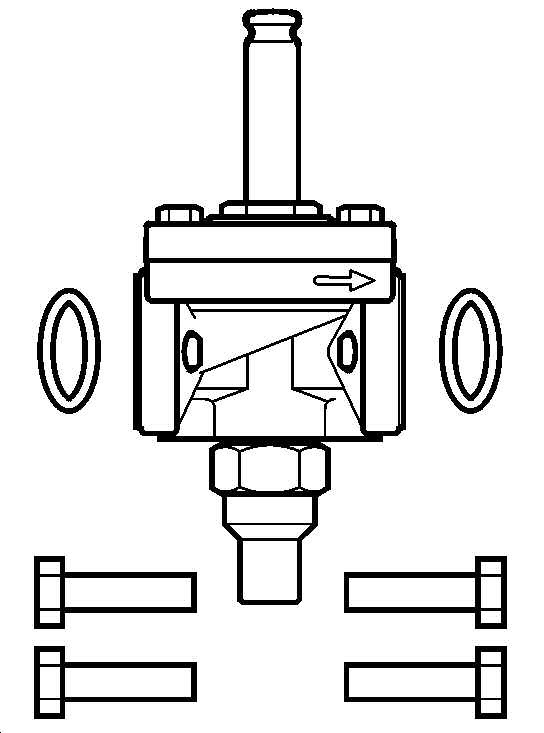

EVRA 25 Flange Valve a.c/d.c Singlep.
EVRA 25 MANUAL OPENING
Product number:
032F6225
| Product Group : | Solenoid Valves - Danfoss |
|---|
General
| Product Group : | Solenoid Valves - Danfoss |
|---|
Additional Info
| Family : | EVRA |
|---|
Coils
| Coil : | No |
|---|
Connections
| Inlet Type : | Flange | Outlet Type : | Flange |
|---|
General Information
| Function : | NC | Type : | EVRA 25 |
|---|
Kv Values
| Kv Value : | 10.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702422177722 | Gross Weight : | 3.276 kg |
Material
| Body Material : | Cast iron |
|---|
Measurements
| Net Weight : | 2.82 kg | Weight : | 2.82 kg |
|---|
Pressure
| Max OPD, 10W AC : | 21 Bar | Max Operating Pressure : | 42.0 Bar |
|---|---|---|---|
| Min OPD : | 0.200 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature : | -40 - 80 °C | Ambient Temperature Range : | -40-80 °C |
|---|---|---|---|
| Medium Temperature Range : | -40-105 °C | Medium Temperature Range Note : | Defrost max 130°C/265°F |
Valves
| Actuator Size : | 13.5 mm | CV Value : | 11.600 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 25.00 mm | Valve Operation : | SERVO-PISTON |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| solenoid-valve-type-evra-and-evrat-ast-ai221486430911en-021001.pdf | Technical Literature | 2.63 MB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| solenoid-valve-type-evra-and-evrat-ast-ai221486430911en-001101.pdf | Technical Literature | 2.7 MB | |
| marine-safety-certificate-dnv-taa0000085-rev-4-ast-id365840192944-0301.pdf | Conformity Declaration | 246.44 KB | |
| evra-and-evm-ast-an22218643295200-010101.pdf | Installation Manual | 491.4 KB | |
| electrical-safety-certificate-cqc-11002055287-ast-id365930140212-0101.pdf | Conformity Declaration | 560.74 KB |

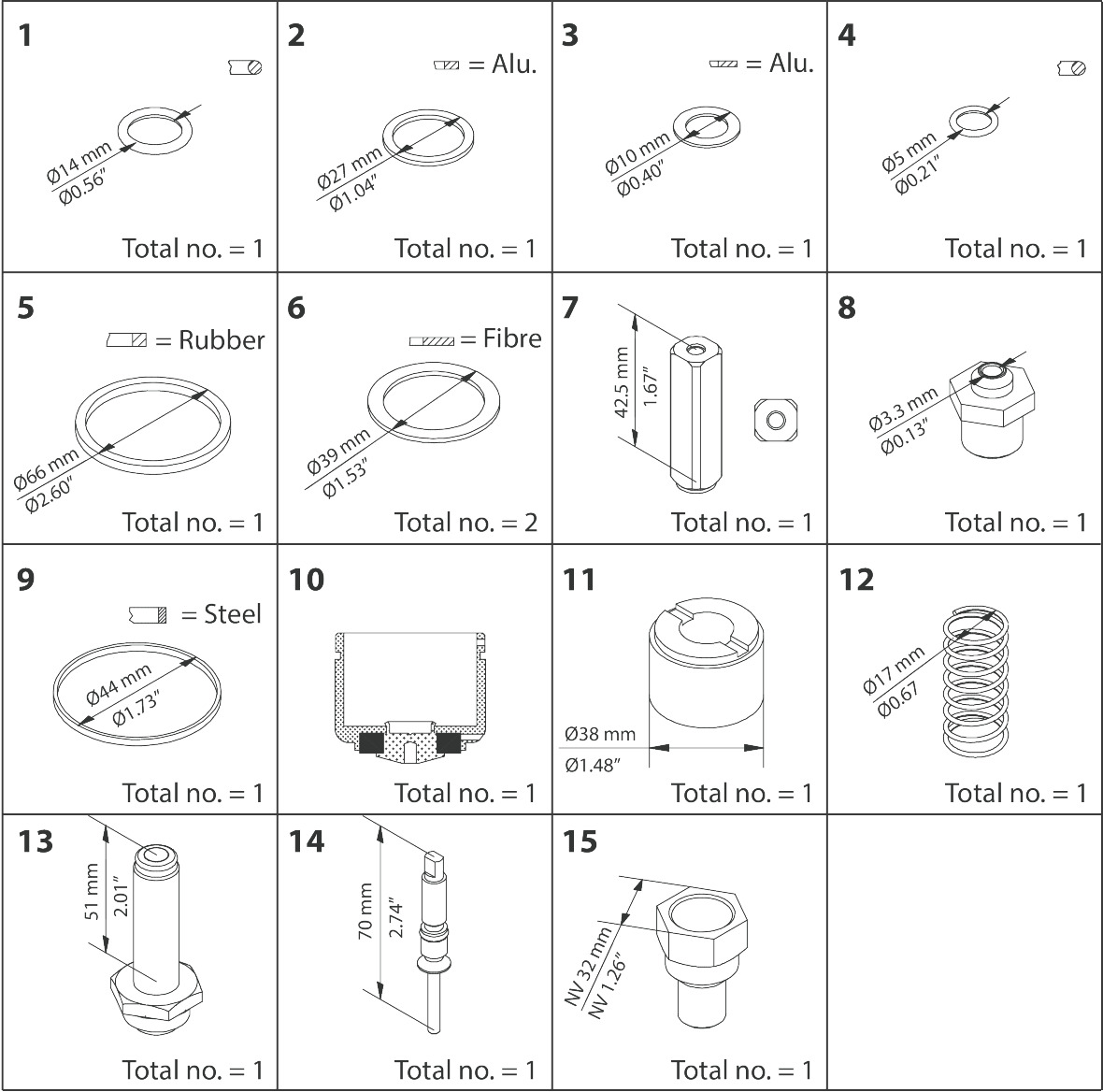

Spare Part
Product Number: 032F2340
Manufacturer Code: 032F2340
