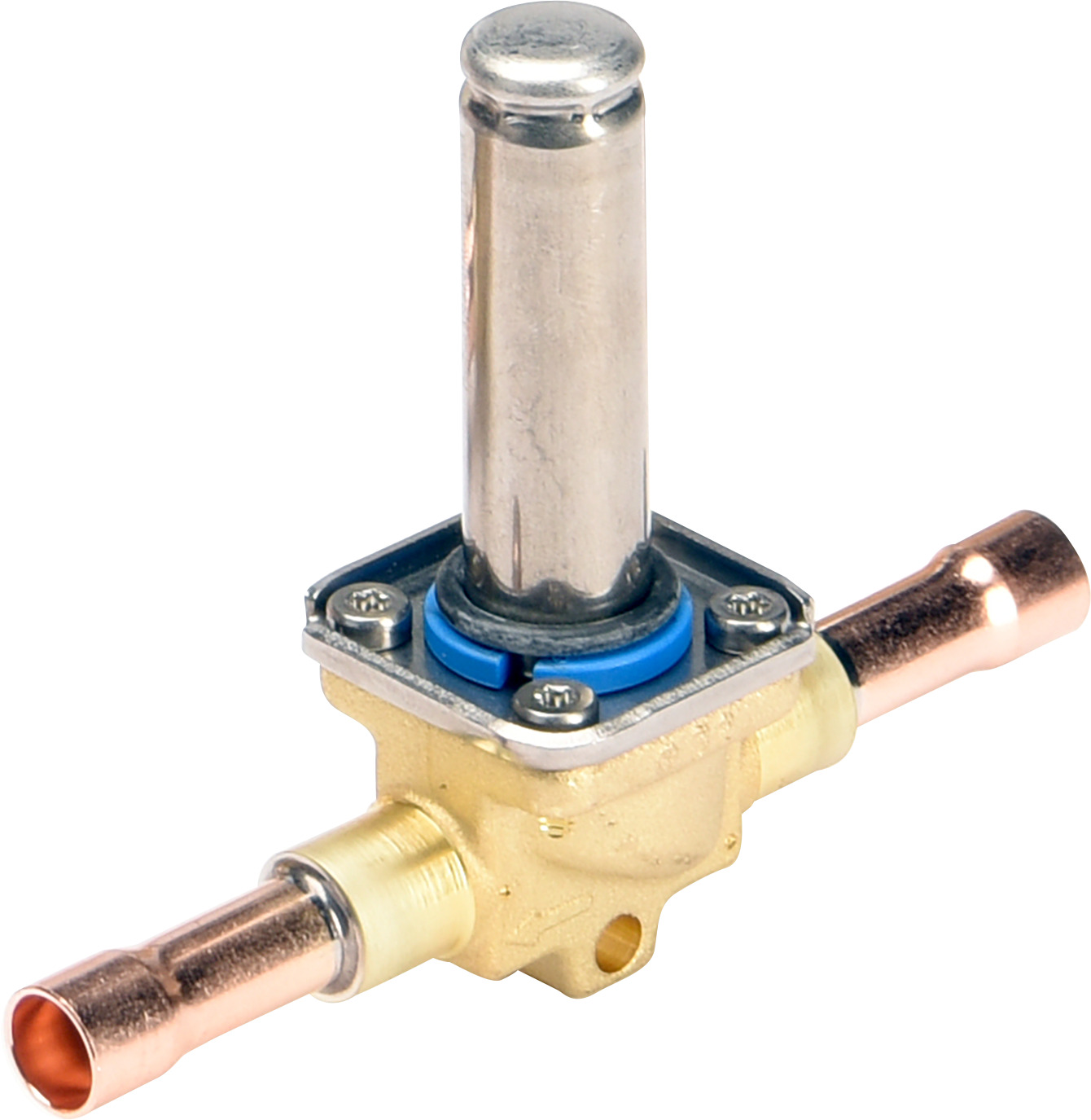

Danfoss Solenoid Valve EVR6 1/2 (Solder)

Product number: 032L1209

PLEASE LOGIN TO SEE PRICES

Further products

Product Group :	Solenoid Valves - Danfoss

Description

EVR is a direct or servo operated solenoid valve suitable for liquid, suction, and hot gas lines with most refrigerants, including flammable refrigerants. EVR valves and coils are sold separately.

Features:

Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
Supplied in versions normally closed (NC) and normally open (NO) with de-energized coil
Wide choice of coils for AC and DC
Suitable for most refrigerants, including flammable refrigerants
Designed for media temperatures up to 105 °C

General

Product Group :	Solenoid Valves - Danfoss

Additional Info

Family :	EVR v2

Coils

Coil :	No

Connections

Connection Size :	1/2 in	Inlet Connection Size :	1/2 in
Inlet Type :	Solder, ODF	Outlet Connection Size :	1/2 in
Outlet Type :	Solder, ODF

General Information

Function :	NC	Model Number :	032L1209
Type :	EVR 6

Kv Values

Kv Value :	1.000 m³/h

Logistical Information

Commodity Code :	84818059	Country Of Origin :	POL
EAN :	5702428952910	Gross Weight :	0.238 kg

Material

Connection Material :	Copper

Measurements

Net Weight :	0.19 kg	Weight :	0.19 kg

Pressure

Max OPD, 10W AC :	38 Bar	Max Operating Pressure :	45.2 Bar
Min OPD :	0.030 Bar

Refrigerant

Refrigerant :	R22, R32, R125, R134a, R152a, R290, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E)

Standards

Approval :	EAC, LLC CDC EURO-TYSK, UL

Temperature

Ambient Temperature :	-40 - 80 °C	Ambient Temperature Range :	-40-80 °C
Medium Temperature Range :	-40-105 °C	Medium Temperature Range Note :	Defrost max 130°C/265°F

Valves

Actuator Size :	13.5 mm	CV Value :	1.150 gal/min
Direction :	Straightway	Fluid Group :	1, 2
Orifice Size :	6.00 mm	Valve Operation :	SERVO-DIAPHRAGM
