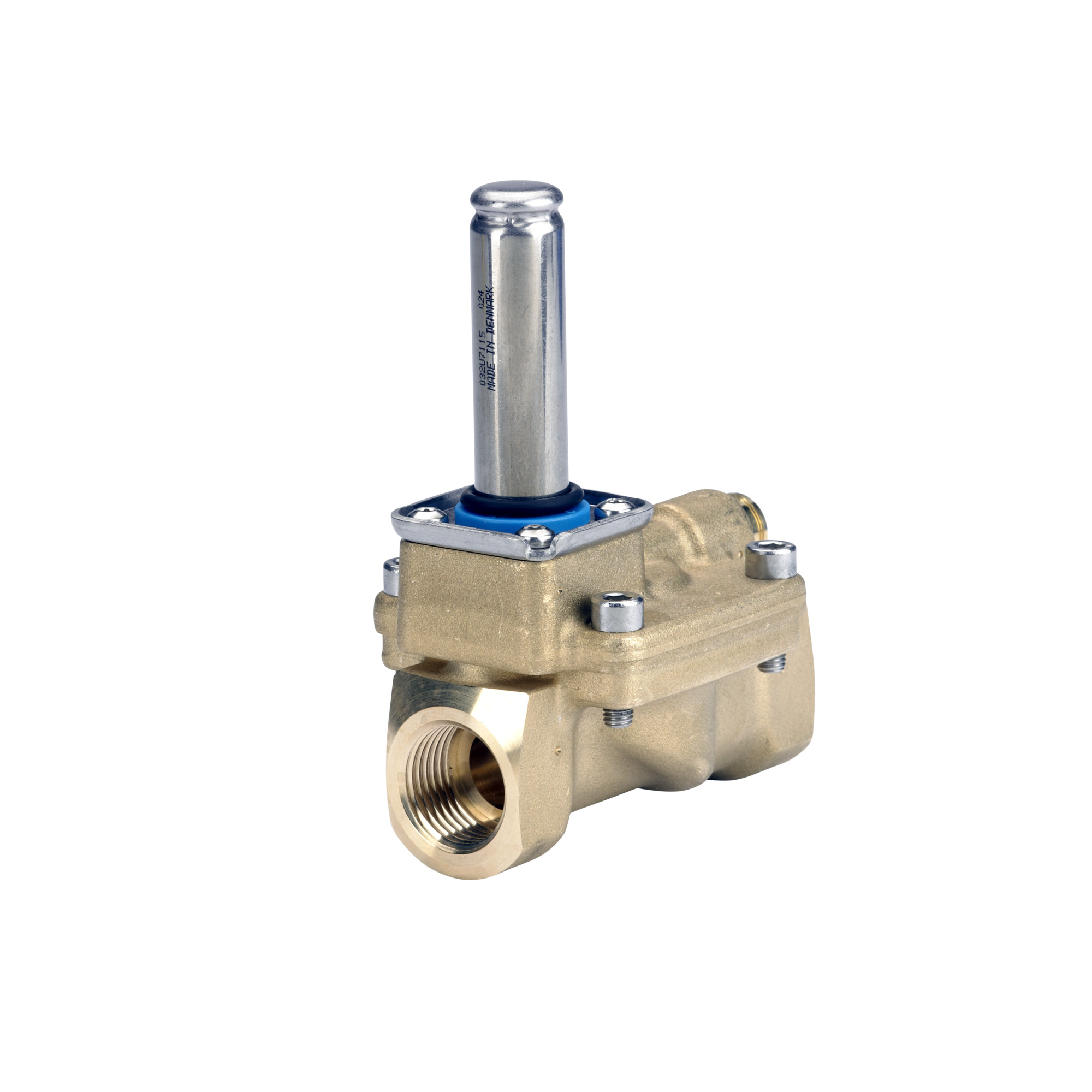

Danfoss - 1/2" Water Solenoid Valve EV220B
Item Number:
032U7115
| Application : | Open |
|---|---|
| Max Operating Pressure : | 16.0 Bar |
| Product Group : | Industrial Controls - Pressure Regulators |
General Information
| Application : | Open |
|---|---|
| Approval : | ACS, DNVGL-CG-0339, GL, PZH |
| CV Value : | 4.600 gal/min |
| Function : | NC |
| Model Number : | 032U7115 |
| Product Group : | Industrial Controls - Pressure Regulators |
| Specification Key : | EV220B 15B G 12E NC000 |
| Type : | EV220B |
Additional Info
| Family : | EV220B |
|---|
Connections
| Connection Internal/External : | Internal |
|---|---|
| Connection Size : | 1/2 in |
| Connection Type : | G |
Kv Values
| Kv Value : | 4.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702423006496 |
| Gross Weight : | 0.728 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Brass |

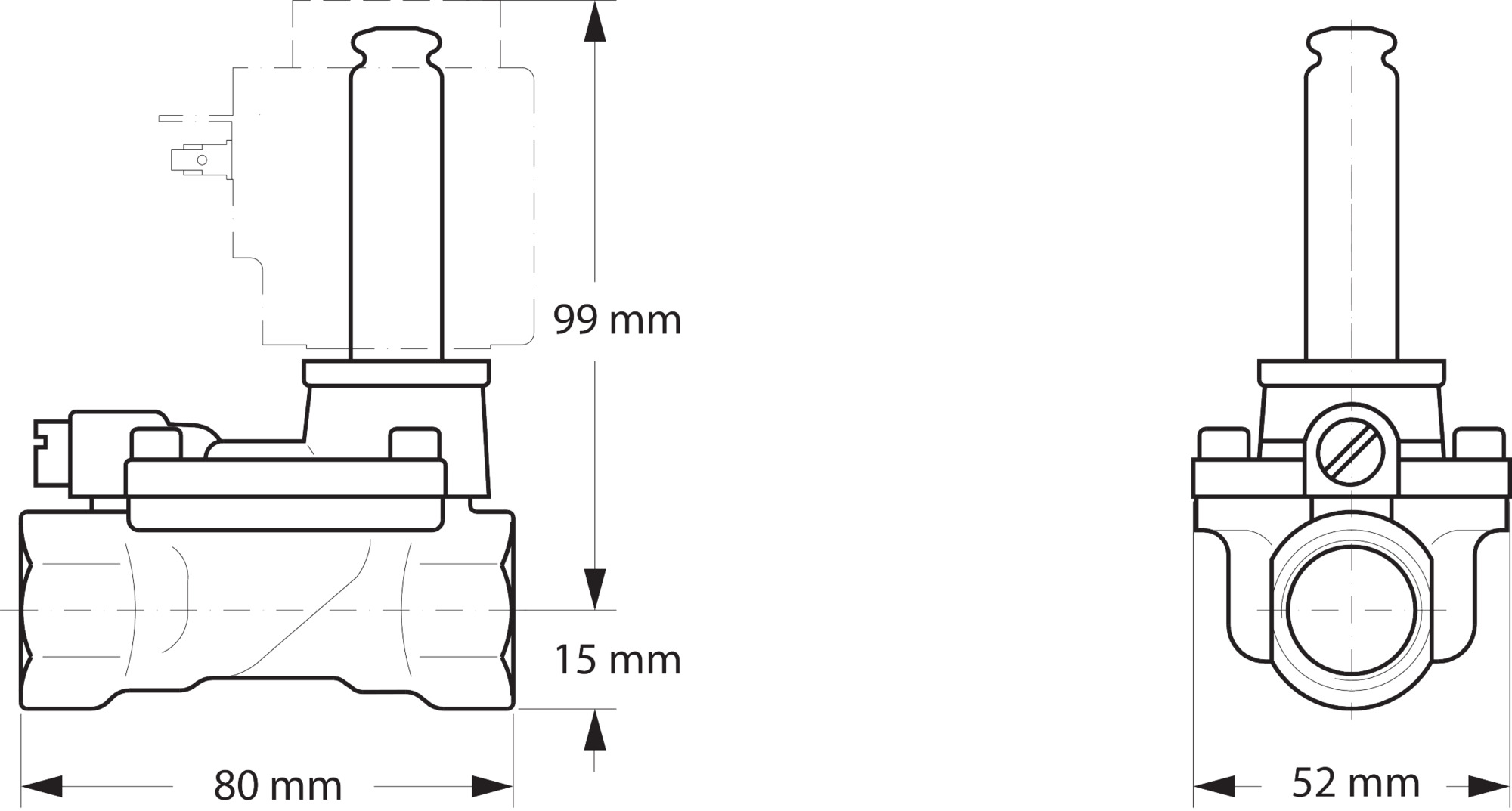

Measurements
| Net Weight : | 0.68 kg |
|---|---|
| Weight : | 0.68 kg |
Pressure
| Diff : | 0.3-16 Bar |
|---|---|
| Diff Pressure Range : | 0.3-16.0 Bar |
| Max Operating Pressure : | 16.0 Bar |
| Test Pressure : | 24 Bar |
Temperature
| Max Ambient Temperature : | 80 °C |
|---|---|
| Medium Temperature Range : | -30-120 °C |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| Flow Direction : | Single-flow |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 |
| Orifice : | 5/8 in |
| Orifice Size : | 15.00 mm;5/8 in |
| Valve Operation : | Servo-operated (diaphragm) |
Product information
Valve EV220B 15B G 12E NC000
