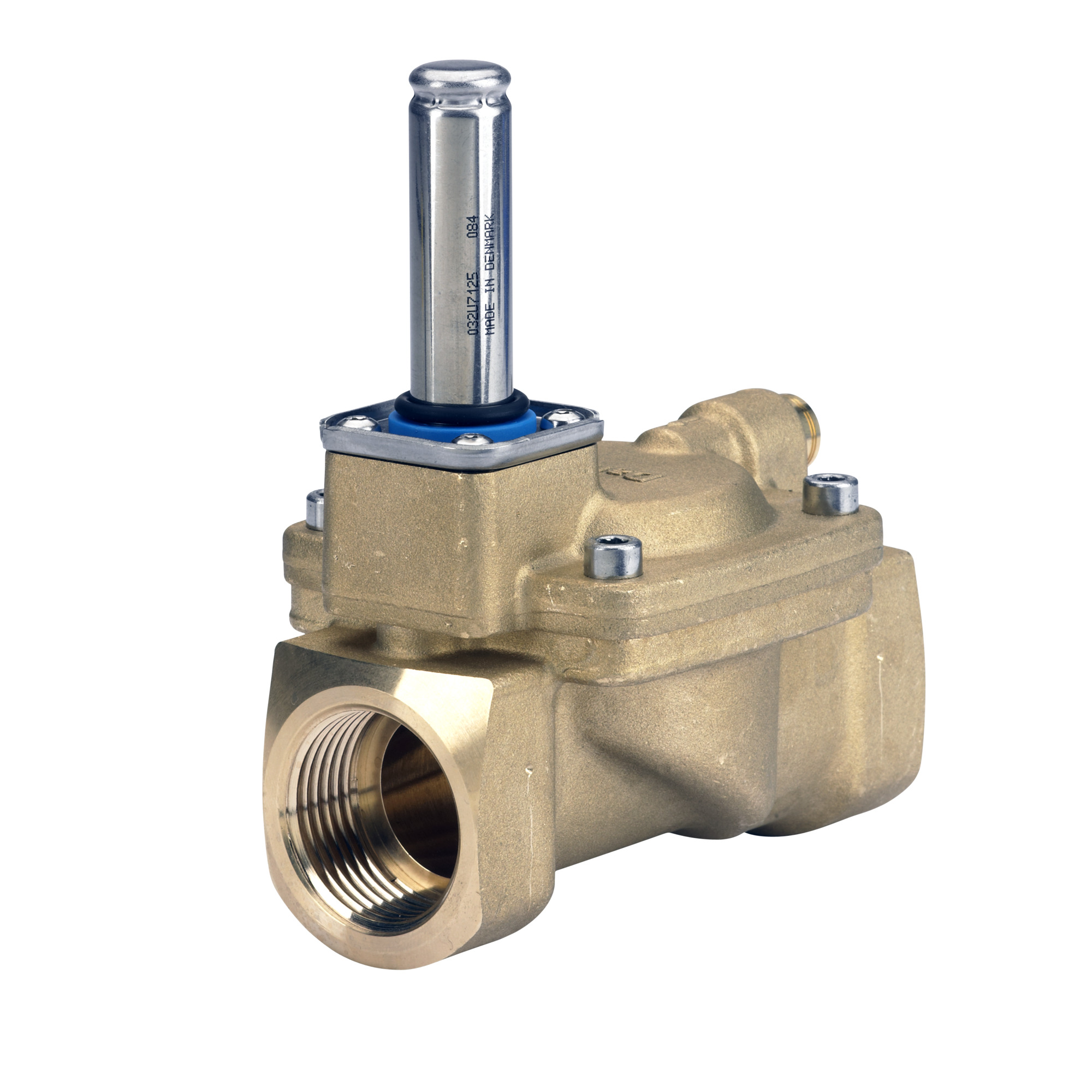

Danfoss Valve EV220B
Item Number:
032U7125
| Application : | Open |
|---|---|
| Max Operating Pressure : | 16.0 Bar |
| Product Group : | Solenoid Valves - Danfoss |
General Information
| Application : | Open |
|---|---|
| Approval : | ACS, DNVGL-CG-0339, GL, PZH |
| CV Value : | 12.700 gal/min |
| Function : | NC |
| Model Number : | 032U7125 |
| Product Group : | Solenoid Valves - Danfoss |
| Specification Key : | EV220B 25B G 1E NC000 |
| Type : | EV220B |
Additional Info
| Family : | EV220B |
|---|
Connections
| Connection Internal/External : | Internal |
|---|---|
| Connection Size : | 1 in |
| Connection Type : | G |
Kv Values
| Kv Value : | 11.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702423018543 |
| Gross Weight : | 1.382 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Brass |
Measurements
| Net Weight : | 1.29 kg |
|---|---|
| Weight : | 1.29 kg |
Pressure
| Diff Pressure Range : | 0.3-16.0 Bar |
|---|---|
| Max Operating Pressure : | 16.0 Bar |
| Max Water Pressure : | 16 Bar |
| Test Pressure : | 24 Bar |
Temperature
| Max Ambient Temperature : | 80 °C |
|---|---|
| Medium Temperature Range : | -30-120 °C |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| Flow Direction : | Single-flow |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 |
| Orifice : | 1 in |
| Orifice Size : | 25.00 mm;1 in |
Product information
Valve EV220B 25B G 1E NC000.
| File name | Extension | Size |
|---|---|---|
| Technical literature | 21.64 MB | |
| Technical literature | 5.99 MB | |
| Installation Manual | 1.46 MB | |
| Conformity Declaration | 246.44 KB | |
| Conformity Declaration | 1.54 MB | |
| Conformity Declaration | 1.97 MB | |
| Conformity Declaration | 871.36 KB | |
| Conformity Declaration | 67.9 KB | |
| Conformity Declaration | 918.86 KB | |
| Conformity Declaration | 368.16 KB |

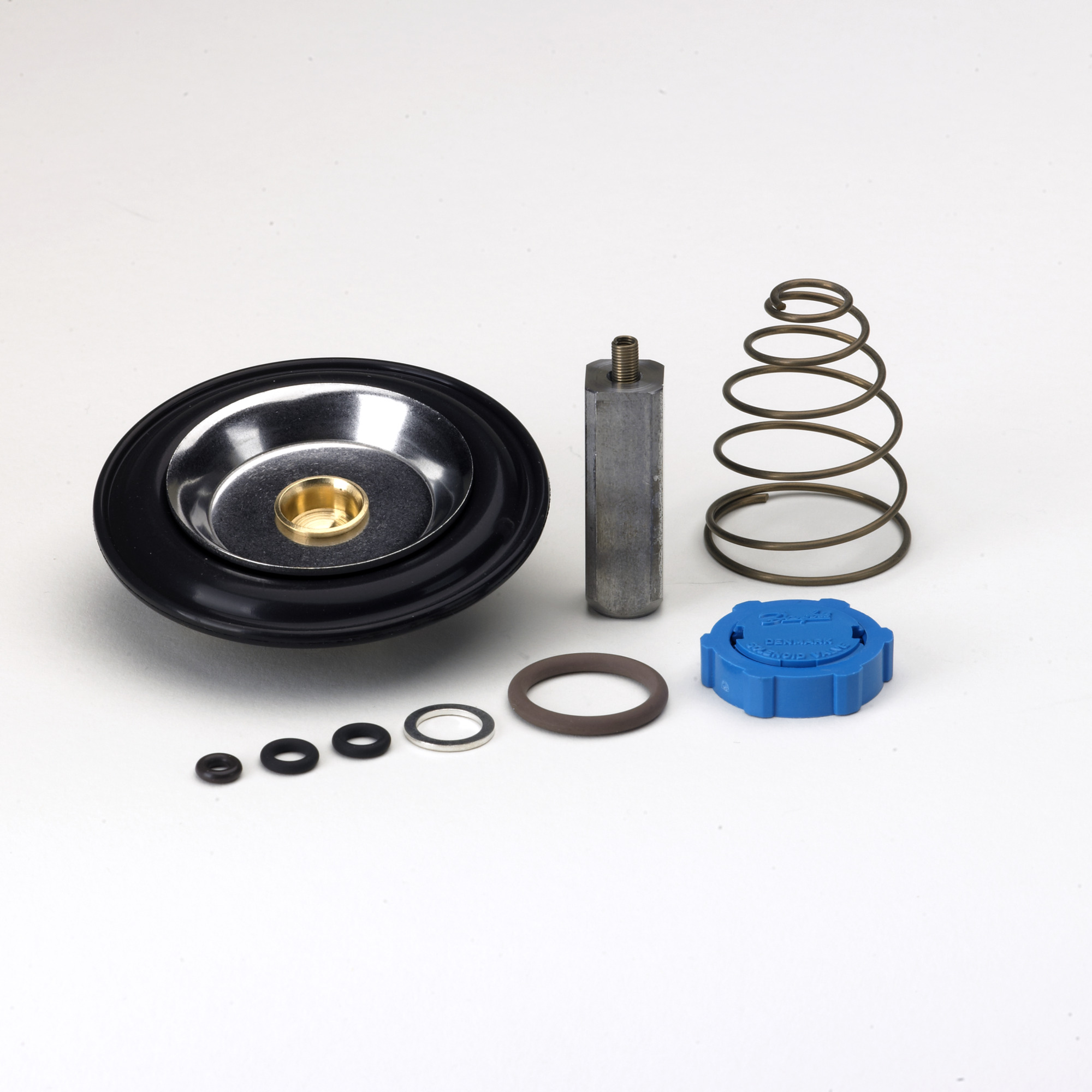

Spare Parts
