Description

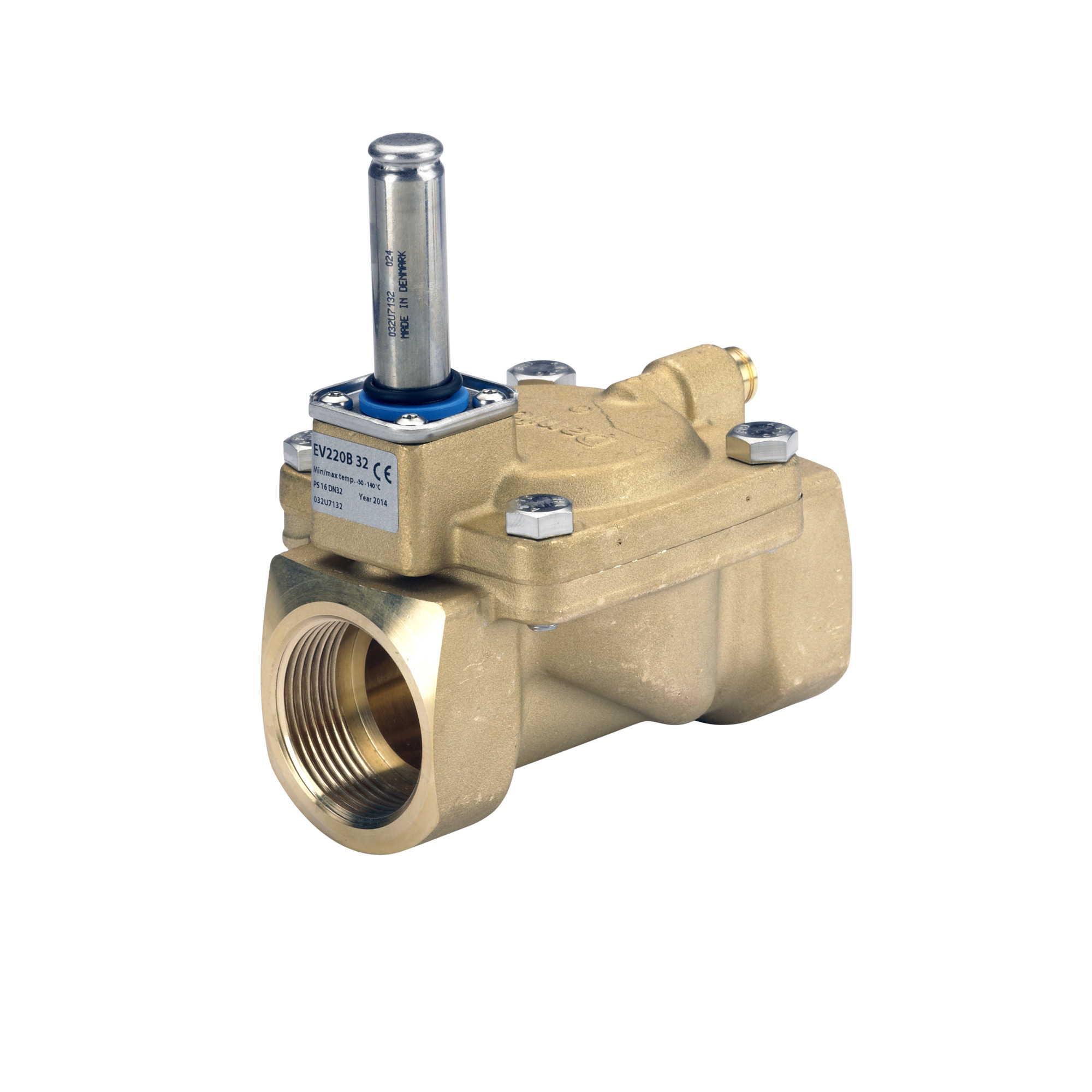

Valve EV220B 32B G 114E NC000
EV220B 32B G 114E NC000
Product number:
032U7132
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info
| Family : | EV220B |
|---|
Connections
| Connection Internal/External : | Internal | Connection Size : | 1 1/4 in |
|---|---|---|---|
| Connection Type : | G |
General Information
| Application : | Open | Function : | NC |
|---|---|---|---|
| Model Number : | 032U7132 | Specification Key : | EV220B 32B G 114E NC000 |
| Type : | EV220B |
Kv Values
| Kv Value : | 18.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702423011209 | Gross Weight : | 2.302 kg |
Material
| Body Material : | Brass | Connection Material : | Brass |
|---|
Measurements
| Net Weight : | 1.92 kg | Weight : | 1.92 kg |
|---|
Pressure
| Diff Pressure Range : | 0.3-12.0 Bar | Max Operating Pressure : | 12.0 Bar |
|---|---|---|---|
| Max Water Pressure : | 16 Bar | Test Pressure : | 18 Bar |
Standards
| Approval : | ACS, CE, DNVGL-CG-0339, GL, PZH, UKCA |
|---|
Temperature
| Max Ambient Temperature : | 80 °C | Medium Temperature Range : | -30-120 °C |
|---|
Valves
| Actuator Size : | 13.5 mm | CV Value : | 20.800 gal/min |
|---|---|---|---|
| Flow Direction : | Single-flow | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 | Orifice : | 1 1/4 in |
| Orifice Size : | 32.00 mm;1 1/4 in |

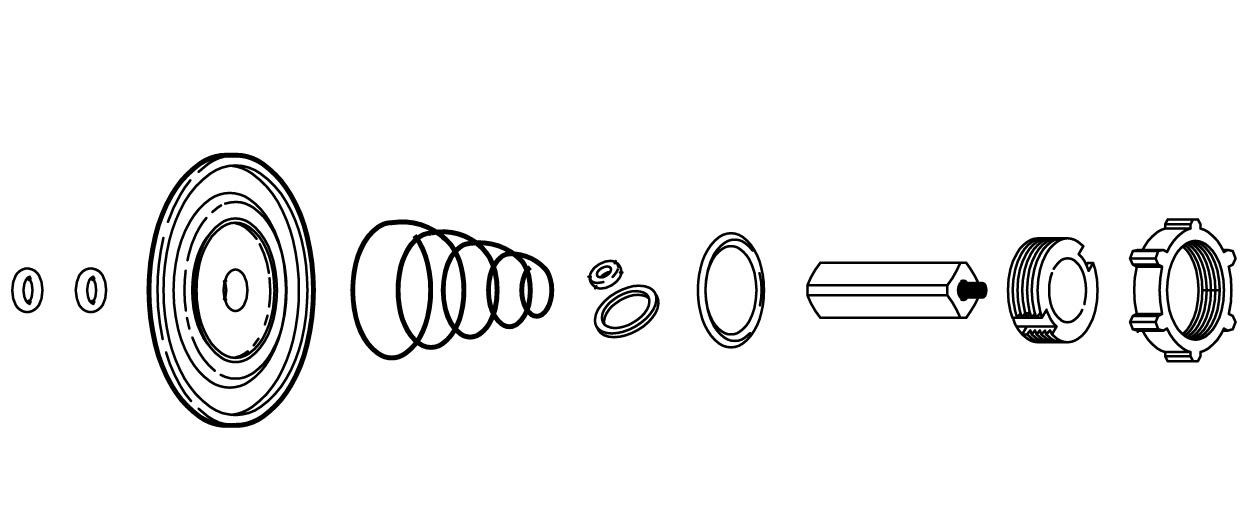

Spare Part
