Description

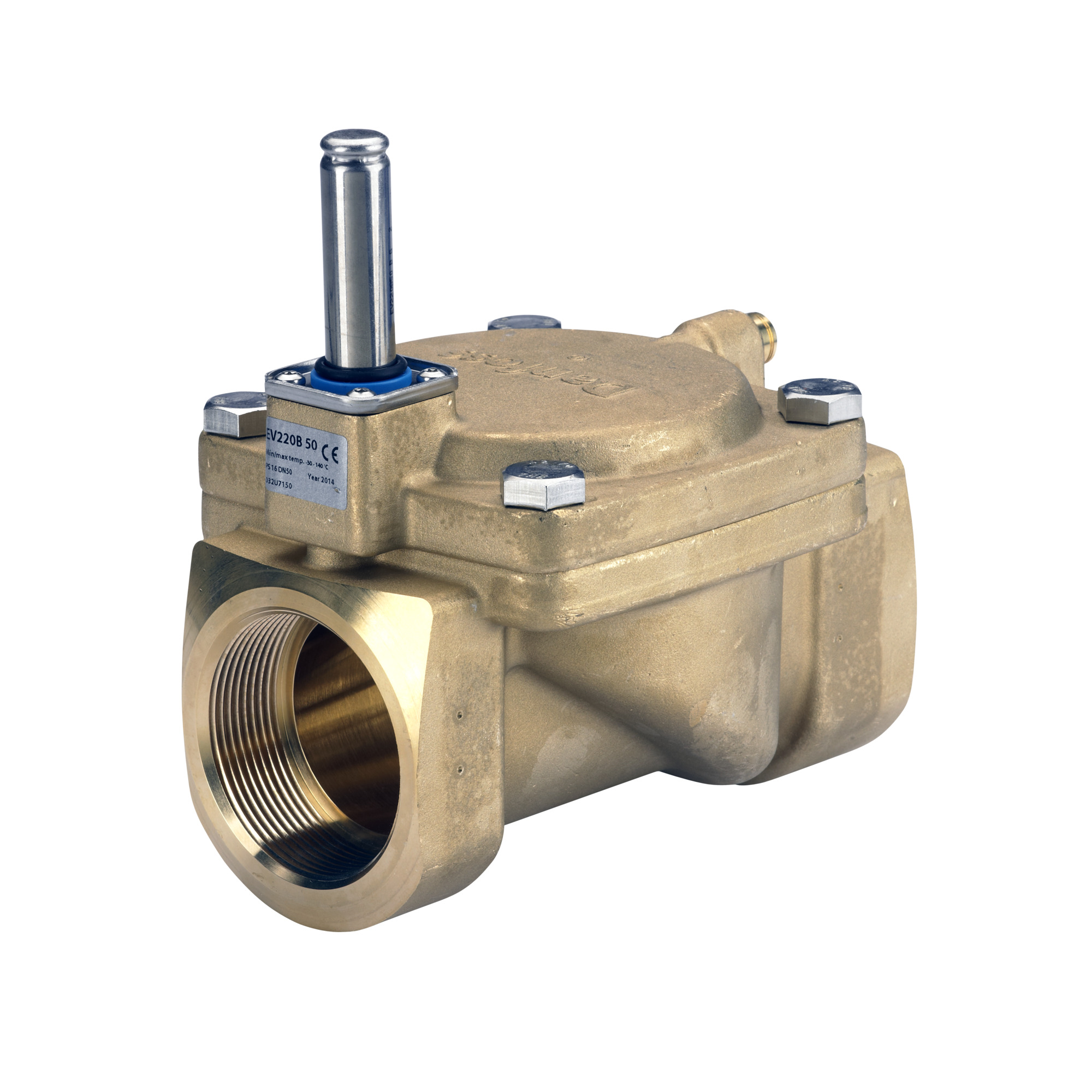

Valve EV220B 50B G 2E NC000
Danfoss EV220B WaterSolenoid 50mm
Product number:
032U7150
| Product Group : | Industrial Controls - Solenoid Valves |
|---|
General
| Product Group : | Industrial Controls - Solenoid Valves |
|---|
Additional Info
| Family : | EV220B |
|---|
Connections
| Connection Internal/External : | Internal | Connection Size : | 2 in |
|---|---|---|---|
| Connection Type : | G |
General Information
| Application : | Open | Function : | NC |
|---|---|---|---|
| Model Number : | 032U7150 | Specification Key : | EV220B 50B G 2E NC000 |
| Type : | EV220B |
Kv Values
| Kv Value : | 40.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702423012978 | Gross Weight : | 5.156 kg |
Material
| Body Material : | Brass | Connection Material : | Brass |
|---|
Measurements
| Net Weight : | 4.68 kg | Weight : | 4.68 kg |
|---|
Pressure
| Diff Pressure Range : | 0.3-12.0 Bar | Max Operating Pressure : | 12.0 Bar |
|---|---|---|---|
| Test Pressure : | 18 Bar |
Standards
| Approval : | ACS, CE, DNVGL-CG-0339, GL, PZH, UKCA |
|---|
Temperature
| Max Ambient Temperature : | 80 °C | Medium Temperature Range : | -30-120 °C |
|---|
Valves
| Actuator Size : | 13.5 mm | CV Value : | 46.200 gal/min |
|---|---|---|---|
| Flow Direction : | Single-flow | Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1 | Orifice : | 2 in |
| Orifice Size : | 50.00 mm;2 in |
