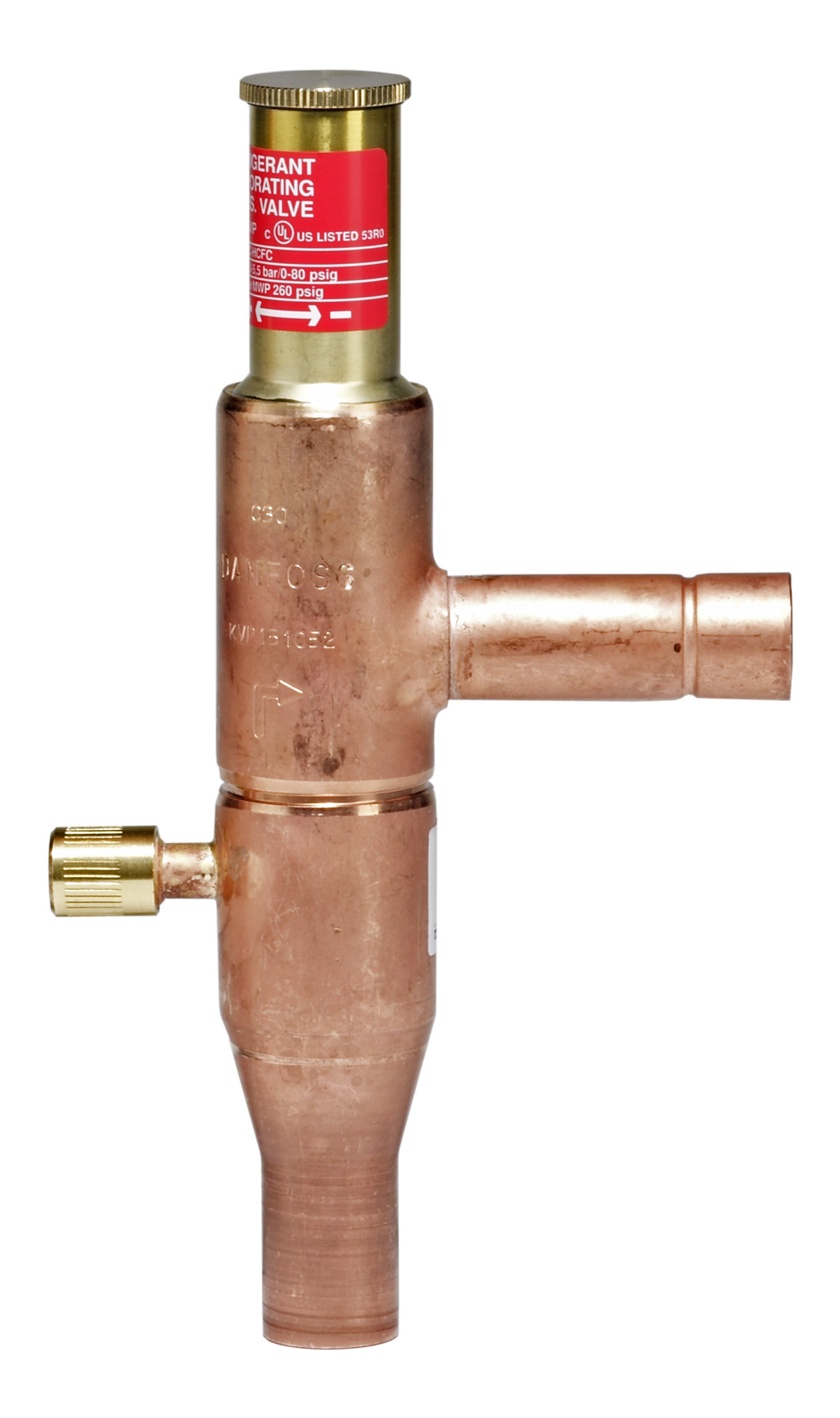

Danfoss EPR Valve KVP15 5/8" Solder (0-80psi)
Item Number:
034L0029
Max Operating Pressure : | 18.0 Bar |
---|---|
Product Group : | Pressure Reg - Danfoss |
Refrigerant : | R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E), R1270 |
General Information
Approval : | C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China |
---|---|
CV Value : | 2.900 gal/min |
Equipment : | Schrader valve access port |
Product Group : | Pressure Reg - Danfoss |
Type : | KVP 15 |
Additional Info
Additional Info : | Max. extern.bellow press.26bar |
---|---|
Family : | KVP |
Capacity R134a
R134a Capacity : | 2.80 kW |
---|
Capacity R22
R22 Capacity : | 4.00 kW |
---|
Capacity R407C
R407C Capacity : | 3.70 kW |
---|
Connections
Connection Size : | 5/8" |
---|---|
Connection Type : | Solder, ODF |
Inlet Connection Size : | 5/8 in, 16.00 mm |
Inlet Type : | Solder, ODF |
Outlet Connection Size : | 5/8 in, 16.00 mm |
Outlet Type : | Solder, ODF |
Kv Values
Kv Value : | 2.500 m³/h |
---|
Logistical Information
Commodity Code : | 84818059 |
---|---|
Country Of Origin : | POL |
EAN : | 5702428411813 |
Gross Weight : | 0.384 kg |
Measurements
Net Weight : | 0.33 kg |
---|---|
Weight : | 0.33 kg |
Pressure
Max Operating Pressure : | 18.0 Bar |
---|---|
Regulating Range : | 0.0-5.5 Bar |
Test Pressure : | 19.8 Bar |
Refrigerant
Refrigerant : | R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E), R1270 |
---|
Temperature
Factory Setting : | 2.00 Bar |
---|---|
Max Temperature : | 130 °C |
Medium Temperature Range : | -45-130 °C |
Min Temperature : | -45 °C |
Valves
Flow Direction Indicator : | Engraved 1-way arrow |
---|
Product information
The KVP is mounted in the suction line after the evaporator and is used to:
- Maintain a constant evaporating pressure and thereby a constant surface temperature on the evaporator. The regulation is modulating. By throttling in the suction line, the amount of refrigerant gas is matched to the evaporator load.
- Protect against an evaporating pressure that is too low (e.g. as protection against freezing in a water chiller). The regulator closes when the pressure in the evaporator falls below the set value.
- Differentiate between the evaporating pressures in two or more evaporators in systems with one compressor
