| Product Group : | Pressure Reg - Danfoss |
|---|

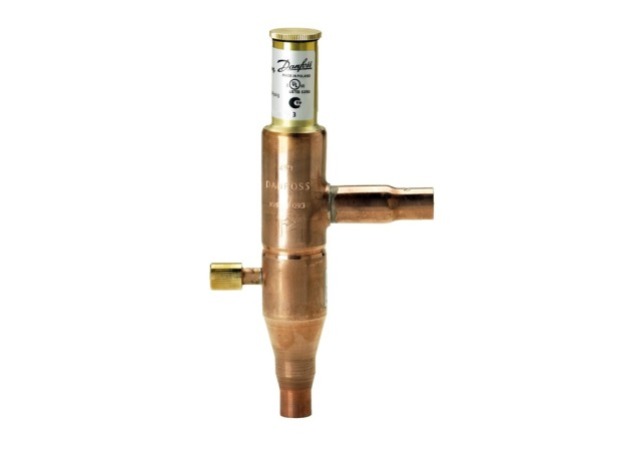

Regulating system KVR and NRD is used to maintain a constant and suciently high condenser and receiver pressure in refrigeration and air conditioning plant with air-cooled condensers. KVR can also be used together with receiver pressure regulator, type KVD.
| Product Group : | Pressure Reg - Danfoss |
|---|
| Family : | KVR |
|---|
| Connection Size : | 7/8" (22 mm) | Connection Type : | Solder, ODF |
|---|---|---|---|
| Inlet Connection Size : | 7/8 in, 22.00 mm | Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 7/8 in, 22.00 mm | Outlet Type : | Solder, ODF |
| Equipment : | Schrader valve access port | Type : | KVR 22 |
|---|
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428411615 | Gross Weight : | 0.414 kg |
| Net Weight : | 0.37 kg | Weight : | 0.37 kg |
|---|
| Max Operating Pressure : | 28.0 Bar | Regulating Range : | 5.0-17.5 Bar |
|---|---|---|---|
| Test Pressure : | 31 Bar |
| R134a Capacity : | 47.30 kW |
|---|
| R22 Capacity : | 50.40 kW |
|---|
| R407C Capacity : | 54.40 kW |
|---|
| Refrigerant : | R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234yf, R1234ze(E), R1270 |
|---|
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK, RoHS, RoHS China |
|---|
| Factory Setting : | 10.00 Bar | Medium Temperature Range : | -45-130 °C |
|---|
| Flow Direction Indicator : | Engraved 1-way arrow |
|---|
