Description

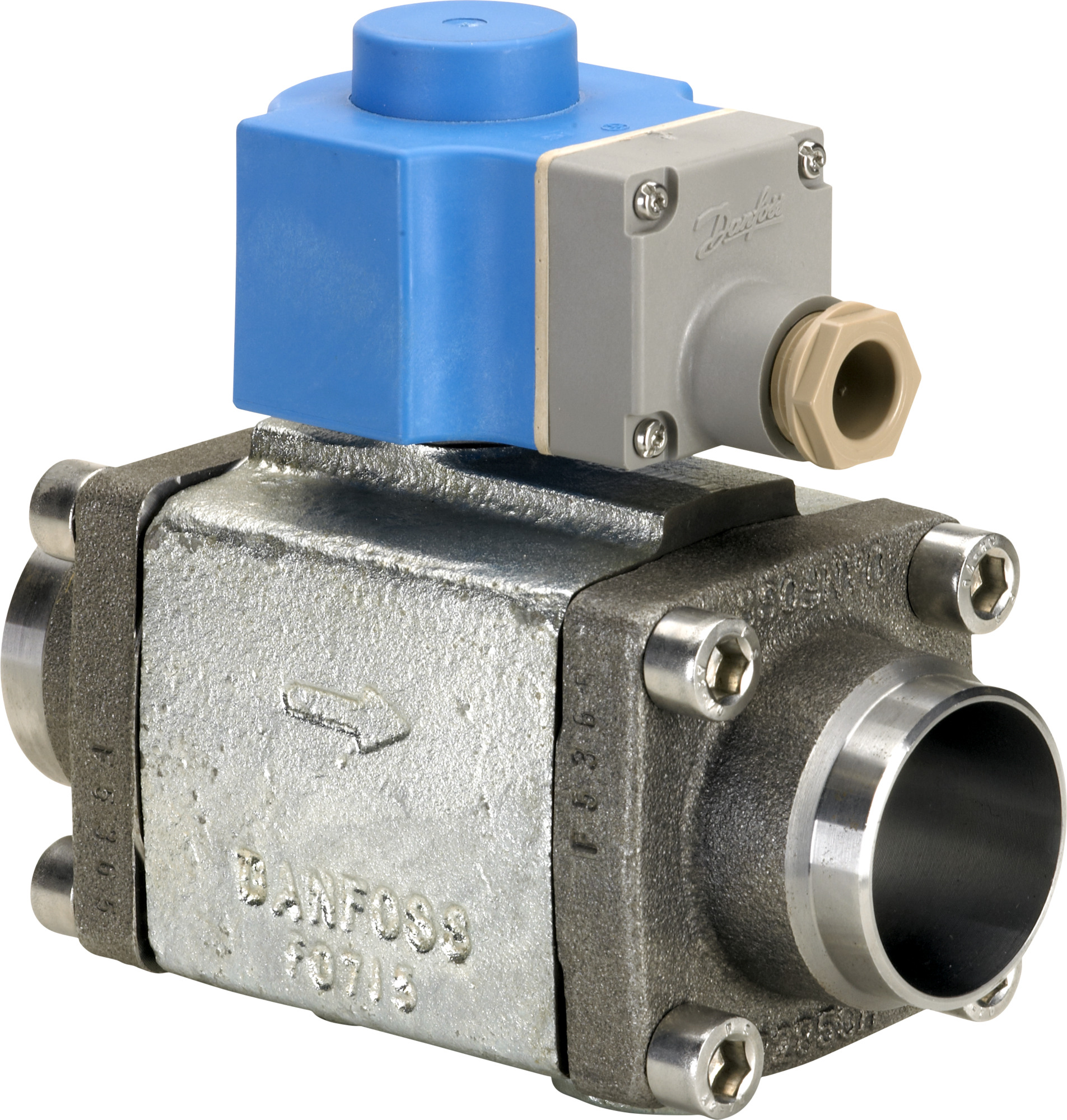

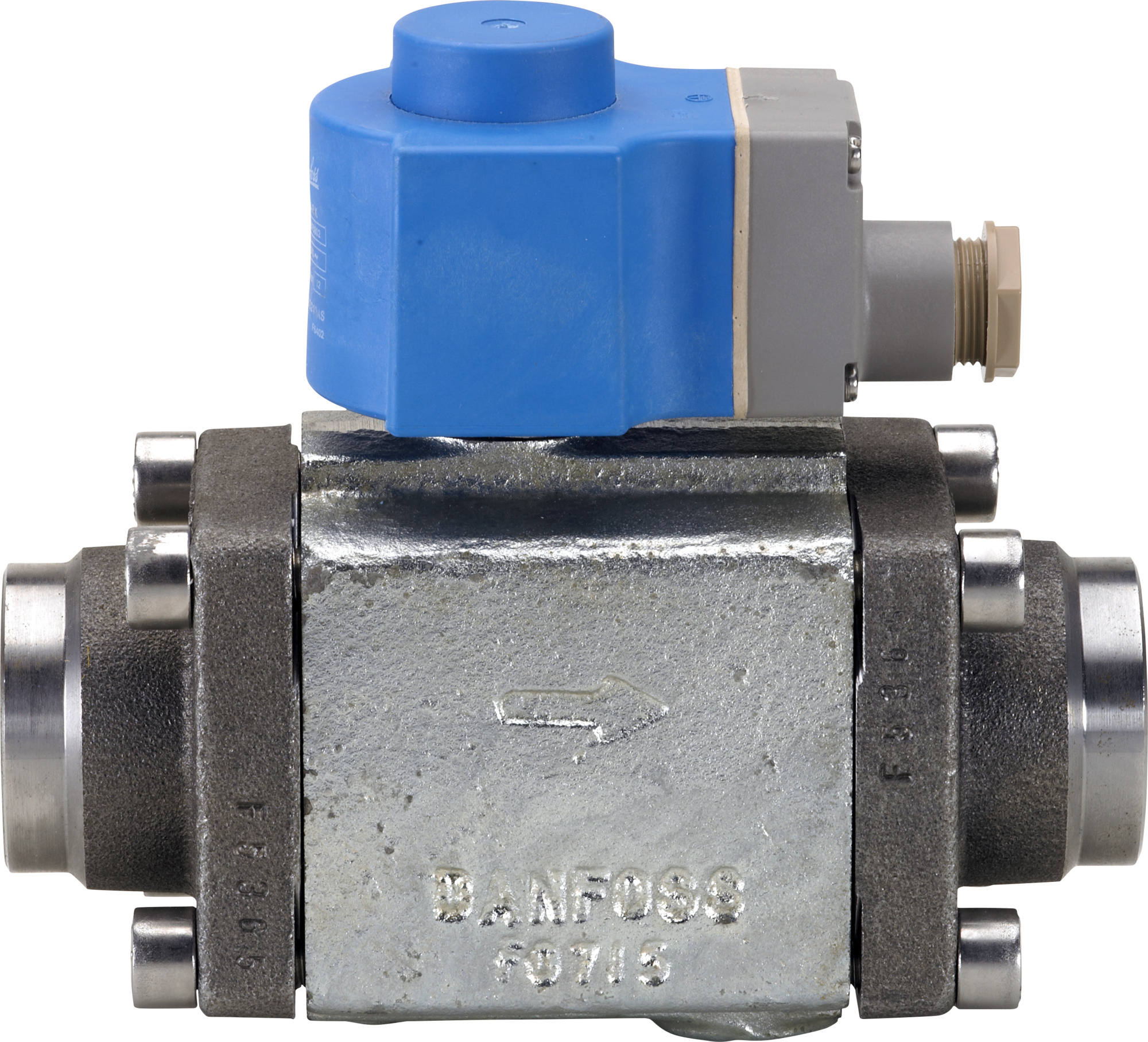

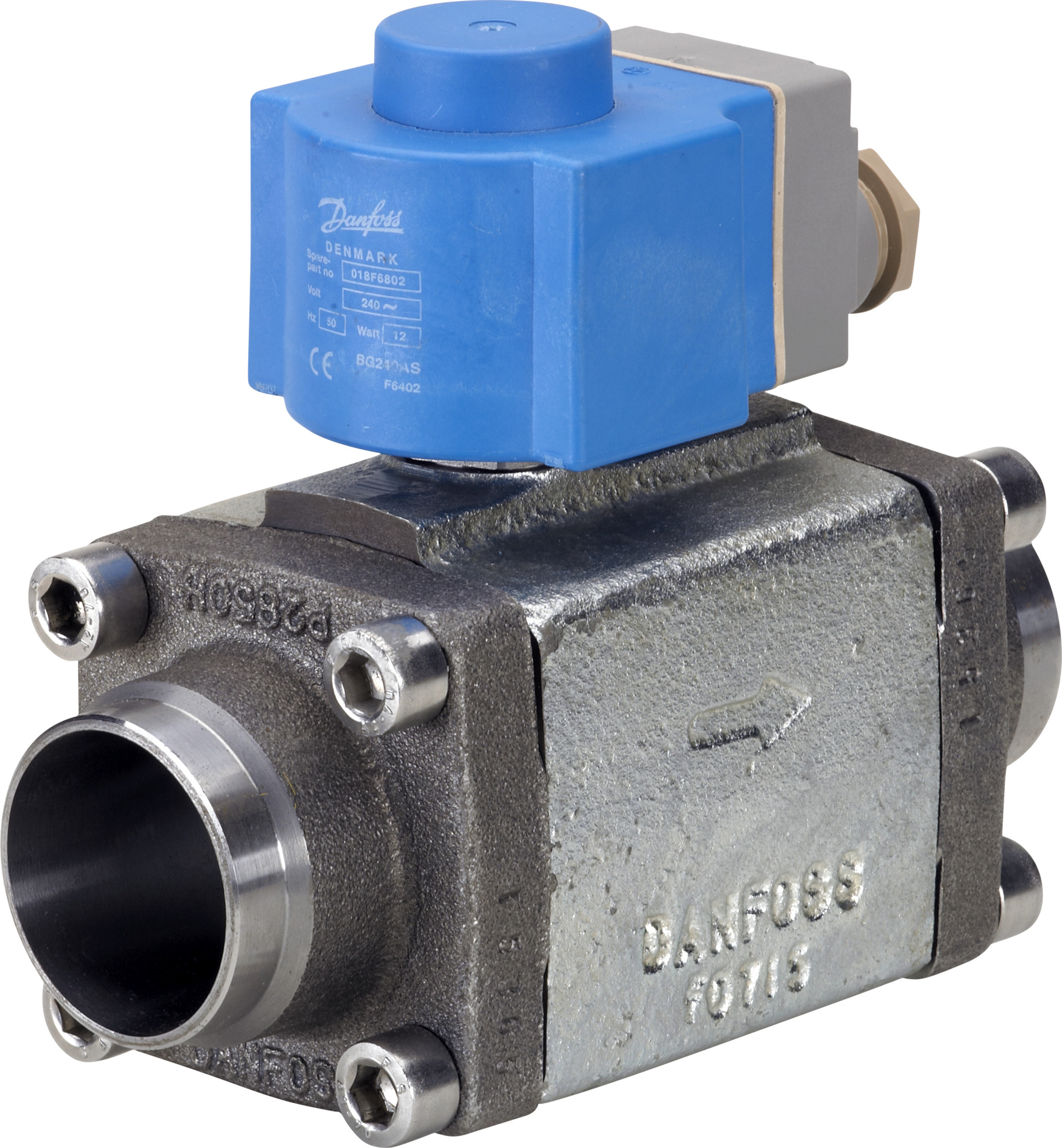

AKVA20-2 Valve Weld con. 1 1/4in Singlep
Dan. AKVA20-2 Elec.Exp.Valve
Product number:
042H2102
| Product Group : | Industrial Controls - Expansion Valves |
|---|
General
| Product Group : | Industrial Controls - Expansion Valves |
|---|
Additional Info
| Family : | AKVA |
|---|
Compatibility
| Compatible Controllers : | EKC 315A, EKE 347 |
|---|
Connections
| Inlet Connection Size : | 1 1/4 in | Inlet Type : | Weld connection |
|---|---|---|---|
| Outlet Connection Size : | 1 1/4 in | Outlet Type : | Weld connection |
General Information
| Function : | NC | Type : | Electric expansion valve |
|---|
Kv Values
| Kv Value : | 1.600 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818071 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702422120681 | Gross Weight : | 4.902 kg |
Material
| Body Material : | Steel | Connection Material : | Steel |
|---|
Measurements
| Weight : | 4.71 kg |
|---|
Pressure
| Max OPD, 10W AC : | 18 Bar | Max Operating Pressure : | 42.0 Bar |
|---|---|---|---|
| Min OPD : | 0.000 Bar |
Refrigerant
| Refrigerant : | R717, R744 |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature Range : | -40-50 °C | Medium Temperature Range : | -40-60 °C |
|---|
Valves
| Actuator Size : | 13.5 mm | CV Value : | 1.850 gal/min |
|---|---|---|---|
| Direction : | Straightway | Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 8.00 mm |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| manufacturer-s-declaration-danfoss-md-033f0686-ao-ast-id365946903774-0801.pdf | Conformity Declaration | 488.98 KB | |
| data-sheet-electric-expansion-valves-type-akva-10-akva-15-akva-20-ast-ai183786440857en-000901.pdf | Technical Literature | 4.29 MB | |
| manufacturer-s-declaration-danfoss-md-033f0687-ah-ast-id365946847730-0201.pdf | Conformity Declaration | 1.12 MB | |
| electric-expansion-valve-akva-20-ast-an11948641590401-000201.pdf | Installation Manual | 896.52 KB | |
| mechanical-safety-certificate-ul-mh7648-ast-id366040919099-0201.pdf | Conformity Declaration | 368.16 KB |

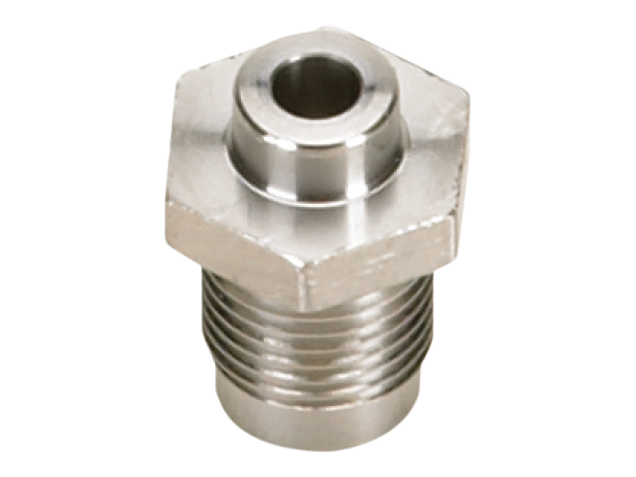

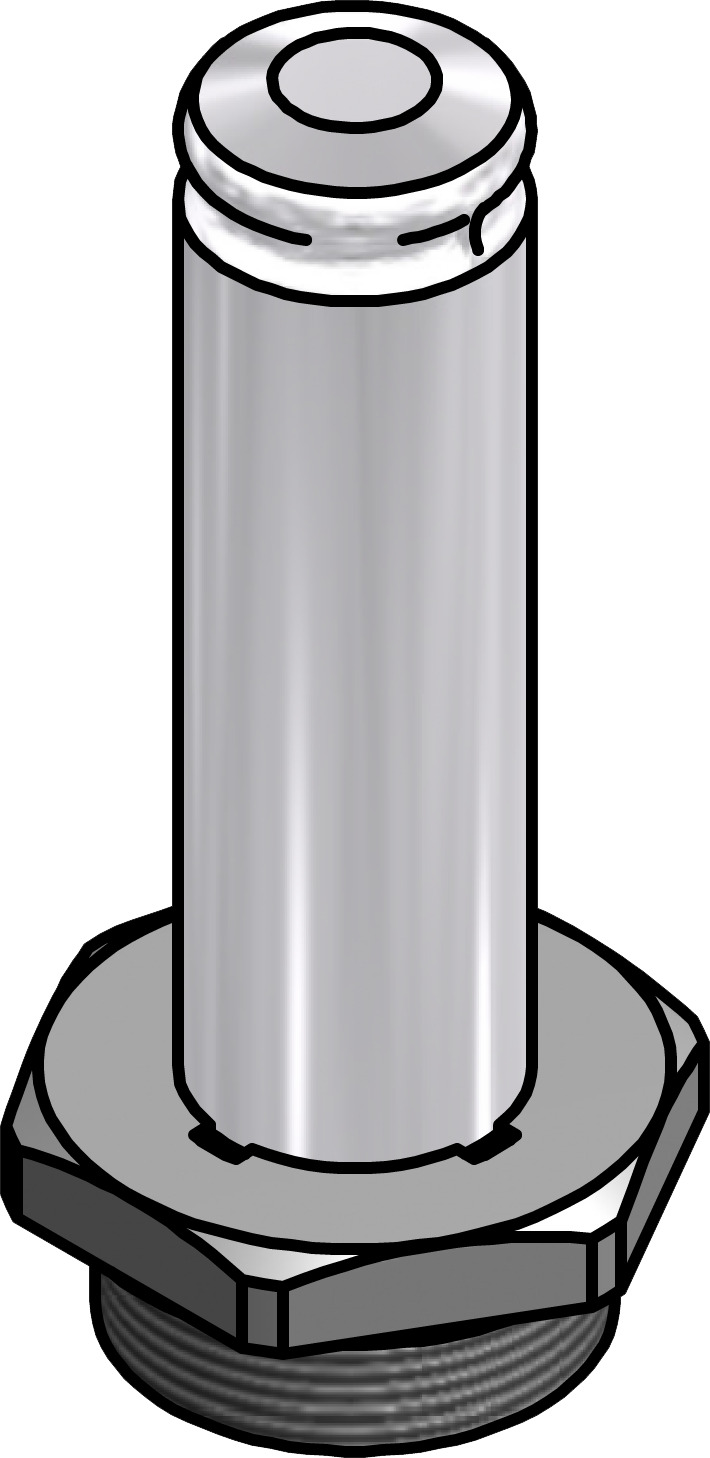

Spare Part
Product Number: 068F5270
Manufacturer Code: 068F5270
Product Number: 068F5045
Manufacturer Code: 068F5045
