Description

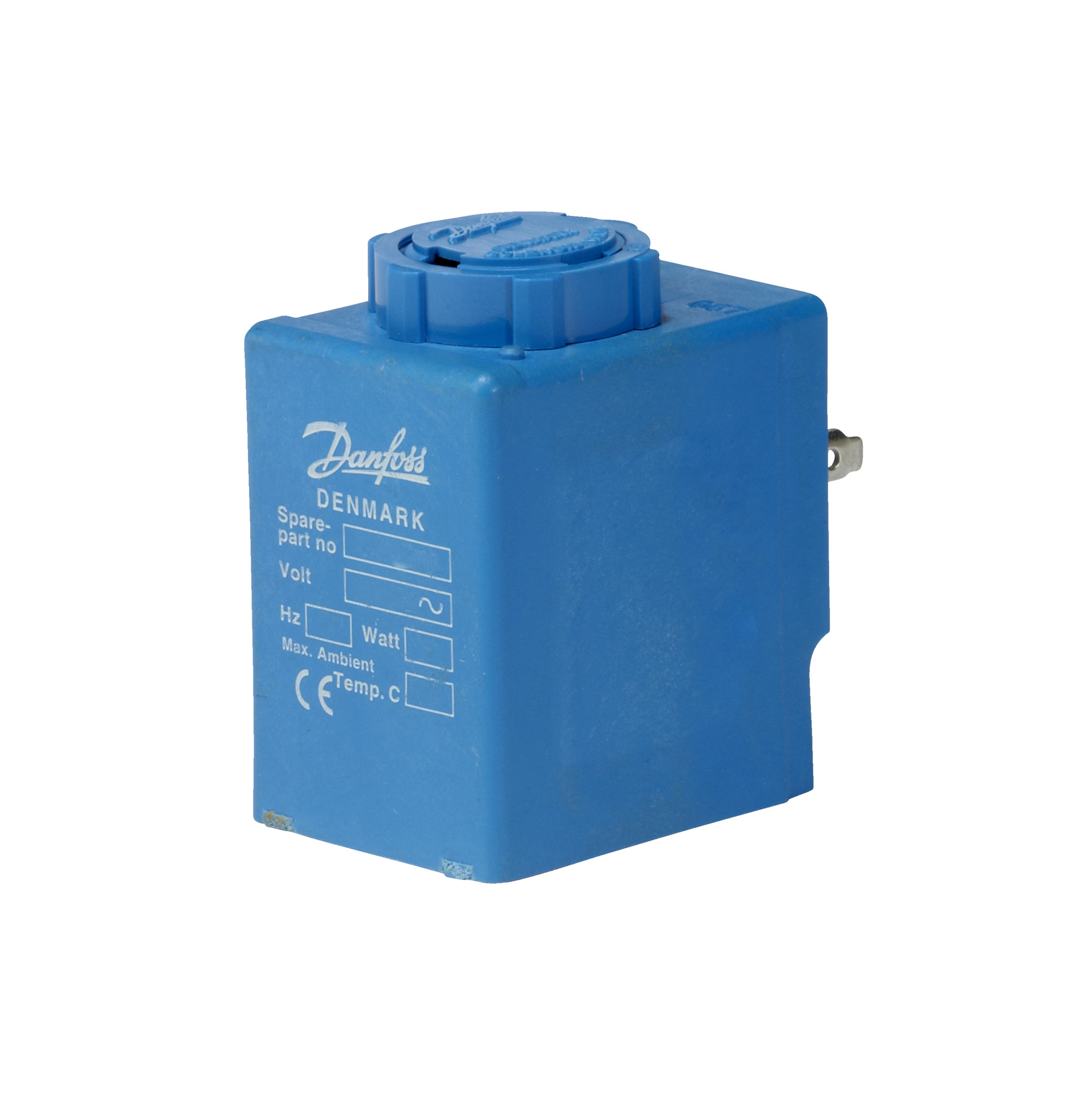

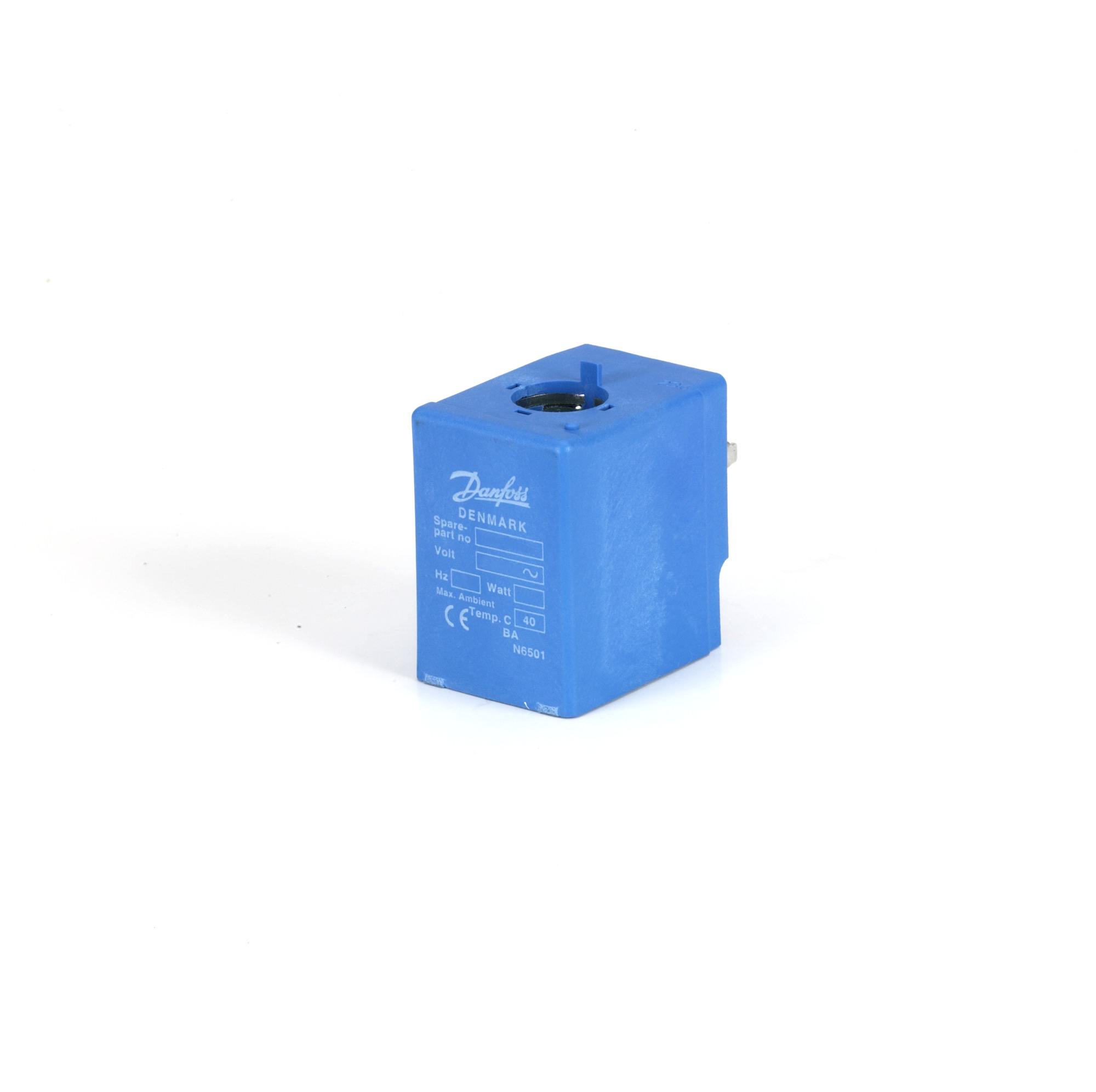

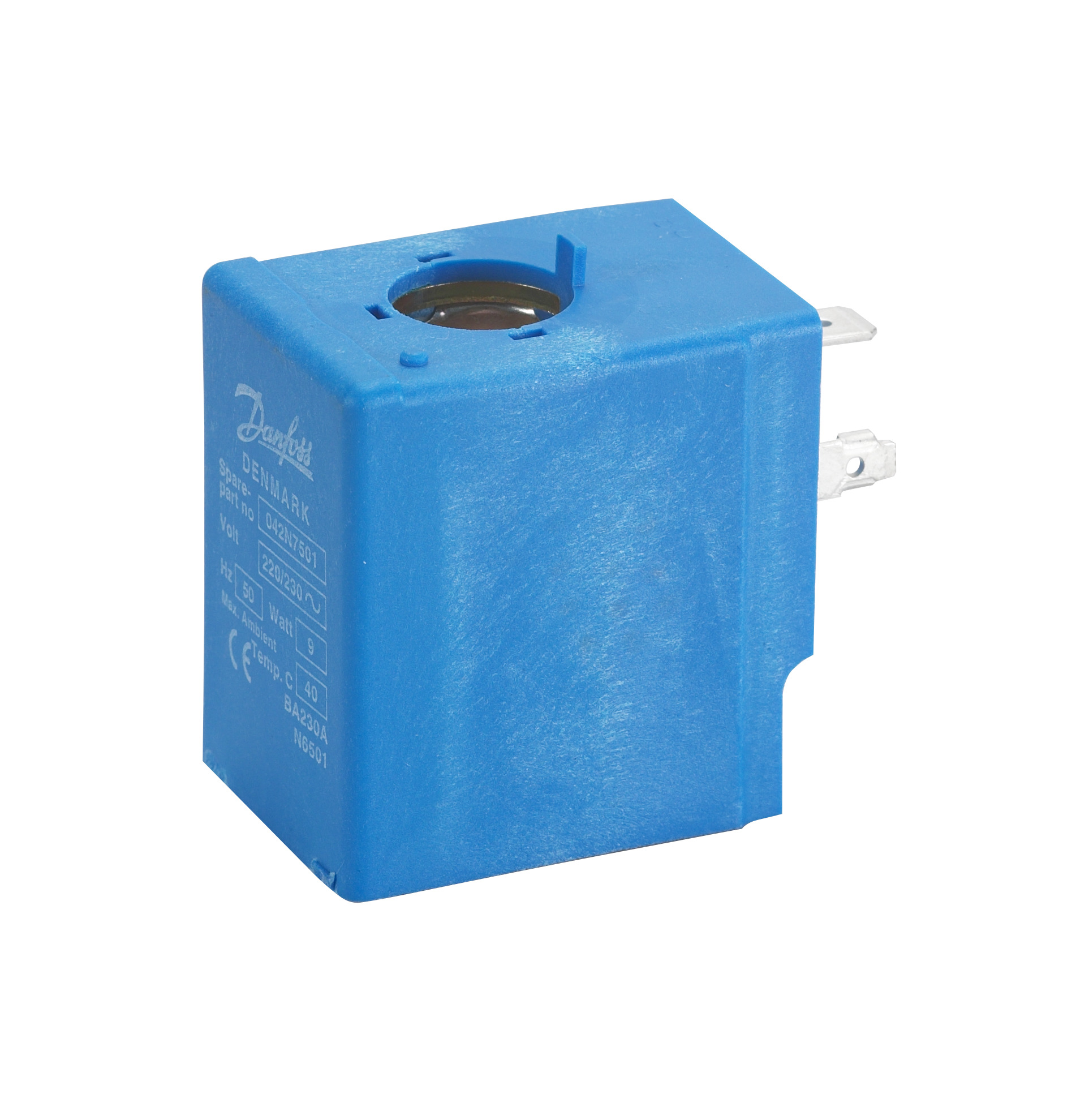

Coil BA024A 24V 50Hz
Danfoss 24VAC 9W Solenoid Coil
Product number:
042N7508
| Product Group : | Industrial Controls - Other |
|---|
General
| Product Group : | Industrial Controls - Other |
|---|
Connections
| Coil Connection Type : | DIN Spade |
|---|
Electrical
| Electric Connection : | DIN Spade | Electric Connection Size : | 6.3x0.8 mm |
|---|---|---|---|
| IP Class : | IP00 |
General Information
| Colour : | Blue | Parts Included : | Nut, Snap fastener |
|---|---|---|---|
| Type : | BA024A |
Humidity
| Relative Humidity Max : | 97 %RH | Relative Humidity Min : | 0 %RH |
|---|
Logistical Information
| Commodity Code : | 85059029 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702423021758 | Gross Weight : | 0.178 kg |
Measurements
| Weight : | 0.16 kg |
|---|
Temperature
| Ambient Temperature Range : | -40-40 °C |
|---|
Valves
| Actuator Size : | 13.5 mm |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| solenoid-coil-screw-on-coil-type-ab-am-ac-ak-al-ap-bb-ba-bc-and-bd-ast-an353730866505en-000301.pdf | Installation Manual | 3.28 MB | |
| data-sheet-solenoid-coils-type-ba-bd-bb-be-bf-bg-bn-bo-bj-bx-by-bq-am-as-az-and-ap-ast-ai247086497610en-001001.pdf | Technical Literature | 15.53 MB |
