Description

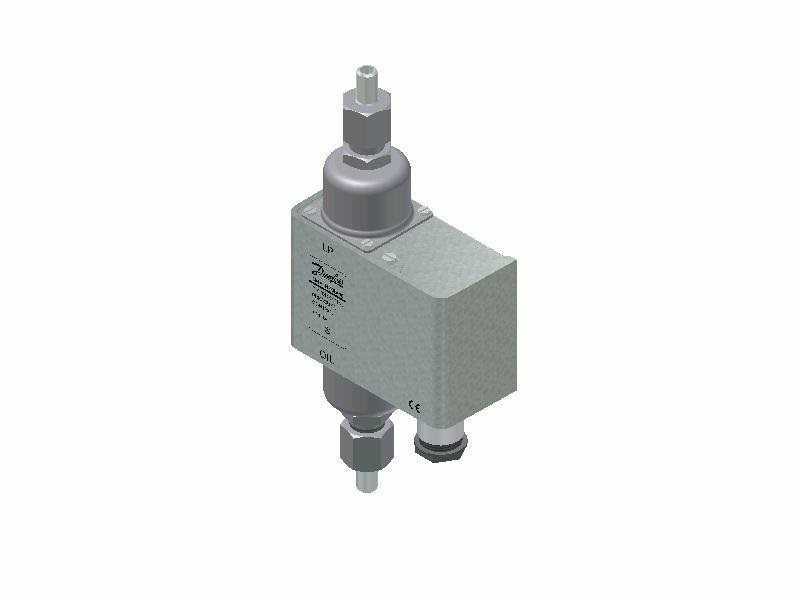

MP55A Diff. Pressure Switch M/21
MP55A Diff. Pressure Switch M/21
Product number:
060B029891
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info
| Family : | MP |
|---|
Connections
| Connection Size : | G 3/8 in | Pressure Connection Size : | 3/8 in |
|---|---|---|---|
| Pressure Connection Type : | G |
Electrical
| Contact Function : | SPDT | Electric Connection : | Female Screwed cable entry |
|---|---|---|---|
| Electric Connection Size : | Pg13.5 | IP Class : | IP20 |
General Information
| Model Number : | 060B029891 | Type : | MP55A |
|---|
Logistical Information
| Commodity Code : | 90322000 | Country Of Origin : | IND |
|---|---|---|---|
| EAN : | 5702424499624 | Gross Weight : | 0.901 kg |
Measurements
| Weight : | 0.78 kg |
|---|
Pressure
| Diff Pressure Range : | 0.30-4.50 Bar | Max Operating Pressure : | 17.0 Bar |
|---|
Standards
| Approval : | CCC, CE, CMIM, EAC, LLC CDC EURO-TYSK, LVD, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Note : | Bellows max 100 °C/212 °F | Ambient Temperature Range : | -40-60 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| differential-pressure-switch-type-mp54-mp55-and-mp55a-ast-ai211986438834en-001001.pdf | Technical Literature | 1.56 MB | |
| eu-declaration-danfoss-eu-060-9680-ab-ast-id365934728357-0201.pdf | Conformity Declaration | 1.16 MB | |
| differential-pressure-control-types-mp-54-mp-55-mp-55a-ast-an211986434504en-000402.pdf | Installation Manual | 578.42 KB | |
| differential-pressure-switch-type-mp54-mp55-and-mp55a-ast-ai211986438834en-001002.pdf | Technical Literature | 1.52 MB | |
| electrical-safety-certificate-ul-e31024-ast-id365930080167-0201.pdf | Conformity Declaration | 5.22 MB | |
| manufacturer-s-declaration-danfoss-md-060-9639-ab-ast-id365946701621-0101.pdf | Conformity Declaration | 1.29 MB | |
| uk-declaration-danfoss-uk-060-9689-aa-ast-id408744339428-0101.pdf | Conformity Declaration | 1.03 MB |
