Description

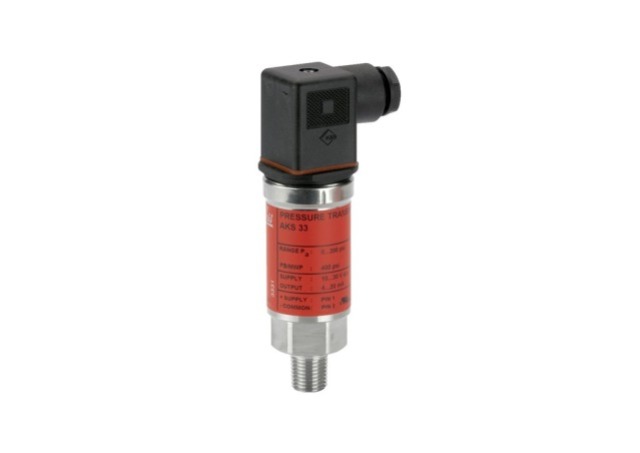

Sensor AKS 33 1/4 NPT, -1-34bar
Sensor AKS 33 1/4 NPT, -1- 34 Bar
Product number:
060G2103
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Additional Info
| Family : | AKS |
|---|
Connections
| Connection Size : | 1/4 in | Connection Type : | NPT |
|---|---|---|---|
| Pressure Connection Size : | 1/4 in | Pressure Connection Type : | NPT |
Electrical
| + Supply : | Pin 1 | - Common : | Pin 2 |
|---|---|---|---|
| Accuracy, Max [±FS%] : | 0.80 % | Accuracy, Typical [±FS%] : | 0.3 % |
| Electric Connection : | DIN-plug | Electric Connection Size : | Pg9 |
| High Clipping Level : | 22.40 | IP Class : | IP65 |
| Low Clipping Level : | 3.60 | Power Supply : | 10-30 V |
| Pulse-snubber : | No |
General Information
| Intrinsically Safe : | No | Model Number : | 060G2103 |
|---|---|---|---|
| Specification Key : | AKS 33-DG31-A1EC04-0 |
Inputs/Outputs
| Output Signal : | 4-20 mA | Output Signal Range : | 4-20 mA |
|---|
Logistical Information
| Commodity Code : | 90262020 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702422065982 | Gross Weight : | 0.18 kg |
Measurements
| Weight : | 0.15 kg |
|---|
Pressure
| Max Overload Pressure : | 55.0 Bar | Pressure Range : | -1.0-34.0 Bar |
|---|---|---|---|
| Pressure Reference : | Sealed gauge |
Sensors
| Max Response Time : | 4 ms |
|---|
Standards
| Approval : | ATEX, GOST POCC, cUR |
|---|
Temperature
| Ambient Temperature Range : | -40-85 °C | Compensated Temperature Range : | 0-80 °C |
|---|---|---|---|
| Medium Temperature Range : | -40-85 °C |
