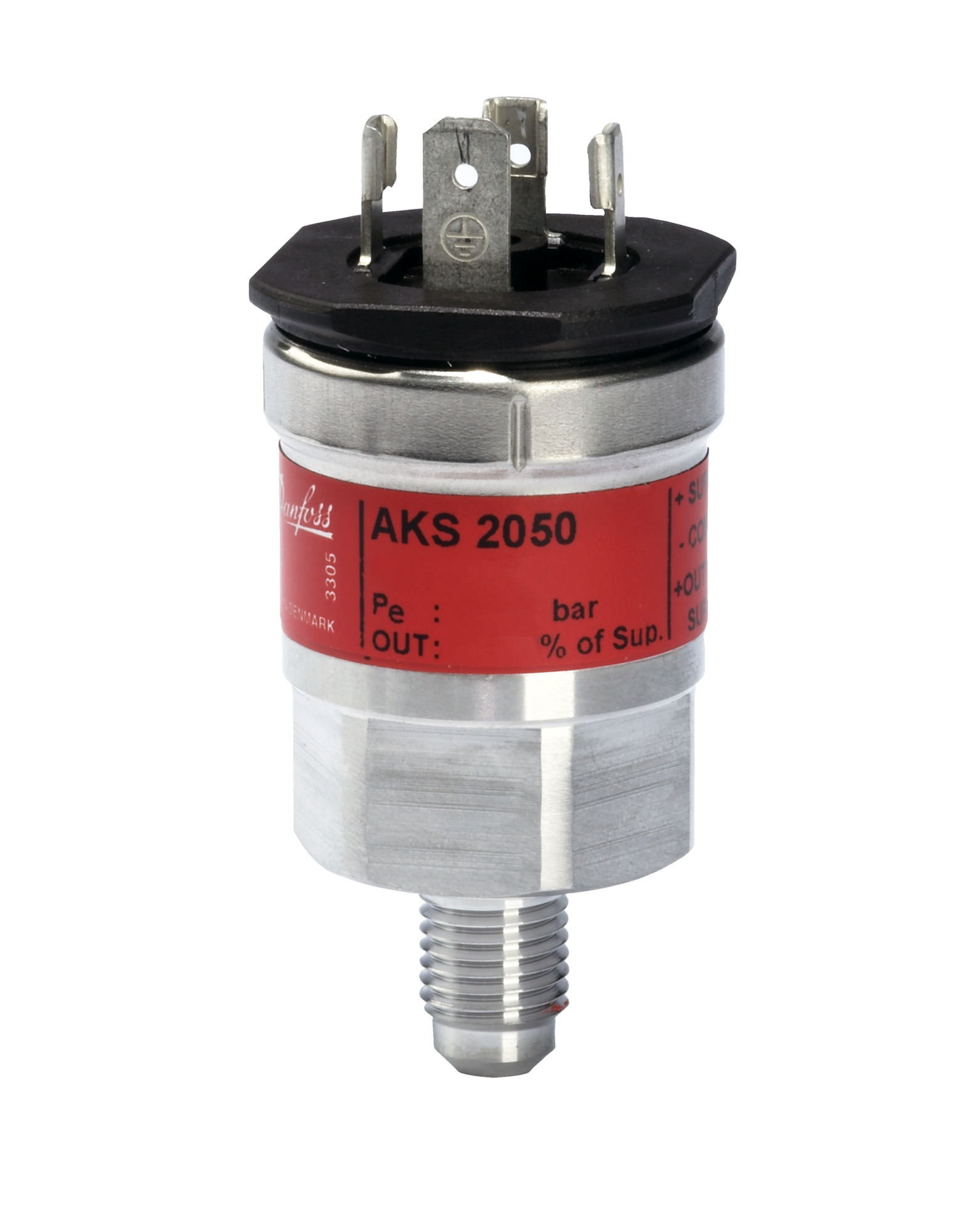

Danfoss AKS 2050 -1-159 Bar Pressure Transmitter for CO2
Item Number:
060G5752
| Application : | For EKC 414A1/331T, AK-CC, AK-PC |
|---|---|
| Power Supply : | 4.75-8 V |
| Product Group : | Mech Controls - Other |
General Information
| Application : | For EKC 414A1/331T, AK-CC, AK-PC |
|---|---|
| Approval : | ATEX, cUR |
| Intrinsically Safe : | No |
| Model Number : | 060G5752 |
| Product Group : | Mech Controls - Other |
| Specification Key : | AKS 2050-9736-A0AB06-0 |
Additional Info
| Family : | AKS |
|---|
Connections
| Connection Size : | 3/8" G |
|---|---|
| Connection Type : | G |
| Pressure Connection Size : | 3/8 in |
| Pressure Connection Type : | G |
Electrical
| + Output : | Pin 3 |
|---|---|
| + Supply : | Pin 1 |
| - Common : | Pin 2 |
| Accuracy, Max [±FS%] : | 1.00 % |
| Accuracy, Typical [±FS%] : | 0.5 % |
| Electric Connection : | DIN-plug |
| High Clipping Level : | 98.00 |
| IP Class : | IP65 |
| Low Clipping Level : | 4.00 |
| Power Supply : | 4.75-8 V |
| Pulse-snubber : | Yes |
Logistical Information
| Commodity Code : | 90262020 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702423275779 |
| Gross Weight : | 0.152 kg |
Measurements
| Weight : | 0.13 kg |
|---|
Pressure
| Max Overload Pressure : | 954.0 Bar |
|---|---|
| Pressure Range : | -1.0/159 Bar |
| Pressure Reference : | Sealed gauge |
Sensors
| Max Response Time : | 4 ms |
|---|
Temperature
| Ambient Temperature Range : | -40-85 °C |
|---|---|
| Compensated Temperature Range : | 0-80 °C |
| Medium Temperature Range : | -40-85 °C |
Product information
Sensor AKS 2050 G3/8A, -1-159bar
