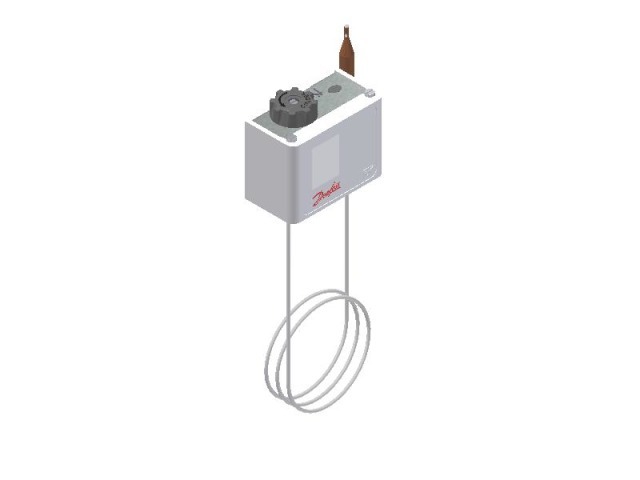

KP77 Temperature Control
Item Number:
060L112166
| Product Group : | Electronic Cont - Danfoss |
|---|
General Information
| Approval : | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL873, CS C22.2 |
|---|---|
| Charge Type : | Adsorption |
| Model Number : | 060L112166 |
| Product Group : | Electronic Cont - Danfoss |
| Serviceable : | No |
| Type : | KP77 |
Additional Info
| Family : | KP |
|---|
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating AC1 : | 16 A, 400 V |
| Contact Rating AC3 : | 16 A, 400 V |
| Contact Rating AC15 : | 10 A, 400 V |
| Contact Rating DC13 : | 12 A, 220 V |
| Contact Rating LR : | 112 A, 400 V |
| Electric Connection : | Rubber cable gland |
| Electric Connection Size : | 6-14 mm |
| Flex, Ferrules : | 0.5 - 1.5 mm² |
| Flex, No Ferrules : | 0.7 - 2.5 mm² |
| Fuse : | 16A |
| IP Class : | IP30 |
| Rated Impulse Voltage : | 4 kV |
| Solid/Stranded : | 0.75 - 2.5 mm² |
Logistical Information
| Commodity Code : | 90321080 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428014878 |
| Gross Weight : | 0.448 kg |
Measurements
| Capillary Tube Length : | 78 3/4 in, 2000 mm |
|---|---|
| Net Weight : | 0.37 kg |
| Weight : | 0.37 kg |
Pressure
| Differential Type : | Adjustable |
|---|
Sensors
| Sensor Size (Diameter x Length) : | 9.5x85 mm |
|---|---|
| Sensor Type : | Remote bulb |
Temperature
| Ambient Temperature : | -40-65 °C |
|---|---|
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min |
| Ambient Temperature Range : | -40-65 °C |
| Diff Max Range Setting : | 3.5-10.0 °C |
| Diff Min Range Setting : | 3.5-10.0 °C |
| Diff Type : | Adjustable |
| Diff at Max Range Setting : | 3.5-10.0 °C |
| Diff at Min Range Setting : | 3.5-10.0 °C |
| Max Ambient Temperature : | 65 °C |
| Max Sensor Temperature : | 130 °C |
| Max Temperature : | 60 °C |
| Min Ambient Temperature : | -40 °C |
| Min Temperature : | 20 °C |
| Temperature Range : | 20-60 °C |
