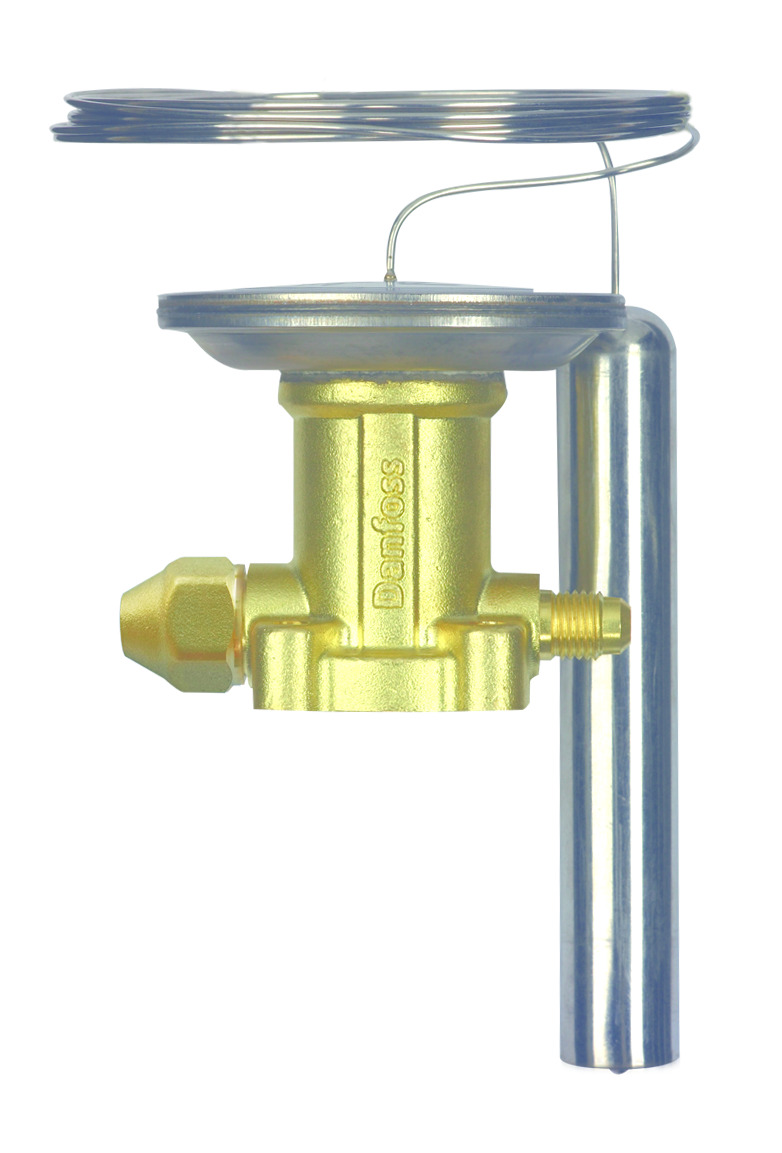

"Danfoss TE12 Power Assy R134A (wide range)"
Item Number:
067B3232
| Max Operating Pressure : | 28.0 Bar |
|---|---|
| Product Group : | Expansion Valves - Danfoss |
| Refrigerant : | R134a |
General Information
| Approval : | EAC, LLC CDC TYSK |
|---|---|
| Model Number : | 067B3232 |
| Product Group : | Expansion Valves - Danfoss |
| Type : | TE 12 |
Additional Info
| Family : | TE 5 - 55 |
|---|
Connections
| Equalization Connection Size : | 1/4 in |
|---|---|
| Equalization Connection Type : | Flare |
Logistical Information
| Commodity Code : | 84819000 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428149198 |
| Gross Weight : | 0.63 kg |
Material
| Body Material : | Brass |
|---|
Measurements
| Capillary Tube Length : | 118.0 in, 3000 mm |
|---|---|
| Net Weight : | 0.53 kg |
| Weight : | 0.53 kg |
Pressure
| Max Operating Pressure : | 28.0 Bar |
|---|---|
| Pressure Equalization : | External |
Refrigerant
| Refrigerant : | R134a |
|---|
Temperature
| Max Temperature : | 10 °C |
|---|---|
| Min Temperature : | -40 °C |
| Temperature Range : | -40-10 °C |
Product information
The TE 5 - TE 55 series expansion valve regulate the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability. The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.
