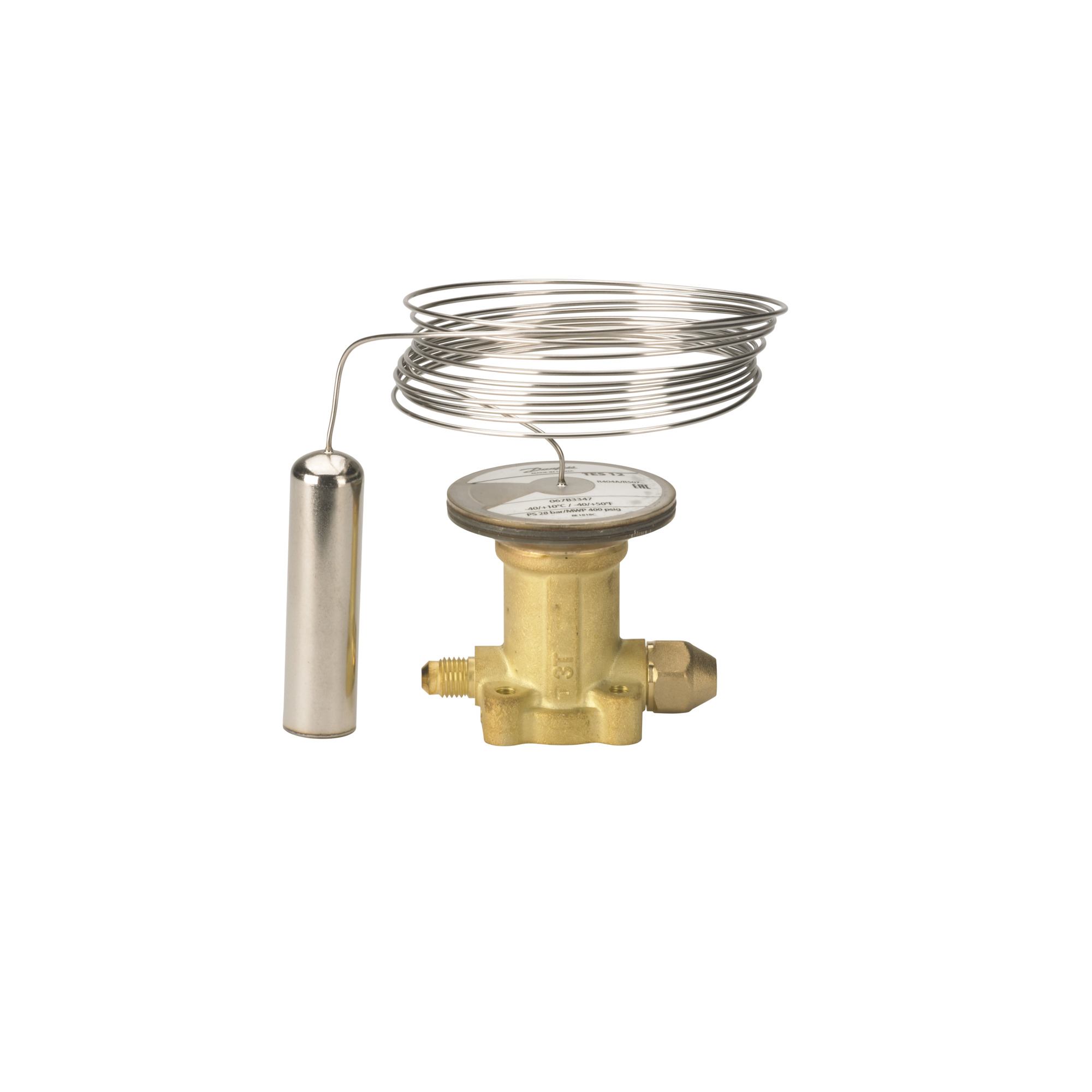

"Danfoss TE12 Power Assy R404A (wide range)"

Product number: 067B3347
PLEASE LOGIN TO SEE PRICES
Product Group : Expansion Valves - Danfoss
Description

The TE 5 - TE 55 series expansion valve regulate the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability. The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.

Product Group : Expansion Valves - Danfoss
Family : TE 5 - 55
Equalization Connection Size : 1/4 in Equalization Connection Type : Flare
Model Number : 067B3347 Type : TE 12
Commodity Code : 84819000 Country Of Origin : CHN
EAN : 5702428149006 Gross Weight : 0.634 kg
Body Material : Brass
Capillary Tube Length : 118.0 in, 3000 mm Net Weight : 0.53 kg
Weight : 0.53 kg
Max Operating Pressure : 28.0 Bar Pressure Equalization : External
Refrigerant : R404A, R507A
Approval : EAC, LLC CDC TYSK
Max Temperature : 10 °C Min Temperature : -40 °C
Temperature Range : -40-10 °C
