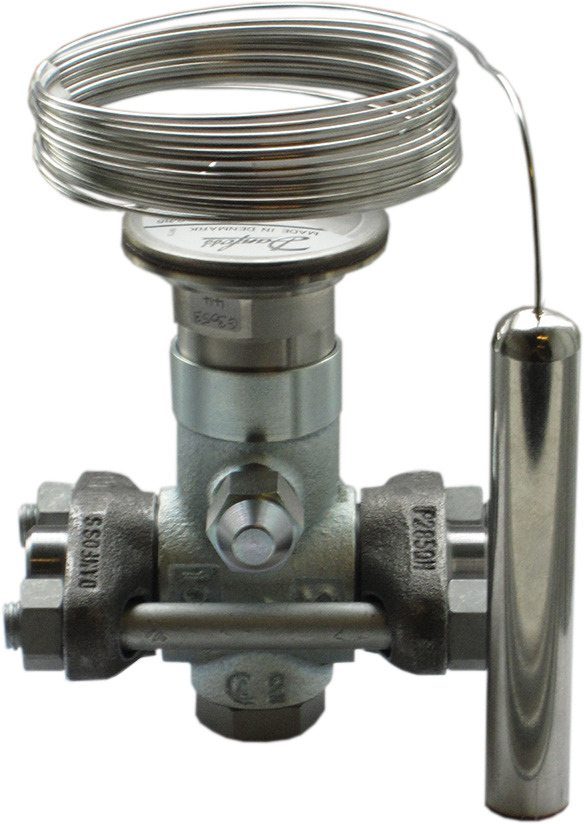

Danfoss TEA20-3 TX Valve -50/0C

Product number: 068G6002
PLEASE LOGIN TO SEE PRICES
Product Group : Industrial Controls - Expansion Valves
Description
TEA 20-3 Therm. Exp.Valve
Product Group : Industrial Controls - Expansion Valves
Additional Info : Gasket is non asbestos Family : TEA
Connection Size : 1/2 in Connection Type : Weld flange
Equalization Connection Type : Weld nipple 6.5 mm
Parts Included : Weld nipple Type : TEA 20-3
Commodity Code : 84818071 Country Of Origin : POL
EAN : 5702422040354 Gross Weight : 2.342 kg
Body Material : Cast iron
Capillary Tube Length : 192.0 in, 5000 mm Weight : 2.31 kg
Max Operating Pressure : 19.0 Bar Max Test Pressure : 28.5 Bar
Pressure Equalization : External
R717 Rated Capacity : 10.5 kW
Rated Capacity Conditions : Subcooling=4K, tcond=32 °C, tevap=15 °C
Refrigerant : R717
Approval : EAC
Max Bulb Temperature : 100 °C Superheat Setting : Adjustable
Temperature Range : -50-0 °C
Direction : Straightway Flow Direction Indicator : Embossed 1-way arrow
Fluid Group : 1

Accessory

Danfoss 10mm Flange Set (EVRA10/15)
Product Number: 027N1112
Manufacturer Code: 027N1112
PLEASE LOGIN TO SEE PRICES

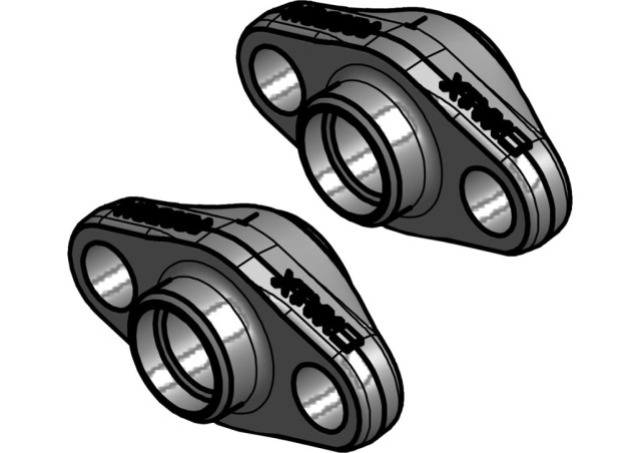

Danfoss 1/2" Butt Weld Flange Set
Product Number: 027N1115
Manufacturer Code: 027N1115
PLEASE LOGIN TO SEE PRICES
EVRA(T) 3-15 FLANGES 3/4"
Product Number: 027N1120
Manufacturer Code: 027N1120
PLEASE LOGIN TO SEE PRICES

Spare Part

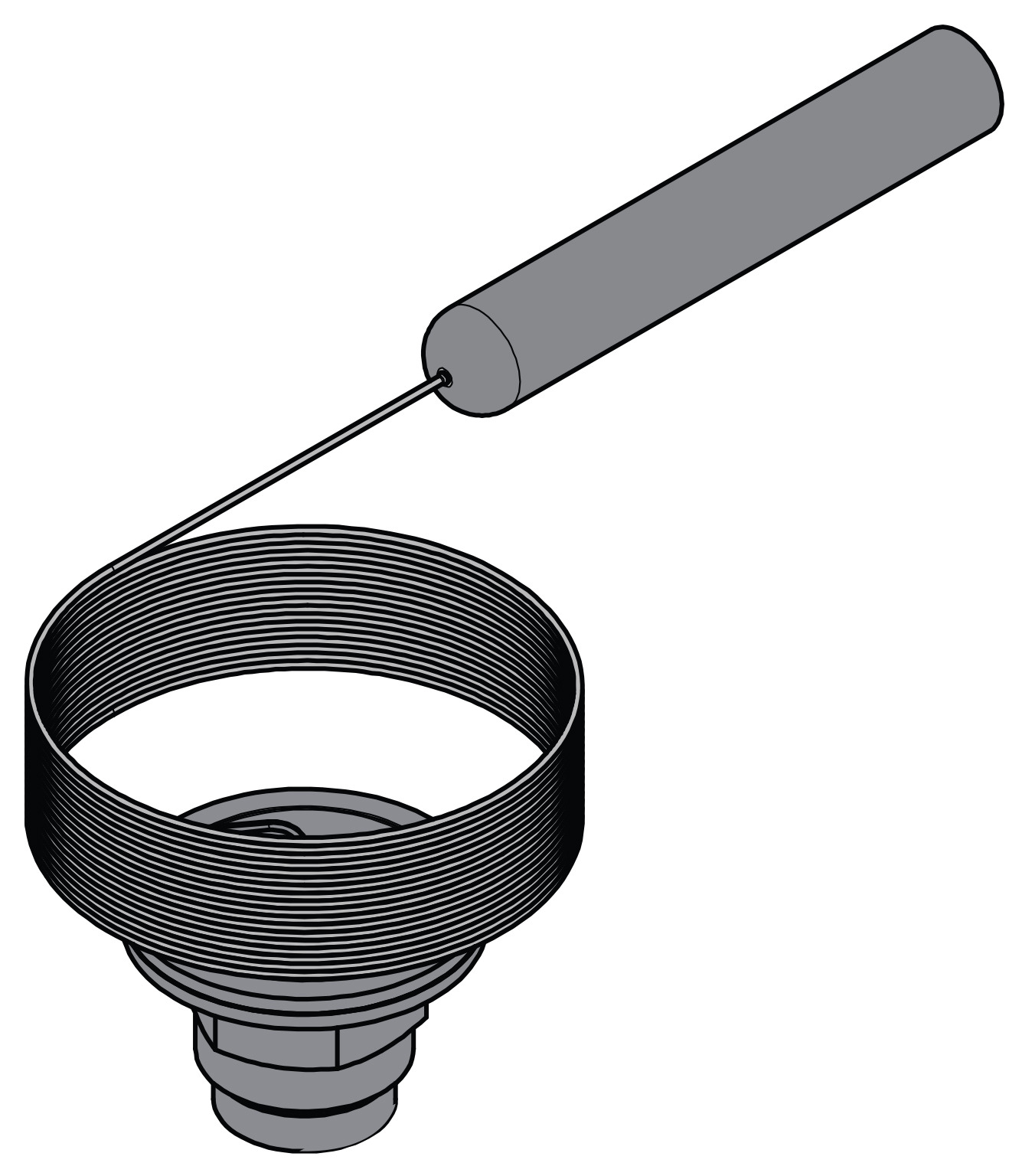

TEA -50/0 Power Element
Product Number: 068G3250
Manufacturer Code: 068G3250
PLEASE LOGIN TO SEE PRICES
3 TR Orifice
Product Number: 068G2052
Manufacturer Code: 068G2052
PLEASE LOGIN TO SEE PRICES
