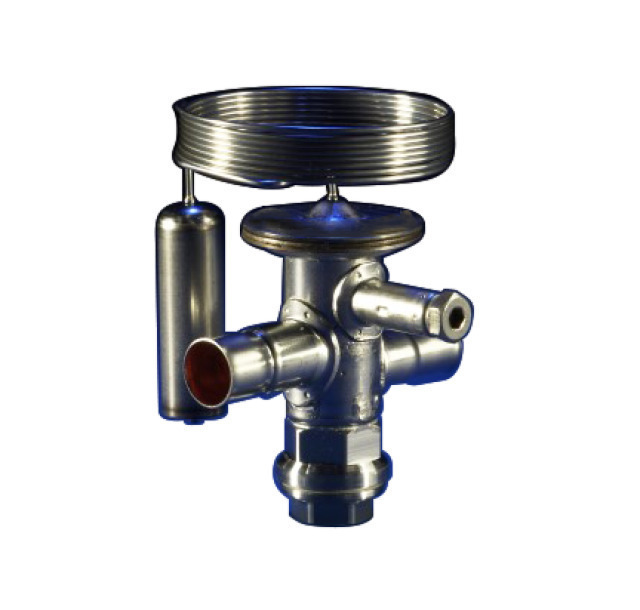

"Danfoss TX Valve TUAE R404A"

Product number: 068U2287
PLEASE LOGIN TO SEE PRICES
Product Group : Expansion Valves - Danfoss
Description

The thermostatic expansion valves TUA/TUAE, TCAE with exchangeable orifice, TUB/TUBE/ TCBE with fixed orifice and TUC/TUCE/TCCE with fixed orifice and fixed superheat setting, are made of stainless steel and therefore especially well-suited to refrigeration systems in the food industry and where aggressive environments exist.

These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.

Product Group : Expansion Valves - Danfoss
Family : TU/TC
Connection Size : 3/8 x 1/2 x 1/4 in Equalization Connection Size : 1/4 in
Equalization Connection Type : Solder, ODF Inlet Connection Size : 3/8 in
Inlet Type : Solder, ODF Outlet Connection Size : 1/2 in
Outlet Type : Solder, ODF
Model Number : 068U2287 Type : TUAE
Commodity Code : 84818059 Country Of Origin : DNK
EAN : 5702422180791 Gross Weight : 0.186 kg
Body Material : Stainless Steel Connection Material : Steel/Copper
Capillary Tube Length : 59.0 in, 1500 mm Net Weight : 0.15 kg
Weight : 0.15 kg
Max Operating Pressure : 34.0 Bar Pressure Equalization : External
Refrigerant : R404A, R507A
Approval : EAC, LLC CDC TYSK, UL
Max Temperature : 10 °C Min Temperature : -40 °C
Static Superheat : 4 °C Superheat Setting : Adjustable
Temperature Range : -40-10 °C
Direction : Straightway Flow : Bi-flow with orifice 1-8
Flow Direction : Bi-flow with orifice 1-8 Flow Direction Indicator : Laser engraved 1-way arrow
Fluid Group : 2

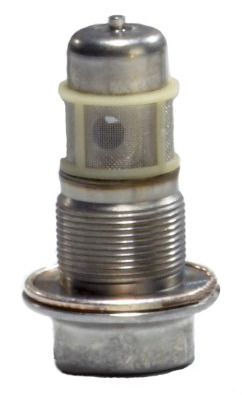

Spare Part

TUA Orifice No 0 Danfoss
Product Number: 068U1030
Manufacturer Code: 068U1030
TUA Orifice No 1 Danfoss
Product Number: 068U1031
Manufacturer Code: 068U1031
TUA Orifice No 2 Danfoss
Product Number: 068U1032
Manufacturer Code: 068U1032
TUA Orifice No 3 Danfoss
Product Number: 068U1033
Manufacturer Code: 068U1033
TUA Orifice No 4 Danfoss
Product Number: 068U1034
Manufacturer Code: 068U1034
TUA Orifice No 5 Danfoss
Product Number: 068U1035
Manufacturer Code: 068U1035
TUA Orifice No 6 Danfoss
Product Number: 068U1036
Manufacturer Code: 068U1036
TUA Orifice No 7 Danfoss
Product Number: 068U1037
Manufacturer Code: 068U1037
TUA Orifice No 8 Danfoss
Product Number: 068U1038
Manufacturer Code: 068U1038
TUA Orifice No 9 Danfoss
Product Number: 068U1039
Manufacturer Code: 068U1039
