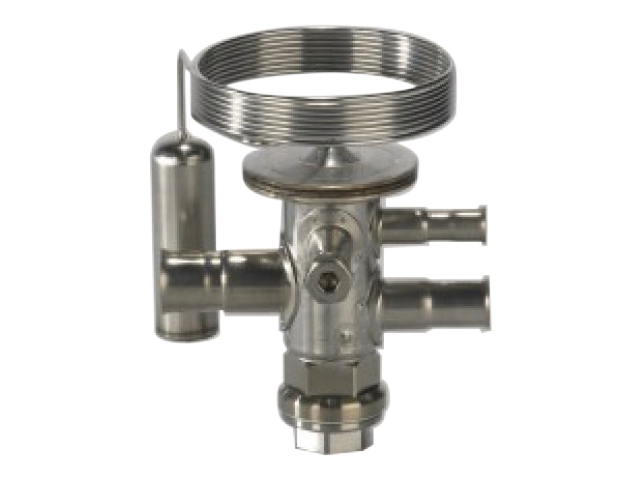

"Danfoss TX Valve TUAE R404A (MOP)"

Product number: 068U2295
PLEASE LOGIN TO SEE PRICES
Product Group : Expansion Valves - Danfoss
Description

The thermostatic expansion valves TUA/TUAE, TCAE with exchangeable orifice, TUB/TUBE/ TCBE with fixed orifice and TUC/TUCE/TCCE with fixed orifice and fixed superheat setting, are made of stainless steel and therefore especially well-suited to refrigeration systems in the food industry and where aggressive environments exist.

These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.

Product Group : Expansion Valves - Danfoss
Family : TU/TC
Equalization Connection Size : 1/4 in Equalization Connection Type : Solder, ODF
Inlet Connection Size : 3/8 in Inlet Type : Solder, ODF
Outlet Connection Size : 1/2 in Outlet Type : Solder, ODF
Type : TUAE
Commodity Code : 84818059 Country Of Origin : DNK
EAN : 5702422182696 Gross Weight : 0.188 kg
Body Material : Stainless Steel Connection Material : Steel/Copper
Capillary Tube Length : 59.0 in, 1500 mm Weight : 0.15 kg
Max Operating Pressure : 34.0 Bar Pressure Equalization : External
Refrigerant : R404A, R507A
Approval : EAC, LLC CDC TYSK, UL
Superheat Setting : Adjustable Temperature Range : -40-10 °C
Direction : Straightway Flow Direction : Single-flow
Flow Direction Indicator : Laser engraved 1-way arrow Fluid Group : 2
MOP : 15 °C
