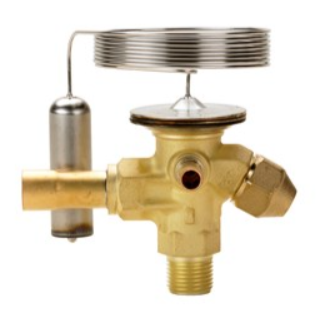

Danfoss TX Valve TEN2 R134A (Flare)

Product number: 068Z3348

PLEASE LOGIN TO SEE PRICES

Further products

Product Group :	Expansion Valves - Danfoss

Description

Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

Large temperature range
- Equally applicable to freezing, refrigeration and air conditioning applications.
Interchangeable orifice assembly
- easy storage
- easy capacity matching
- better service.
- easy cleaning and replacement of filter
Rated capacities from 1 to 20.5 kW / 0.3 to 5.8 TR for R407C
Can be supplied with MOP (Max. Operating Pressure).
- Protects the compressor motor against excessive evaporating pressure during normal operation
Stainless steel bulb and Danfoss patented bulb strap
- Fast and easy to install
- Good temperature transfer from pipe to bulb
Design protected

General

Product Group :	Expansion Valves - Danfoss

Compressor

PED Category :	Art. 4, par. 3

Connections

Connection Type :	Flare	Equalization Connection Size :	1/4 in
Equalization Connection Type :	Flare	Inlet Connection Size :	3/8 in
Inlet Type :	Flare	Outlet Connection Size :	1/2 in
Outlet Type :	Flare

General Information

Model Number :	068Z3348	Type :	TE 2

Logistical Information

Commodity Code :	84818079	Country Of Origin :	DNK
EAN :	5702422124443	Gross Weight :	0.316 kg
Packaging Volume :	0.489 L

Material

Body Material :	Brass	Connection Material :	Brass

Measurements

Capillary Tube Length :	59.0 in, 1500 mm	Net Weight :	0.29 kg

Pressure

Max Operating Pressure :	34.0	Pressure Equalization :	External

Rated Capacity

Rated Capacity Conditions, Range N :	OS=6K, tcond=38 ÂºC, tevap=4.4 ÂºC, tliq=37 ÂºC

Refrigerant

Refrigerant :	R134a/R513A

Standards

Approval :	EAC, LLC CDC TYSK

Temperature

Max Temperature :	10 °C	Min Temperature :	-40 °C
Temperature Range :	(N) -40-10 °C

Thermodynamic characteristics

Static Superheat :	4.00 Â°C °C	Superheat Setting :	Adjustable

Valves

Direction :	Angleway	Flow Direction :	Bi-flow with orifice 01-05
Flow Direction Indicator :	Embossed 1-way arrow	Fluid Group :	2

File name	Document Type	Extension	Size
manufacturer-s-declaration-danfoss-md-068u9616-03-ast-id365946718634-0201.pdf	Conformity Declaration	pdf	266.93 KB
data-sheet-thermostatic-expansion-valve-type-t-2-and-te-2-ast-ai241486443133en-001401.pdf	Technical Literature	pdf	1.64 MB
installation-guide-solder-adaptor-for-t-2-te-2-ast-an10278641475500-000101.pdf	Installation Manual	pdf	159.03 KB
eu-declaration-danfoss-eu-068u9904-03-ast-id365935396441-0201.pdf	Conformity Declaration	pdf	54.95 KB
manufacturer-s-declaration-danfoss-md-068u9615-10-ast-id365946712629-0401.pdf	Conformity Declaration	pdf	454.44 KB
