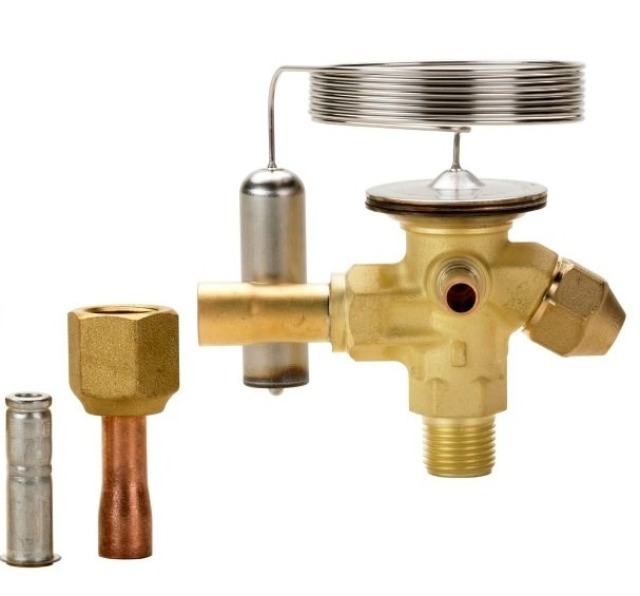

Danfoss TX Valve TEN2 R134A S

Product number: 068Z3385
PLEASE LOGIN TO SEE PRICES
Product Group : Expansion Valves - Danfoss
Description

Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.

  • Large temperature range
    • Equally applicable to freezing, refrigeration and air conditioning applications.
  • Interchangeable orifice assembly
    • easy storage
    • easy capacity matching
    • better service.
    • easy cleaning and replacement of filter
  • Rated capacities from 1 to 20.5 kW / 0.3 to 5.8 TR for R407C
  • Can be supplied with MOP (Max. Operating Pressure).
    • Protects the compressor motor against excessive evaporating pressure during normal operation
  • Stainless steel bulb and Danfoss patented bulb strap
    • Fast and easy to install
    • Good temperature transfer from pipe to bulb
  • Design protected
Product Group : Expansion Valves - Danfoss
Family : T2
Equalization Connection Size : 1/4 in Equalization Connection Type : Solder
Inlet Connection Size : 3/8 in Inlet Type : Flare
Outlet Connection Size : 1/2 in Outlet Type : Solder
Type : TE 2
Commodity Code : 84818079 Country Of Origin : DNK
EAN : 5702422124504 Gross Weight : 0.302 kg
Body Material : Brass Connection Material : Brass, Copper
Capillary Tube Length : 59.0 in, 1500 mm Net Weight : 0.28 kg
Weight : 0.28 kg
Max Operating Pressure : 34.0 Bar Pressure Equalization : External
Refrigerant : R134a, R513A
Approval : EAC, LLC CDC TYSK
Max Temperature : 10 °C Min Temperature : -40 °C
Static Superheat : 4 °C Superheat Setting : Adjustable
Temperature Range : -40-10 °C
Direction : Angleway Flow : Bi-flow with orifice 01-05
Flow Direction : Bi-flow with orifice 01-05 Flow Direction Indicator : Embossed 1-way arrow
Fluid Group : 2
